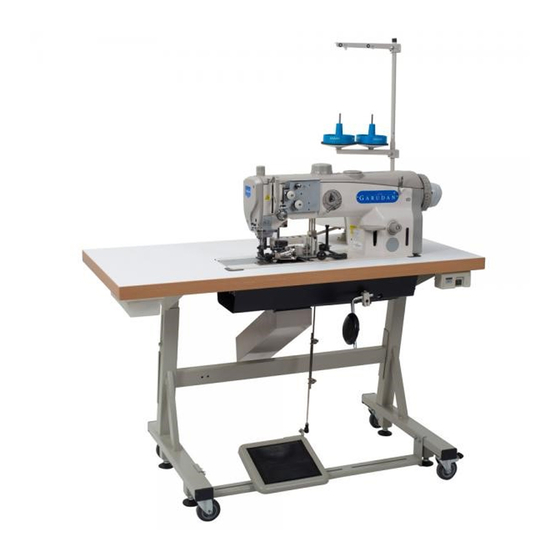

User manual
GF-139-443 MH/L33
ANITA B s.r.o.
Průmyslová 2453/7
680 01 Boskovice
Czech Republic
tel: +420 516 454 774
+420 516 453 496
fax: +420 516 452 751
e-mail:
info@anita.cz
MP02900EN_181023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GF-139-443 MH/L33 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Garudan GF-139-443 MH/L33

Summary of Contents for Garudan GF-139-443 MH/L33

  • Page 1 User manual GF-139-443 MH/L33 ANITA B s.r.o. Průmyslová 2453/7 680 01 Boskovice Czech Republic tel: +420 516 454 774 +420 516 453 496 fax: +420 516 452 751 e-mail: info@anita.cz MP02900EN_181023...
  • Page 2 © ANITA VERSION CREATED ON APPROVED BY MP02900EN_181023 23. 10. 2018 Jakub Lžičař All rights reserved. Property of Anita B s.r.o. and protected by copyright. The use of this content without written consent of Anita B s.r.o. is prohibited. Copyright © Anita B s.r.o. (2018) MP02900EN_181023...

  • Page 3: Table Of Contents

    © ANITA Content 1. Main Shaft & Hand Wheel Position ..................4 2. Position Hand Wheel ......................5 3. Feed System Position ......................6 4. Set The Backtracking Overlap ....................6 5. Adjust The Position of Feed Dog in the Needle Plate Groove ..........7 6.

  • Page 4: Main Shaft & Hand Wheel Position

    © ANITA 1. MAIN SHAFT & HAND WHEEL POSITION 1. Put the stick ① in the accessory to the hole ⑤ of the machine, the angle of the shaft position. 2. The stick ① on its one side is 3mm, another side is 5 mm. in 3 mm, insert the groove ③...

  • Page 5: Position Hand Wheel

    © ANITA 2. POSITION HAND WHEEL 1. Use one side position shaft of the stick, loose hand wheel ② , tighten the screw ① , turn ② ② ③ the hand wheel and make the “0” dial on the hand wheel aim at the mark tighten the hand wheel ②...

  • Page 6: Feed System Position

    © ANITA 3. FEED SYSTEM POSITION Turn the hand wheel ⑤ and make the number “0” on the dial ⑥ aim at the mark ⑧ , at this time the feed system is in the state of stillness. It can adjust through the following ways if it has some error.

  • Page 7: Adjust The Position Of Feed Dog In The Needle Plate Groove

    © ANITA 5. ADJUST THE POSITION OF FEED DOG IN THE NEEDLE PLATE GROOVE 1. Loosen the screw ③ ④ ⑤ ⑥ move the shaft ① of feed left and right to keep the feed dog in the center of needle plate groove (add the picture of needle plate and the feed dog), then tighten the screw ③...

  • Page 8: The Adjustment Of Feed

    © ANITA 6. THE ADJUSTMENT OF FEED 1. Turn the hand wheel to 190°, press the hand knob of backtracking, no movement of feed shaft, if it moves, loosen the screw ① , change the angles till no movement, then tighten screw ①...

  • Page 9: Feed Dog Adjust

    © ANITA 7. FEED DOG ADJUST 1. Adjust the feed up and down right, loosen screw ① on the line with the feed pin ② , then tighten screw ① 2. The adjustment of feed dog ③ height to the needle plate ④...

  • Page 10: The Adjustment Of Needle Pole Frame

    © ANITA 9. THE ADJUSTMENT OF NEEDLE POLE FRAME The distance between the hole center in the bar of the needle pole frame and the face of the machine is 123.6mm, loosen the screw ③ ④ 10. THE NEEDLE IS IN THE CENTRER OF FEED DOG Loosen the screws ③...

  • Page 11: Forward And Back Position Of Sewing Needle

    © ANITA 11. FORWARD AND BACK POSITION OF SEWING NEEDLE The needle ① is in the front and back position of feed dog, Loosen the screw ③ , move the needle ② to keep the needle in the center of feed dog, then tighten the screw ③...

  • Page 12: The Needle Location

    © ANITA 13. THE NEEDLE LOCATION Loosen the screw ③ , move the needle bar ② to keep the space between the top side of needle ④ hole and the tine of large hook at 1.5~2 mm. 14. THE ADJUSTMENT BETWEEN LARGE HOOK AND NEEDLE Loosen the screw ①...

  • Page 13: The Adjustment Of Needle Guard

    © ANITA 15. THE ADJUSTMENT OF NEEDLE GUARD Make sure that there is clearance between needle guard ② needle ③ , then adjust the gap between the concave of needle ③ and the tine ⑥ of big hook ⑤ which is 0.05~0.1mm, make the needle guard ②...

  • Page 14: The Adjustment Of The Middle Presser And Presser Foot

    © ANITA 17. THE ADJUSTMENT OF THE MIDDLE PRESSER AND PRESSER FOOT Loosen screw ③ , the hand wheel is 95°, keep the middle presser and presser foot all of a lump, then tighten screw ③ . Check again, the number “3” on the hand knob ⑤...

  • Page 15: Check The Pressure Of Presser Foot

    © ANITA 19. CHECK THE PRESSURE OF PRESSER FOOT Turn the hand wheel ① counterclockwise, decrease the pressure or increase the pressure. 20. PRESSER DRIVE ADJUST Loosen the screw ③ , keep the clearance between driver ① and presser bracket ②...

  • Page 16: Adjust The Tension Of Raise Thread And Stroke

    © ANITA 22. ADJUST THE TENSION OF RAISE THREAD AND STROKE Loosen screw ② , turn the uphold frame ○4 clockwise, the stroke of raise thread ① becomes short, the opposite is long. The raise thread ① becomes tight when turn the bushing ③...

  • Page 17: Adjusting The Upper Knife

    © ANITA 24. ADJUSTING THE UPPER KNIFE 1. Lower the upper knife set lever ① , and turn the machine pulley to completely lower the upper knife ② 2. Loosen the screws ○4 for the knife rod guide ② 3. Move the upper knife ②...
  • Page 19 Spare Parts List GF-139-443 MH/L33 ANITA B s.r.o. Průmyslová 2453/7 680 01 Boskovice Czech Republic tel: +420 516 454 774 +420 516 453 496 fax: +420 516 452 751 e-mail: info@anita.cz MP02900EN_180606...
  • Page 20 © ANITA VERSION CREATED ON APPROVED BY MP02900EN_180606 06. 06. 2018 Jakub Lžičař All rights reserved. Property of Anita B s.r.o. and protected by copyright. The use of this content without written consent of Anita B s.r.o. is prohibited. Copyright © Anita B s.r.o. (2018) MP02900EN_180606...
  • Page 21 © ANITA Obsah A. Arm Bed and its Accessories 1 (1/2) ..................4 A. Arm Bed and its Accessories 1 (2/2) ..................6 A. Arm Bed and its Accessories 2 ....................8 B. Upper Shaft & Lower Shaft Mechanism ................10 C.

  • Page 22: Arm Bed And Its Accessories 1 (1/2)

    © ANITA A. ARM BED AND ITS ACCESSORIES 1 (1/2) MP02900EN_180606...
  • Page 23 © ANITA A. ARM BED AND ITS ACCESSORIES 1 (1/2) Ref.No Parts No. Name of parts Description Note A1019-0A Rivet AC1021-3A Tension Spring AC1034-3A Adjusting Nut AC1035-3A Thread Guide Disk AC1042-3A Spacer Partition Ring AH1010-0A Upside Lid AH1012-2A Transverse Lid EP1015-2A Sign ER1085-0A...
  • Page 24 © ANITA © ANITA A. ARM BED AND ITS ACCE ARM BED AND ITS ACCE SSORIES 1 (2/2) MP02900EN_180606...

  • Page 25: Arm Bed And Its Accessories 1 (2/2)

    © ANITA A. ARM BED AND ITS ACCESSORIES 1 (2/2) Ref.No Parts No. Name of parts Description Note ZMB05011 Screw (M5-0.8x40) ZMB05032 Screw (M5-0.8x12) ZMB05036 Screw (M5-0.8x8) ZMB05047 Screw (M5-0.8x16) ZMB05051 Screw (M5-0.8x25) ZMC04029 Screw (M4-0.7x8) ZMC05008C Screw (M5-0.8x12) ZMG05023 Screw (M5-0.8x6.3) ZMH04003 Screw (M4-0.7x5)
  • Page 26 © ANITA A. ARM BED AND ITS ACCESSORIES 2 MP02900EN_180606...
  • Page 27 © ANITA A. ARM BED AND ITS ACCESSORIES 2 Ref.No Parts No. Name of parts Description Note AH1360-0B Upper Lid Asm. FN1362-0A Rotate Spanner FN1363-0A Spring FN1365-1A Cam Seat FN1366-1A Dial Asm. FN1367-0A Drive Cam FN1368-0A Shockproof Mat OBM00080 Steel Ball OPP0060300 O-ring SEN157055A...

  • Page 28: Upper Shaft & Lower Shaft Mechanism

    © ANITA B. UPPER SHAFT & LOWER SHAFT MECHANISM MP02900EN_180606...
  • Page 29 © ANITA B. UPPER SHAFT & LOWER SHAFT MECHANISM Ref.No Parts No. Name of parts Description Note AH1100-0A Upper Shaft AH1101-0A Cover Plate AH1104-0A Hand Wheel AH1105-0A Strap Tray AH1320-0B Strap Wheel (Upper) FN1322-0A Strap AH4010-0A Lower Shaft BB6004ZZ Bearing BB6005ZZ Bearing BB6202ZZ...

  • Page 30: Needle Bar & Take-Up Lever Mechanism

    © ANITA C. NEEDLE BAR & TAKE-UP LEVER MECHANISM MP02900EN_180606...
  • Page 31 © ANITA C. NEEDLE BAR & TAKE-UP LEVER MECHANISM Ref.No Parts No. Name of parts Description Note AH1110-0A Shaft AH1335-0A Needle Bar Agitate Arm AH1337-0A Needle Bar Agitate Arm Asm. AH4043-0A BB-608ZZ Bearing FN1060-0A Thread Take-up Lever FN1061-0B Thread Take-up Lever Pin FN1064-0A Thread Take-up Lever Connecting FN1066-0A...

  • Page 32: Upper Thread Tension Regulator Mechanism

    © ANITA D. UPPER THREAD TENSION REGULATOR MECHANISM MP02900EN_180606...
  • Page 33 © ANITA D. UPPER THREAD TENSION REGULATOR MECHANISM Ref.No Parts No. Name of parts Description Note AB1026-0A Shaft AC1021-0A Thread Guide Spring AC1023-0A Thread Eyelet Tray AC1030-0A Thread Guide Disk Washer AC1031-0A Thread Guide Disk Washer AC1034-1A Adjusting Nut AG1028-0A E1021-2A Adjusting Spring E1025-2A...

  • Page 34: Presser Foot Bar Mechanism 1 (1/2)

    © ANITA E. PRESSER FOOT BAR MECHANISM 1 (1/2) MP02900EN_180606...
  • Page 35 © ANITA E. PRESSER FOOT BAR MECHANISM 1 (1/2) Ref.No Parts No. Name of parts Description Note AH1273-0A Bushing AH1310-0A Shaft AH1313-0A Shaft BB6806ZZ Bearing FN1115-0A Bushing FN1180-0A Connecting Rod FN1181-0A Presser Bar FN1183-0F Presser Bar Bushing Asm. FN1184-0B Spring FN1191-0B Adjust Screw FN1235-0J...
  • Page 36 © ANITA © ANITA E. PRESSER FOOT BAR MEC PRESSER FOOT BAR MEC HANISM 1 (2/2) MP02900EN_180606...

  • Page 37: Presser Foot Bar Mechanism 1 (2/2)

    © ANITA E. PRESSER FOOT BAR MECHANISM 1 (2/2) Ref.No Parts No. Name of parts Description Note FN1315-0A Spring FN1318-0A Gas Jar Connect Asm. FN4047-1F Reverse Block FN6130-0J Holder RE000050 E-ring RE000101 E-ring TC16012250 Collar WA060048 Washer WH216005 Washer XA150125 Oil Wick XB400105 Oil Felt...
  • Page 38 © ANITA E. PRESSER FOOT BAR MECHANISM 2 MP02900EN_180606...
  • Page 39 © ANITA E. PRESSER FOOT BAR MECHANISM 2 Ref.No Parts No. Name of parts Description Note AH1153-0A Holder AH1200-0A Presser Guide Shaft Asm. AH1201-0A Presser Guide Block AH1204-0A Hand Lifter Lever AH1205-0B Hand Lifter Cam AH1206-0A Restrict Block AH1207-0A Presser Guide Crank Asm. FN1155-0B Connecting Rod FN1203-0A...

  • Page 40: Bobbin Covers Mechanism

    © ANITA F. BOBBIN COVERS MECHANISM MP02900EN_180606...
  • Page 41 © ANITA F. BOBBIN COVERS MECHANISM Ref.No Parts No. Name of parts Description Note 3450322000 Friction Wheel AH3217-0A Bobbin Winder Seat AH3221-0A Winder Driving Wheel BN060910 Bearing FN1492-0A Spring FN3210-0A Winder Driving Asm. FN3212-0A Spring FN3213-1A Winder Driving Shaft FN3214-0A Bobbin Winder Secant Sword FN3215-0A Winder Driving Support...

  • Page 42: Stitch Length Regulating Mechanism

    © ANITA G. STITCH LENGTH REGULATING MECHANISM MP02900EN_180606...
  • Page 43 © ANITA G. STITCH LENGTH REGULATING MECHANISM Ref.No Parts No. Name of parts Description Note AC1287-3A Bushing AG1390-0A Shaft AG1391-0A Bushing AG1392-0A Bushing AH1171-0A Reverse Stitching Handle AH1173-0A Reverse Stitching Pole AH1215-0A Feed Regulator AH1225-0A Dial Asm. FN1172-0A Spring FN1216-0A Shaft FN1217-0A Spring...

  • Page 44: Plane Feed Mechanism

    © ANITA H. PLANE FEED MECHANISM MP02900EN_180606...
  • Page 45 © ANITA H. PLANE FEED MECHANISM Ref.No Parts No. Name of parts Description Note AH1255-0A Bushing AH1256-0A Bushing AH1257-0A Bushing AH1258-0A Bushing AH4045-0A Lower Feed Driving Asm. AH4151-0A Shaft BB6806ZZ Bearing FN1268-0A Oil Wick Fix Board FN1270-0A Bushing FN1271-0A Bushing FN1274-0A FN1275-0A FN1277-0A...

  • Page 46: Upper & Lower Feed Mechanism

    © ANITA I. UPPER & LOWER FEED MECHANISM MP02900EN_180606...
  • Page 47 © ANITA I. UPPER & LOWER FEED MECHANISM Ref.No Parts No. Name of parts Description Note AH1256-0A Bushing AH4030-0A Shaft FN1115-0A Bushing FN4014-0A Feed Platform Connecting Rod FN4015-0A Agitate Crank Asm. Upper Lower Feed Deflection FN4016-0J Center Asm. FN4019-0A Crank FN4020-0A FN4050-1F Feed Platform...

  • Page 48: Hook Post Mechanism (Left) (1/2)

    © ANITA J. HOOK POST MECHANISM (LEFT) (1/2) MP02900EN_180606...
  • Page 49 © ANITA J. HOOK POST MECHANISM (LEFT) (1/2) Ref.No Parts No. Name of parts Description Note 86721851D0 Hook Asm. AG3017-0A Collar AH4001-0A Shaft AH6016-0B Rubber BB3002VV Bearing BB3018VV Bearing BB-608ZZ Bearing FN4004-0A Bushing FN4005-0A Retaining Ring FN4007-0B Shaft FN4009-0B Gear Asm.(Big) FN4024-0A Shaft FN4025-0A...
  • Page 50 © ANITA © ANITA J. HOOK POST MECHANISM HOOK POST MECHANISM (LEFT) (2/2) MP02900EN_180606...

  • Page 51: Hook Post Mechanism (Left) (2/2)

    © ANITA J. HOOK POST MECHANISM (LEFT) (2/2) Ref.No Parts No. Name of parts Description Note WA049013 Washer WA069007 Washer WA080033 Washer WH222001 Washer ZMA10003 Screw (M10-1.0x9) ZMH06008 Screw (M6-1.0x6) ZMH06015 Screw (M6-1.0x5) ZMH06037 Screw (M6-1.0x10) ZMJ04001 Screw (M4-0.7x8) ZMJ04008 Screw (M4-0.7x6) ZMJ06004 Screw (M6-1.0x20)

  • Page 52: Folder Mechanism (1/2)

    © ANITA K. FOLDER MECHANISM (1/2) MP02900EN_180606...
  • Page 53 © ANITA K. FOLDER MECHANISM (1/2) Ref.No Parts No. Name of parts Description Note 4710161600 Handle A1130-0A Spring BN091210 Bearing BN323713 Bearing BNHK1516 Bearing BW-GE-8E Bearing EJ6058-0J Folder Rocking EJ6059-3A Plate EJ6060-0J Folder Support EJ6061-3A Plate EJ6062-3A Folder Arm FN1261-0F Shaft FN1262-0J Crank Asm.
  • Page 54 © ANITA © ANITA K. FOLDER MECHANISM (2/ FOLDER MECHANISM (2/ 2) MP02900EN_180606...

  • Page 55: Folder Mechanism (2/2)

    © ANITA K. FOLDER MECHANISM (2/2) Ref.No Parts No. Name of parts Description Note FN6183-0J Moving Knife Cover FN6185-0J Moving Knife RE000070 E-ring WA040016 Washer WA050003 Washer XB206003 Oil Felt YA032235 YD030018 Spring Pin ZMB05039 Screw (M5-0.8x18) ZMD05014 Screw (M5-0.8x8) ZMG06051 Screw (M6-1.0x10) ZMH06008...

  • Page 56: Lubricating Mechanism

    © ANITA L. LUBRICATING MECHANISM MP02900EN_180606...
  • Page 57 © ANITA L. LUBRICATING MECHANISM Ref.No Parts No. Name of parts Description Note FN1272-0A Nail FN4470-0A Pump Asm. FN4477-0B Plate FN4478-0B Spring FN4481-0A Plate FN4483-0A Oil Felt FN4484-0A Oil Fence Plate FN4490-0A Oil Fence Plate FN6610-0A Plate FN6640-0A Plate RU408-11 Wiring Button RU408-18 Wiring Button...

  • Page 58: Accessories 1

    © ANITA M. ACCESSORIES 1 MP02900EN_180606...
  • Page 59 © ANITA M. ACCESSORIES 1 Ref.No Parts No. Name of parts Description Note 8370910900 Vinyl Cover A7010-0A Screw Driver (Small) A7010-0Z Screw Driver Asm. A7010-1A Screw Driver (Middle) A7010-2A Screw Driver (Large) A7012-2A Oilier FN6200-0B Bobbin FN7010-0A Cross Driver FN7021-0A Back Button FN7022-0A Back Button Seat...

  • Page 60: Accessories 2

    © ANITA M. ACCESSORIES 2 MP02900EN_180606...
  • Page 61 © ANITA M. ACCESSORIES 2 Ref.No Parts No. Name of parts Description Note 5100341900 Knee Lever Rod 5100345100 Knee Lifter Plate Stopper 5100345200 Retainer 5100345300 Rubber 5100345400 Knee Lifter Plate AC7033-0A Knee Lifter Shaft AC7034-0A Knee Lifter Joint EP7100-0A Knitted Tap Stand，Compete Set FN7015-0J Oil Pan FN7016-0B...
