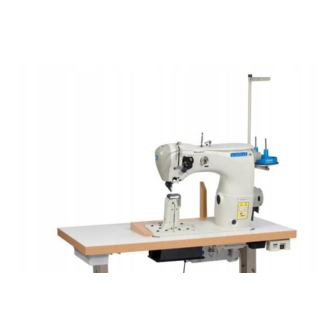

Garudan GP-510- 141 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User manual and
Spare Parts List
version 08/2011
GP-510- 141
ANITA B, s.r.o.
Hliníky 2068
680 01 Boskovice
Czech Republic
tel: +420 516454774, 516453496
fax: +420 516452751
e-mail:
info@anita.cz

Advertisement

loading
Need help?

Need help?

Do you have a question about the GP-510- 141 and is the answer not in the manual?

Questions and answers

Related Manuals for Garudan GP-510- 141

Summary of Contents for Garudan GP-510- 141

  • Page 1 User manual and Spare Parts List version 08/2011 GP-510- 141 ANITA B, s.r.o. Hliníky 2068 680 01 Boskovice Czech Republic tel: +420 516454774, 516453496 fax: +420 516452751 e-mail: info@anita.cz...
  • Page 3 © anita-b GP-510-141 1 Safety Measures Do not put the machine into operation until an appropriate preparation is carried out by a specialist or an authorised person, and until you get acquainted with safety measures. 1. Any sewing machine may be operated only by a properly trained operator.
  • Page 4 © anita-b GP-510-141 Putting the machine into operation Following instructions must be observed to avoid risk of failures or damage to the machine: - clean the machine of preserving agents - drop 1-2 drops of oil into looper - remove the front cover and oil the ends of needle bar connecting-rod and of the cross-head slide of thread take-up.
  • Page 5 © anita-b GP-510-141 Threading the Upper Thread Caution! Switch off the main switch and remove your feet from the pedals on the machine support before threading so that the machine may not be started by unintended treading on the pedal.
  • Page 6 © anita-b GP-510-141 Inserting needles Caution ! Switch off the main switch and remove your feet from the pedals on the machine support before replacing needles so that the machine may not be started by unintended treading on the pedal.
  • Page 7 © anita-b GP-510-141 Caution! Do not start the machine until you put the hook covers in working (protecting) position. Switch off the main switch and remove your feet from the pedals on the machine support before replacing the hook bobbin so that the machine may not be started by unintended treading on the pedal.
  • Page 8 © anita-b GP-510-141 7 Adjusting Differential Feed Ratio (only for machines with driven presser foot) To ensure sewing of fabric layers without their displacement in the course of feeding it is possible to adjust different lengths of feeding driven by press-wheel and feeding by rotary feed dog.
  • Page 9 © anita-b GP-510-141 The sewing machines are equipped with a safety clutch on the lower shaft (A) fig. 8 that allows the operator to turn the driving part of lower shaft (A) when the loopers or feed dogs are locked.
  • Page 10 © anita-b GP-510-141 10 Switching Off and Switching On of the Main Switch The Main Switch are marked 0 and I or they have grey/green and red buttons. Pushing position of the button marked "0" (red) means: off, pushing position of the button marked "I"...
  • Page 11 © anita-b GP-510-141 12 Bobbin Winder – Standard Built in Fig. 9 The thread passes from the bobbin stand through thread guide on the winder bracket (1) and between tension disks (2) and then following the direction of arrow (S) to the empty bobbin.
  • Page 12 © anita-b GP-510-141 Instructions for adjustment 13 Basic condition a) Clearance between the throat plate and the bobbin case stopper. Fig.10 Condition : Clearance between the top end of the bobbin case resting groove on the throat plate and the top face of the bobbin case stopper of the hook : 1,4 mm .
  • Page 13 TABLE OF CONTENTS © anita-b GP-510-141 Spare Parts Lists Frame and Cover Parts, Thread Tension Mechanism………….…..14,15 Upper Shaft Mechanism………………………….………………..16,17 Lower Shaft and Clutch Mechanism………………………………..18,19 Timing Belt DrivingMechanism……………………………………20,21 Needle Feed and Driven Roller Mechanism………………………..22,23 Lower Feed Mechanism…………………………………………….24,25 Feed Shaft Mechanism……………………………………………...26,27 Stitch Adjuster Mechanism……………………….………………...28,29 Needle Bar and Presser Foot Mechanism…………………………...30,31...
  • Page 14 Frame and Cover Parts,Thread Tension Mechanism © anita-b GP-510-141...
  • Page 15 Frame and Cover Parts,Thread Tension Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty A1-1 Face Plate 108246 A1-2 Screw (M5x0,8x25) 108234 A1-3 Screw (M5x0,8x35) 168061 A1-4 Thread Take-up Cover 210210 A1-5 Screw (M5x0,8x8) 119027 A1-6 4 Hole Thread Retainer...
  • Page 16 Upper Shaft Mechanism © anita-b GP-510-141...
  • Page 17 Upper Shaft Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 119702-2 Crank Cam 130224 Screw (M5x0,8x12) 119702-3 Screw (M7x1,0x22) 119702-4 Screw (M7x1,0x16,5) 700510 Screw (M6x0,75x8) 119702-5 Bushing 119702-1 Upper Shaft 200-002 Upper Shaft Gear Winder 018643 Ball Bearing...
  • Page 18 Lower Shaft and Clutch Mechanism © anita-b GP-510-141...
  • Page 19 Lower Shaft and Clutch Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 175025 C1-1 Shaft 518250 C1-2 Retaining Ring 119711 C1-3 Shaft 175019 C1-4 Coupler 341901 C1-5 Screw (M6x0,75x6) 133109 C1-6 Coupler 119081A C1-7 Connecting Plate 700510...
  • Page 20 Timing Belt Driving Mechanism © anita-b GP-510-141...
  • Page 21 © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 119097 C2-1 Plug 610300 C2-2 Retaining Ring 018624 C2-3 Ball Bearing 119707 C2-4 Timming Belt Wheel 335902-1 C2-5 Screw (M6x0,75x8) 335902 C2-6 Screw (M6x0,75x10) 119121 C2-7 Collar (Left) 700689 C2-8...
  • Page 22 Needle Feed and Driven Roller Mechanism © anita-b GP-510-141...
  • Page 23 Needle Feed and Driven Roller Mechanism © anita-b GP-510-141 Ref.No. Part No. Name of Part Q´ty D1- 1 119164 Clamp D1- 2 108177 Screw (M4x0,7x10) D1- 3 119163 Crank D1- 4 108225 Screw (M5x0,8x10) D1- 5 119085 Washer D1- 6...
  • Page 24 Lower Feed Mechanism © anita-b GP-510-141...
  • Page 25 Lower Feed Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty D2-1 119795 Roller Bracket D2-1-1 119795-1 Roller Bracket D2-1-2 119795-2 Roller Bracket D2-1-3 119795-3 Screw D2-1-4 119795-4 Screw D2-1-5 119795-5 Ball d.2mm D2-2 119737 Bevel Gear D2-2-1...
  • Page 26 Feed Shaft Mechanism © anita-b GP-510-141...
  • Page 27 Feed Shaft Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 610280 D3-1 Retaining Ring 119085 D3-2 Washer 133283 D3-3 Washer 215124 D3-4 Needle Bearing 118600 D3-5 Bushing D3-6 119163 Crank D3-7 108225 Screw (M5x0,8x10) D3-8 119164 Clamp...
  • Page 28 Stitch Adjuster Mechanism © anita-b GP-510-141...
  • Page 29 Stitch Adjuster Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 175038 D4-1 Connecting Rod 069060 D4-2 Ball Bearing 175038A D4-3 Crank Rod Set 215028 D4-4 Needle Bearing 118612 D4-5 Bearing Stud 165356 D4-6 Feeding Adjusting Plate 165356-1...
  • Page 30 Needle Bar Feed and Presser Foot Mechanism © anita-b GP-510-141...
  • Page 31 Needle Bar Feed and Presser Foot Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 175096 Needle Bar 174173 Screw(M3x0,5x4) 175096-2 Thread Guide 175150 E-10 215028 E-11 Needle Bearing 169137 E-12 Washer (14x8,1x1mm) 305305 E-13 Screw (M6x1,0x25) 024191...
  • Page 32 Thread Take-Up Lever Mechanism © anita-b GP-510-141...
  • Page 33 Thread Take-Up Lever Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 500-149 118084 Thread Take-up Assy 119009 Take-up Lever Support Stud 168039 Washer 215022 Needle Bearing 119008 Take-up Frame 119762 Take-up Crank Pin 119049 Bushing 119007 Take-up Lever...
  • Page 34 Roller Presser Foot Mechanism © anita-b GP-510-141...
  • Page 35 Roller Presser Foot Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 119803 G1-1 Roller Preser Assy (Large) G1-2 119803-1 Roller Preser Assy (Middle) G1-3 119802 Roller Preser Assy (Small) 119469 G1-4 Spring Washer 033145 G1-5 175109 G1-6...
  • Page 36 Presser Foot Bar Mechanism © anita-b GP-510-141...
  • Page 37 Presser Foot Bar Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty G2-1 119019 Presser Bar Bushing (Upper) 700785 G2-2 Screw (M5x0,8x6) 119018 G2-3 Presser Bar Bushing (Upper) 118530 G2-4 Presser Bar Holder 700510 G2-5 Screw (M6x0,75x8) 119019-1...
  • Page 38 Right Side Hook Mechanism © anita-b GP-510-141...
  • Page 39 Right Side Hook Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty G400S H1-1 Hook Complete With Bobbin Case G400S-589 H1-1-1 Hook complete without cap H1-1-2 G400S-582 Hook without cap holder G400T-017 H1-1-3 Tension spring fastening screw G400S-046...
  • Page 40 Right Side Hook Post Mechanism © anita-b GP-510-141...
  • Page 41 Right Side Hook Post Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 250084 I1-2 Srew/šroub(M3x0.5x6) 175267 I1-3 Cover Plate 700336 I1-4 Screw/šroub(M4x0,7x6) 175318 I1-5 Stud/excentr 330217 I1-6 Screw/šroub(M5x4.5) 175324 I1-7 Hook Post I1-8 119436 Post Cap Assy...
  • Page 42 Left Side Post Mechanism © anita-b GP-510-141...
  • Page 43 Left Side Post Mechanism © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty I3-1 119145 Cover Plate/kryt I3-2 250084 Screw/šroub(M3x0,5x6) I3-3 119721 Support Plate/levý sloupek I3-4 119144 Washer/podložka I3-5 130224 Screw/šroub(M5x0,8x12) I3-6 182451 Screw/šroub(m6x1,0x14) I3-7 119725 Stud/čep I3-8 317170 Screw/šroub(M4x0,7x10)
  • Page 44 Bobbin Winder © anita-b GP-510-141 Part No. Ref. No. Name of Part Q´ty P980025248 N1-1 Thread guide/ vodič úplný 102243 N1-7 Knife/nůž 102243-1 N1-8 Clamping plate/pérko 102243-2 N1-9 Clamping plate/pérko 108093 N1-10 Screw/šroub 200-002 N1-11 Upper shaft gear winder/kolo náhonu navíječe...
  • Page 45 Accessories © anita-b GP-510-141...
  • Page 46 Accessories © anita-b GP-510-141 Part No. Ref.No. Name of Part Q´ty 123456 N2-1 Accessory Bag 029836 N2-2 Vinyl Cover 800110 N2-3 Spanner 129915 N2-4 Screw Driver (Small) 029946 N2-5 Screw Driver (Middle) 029007 N2-6 Screw Driver (Large) 134LR N2-7 Needle...
