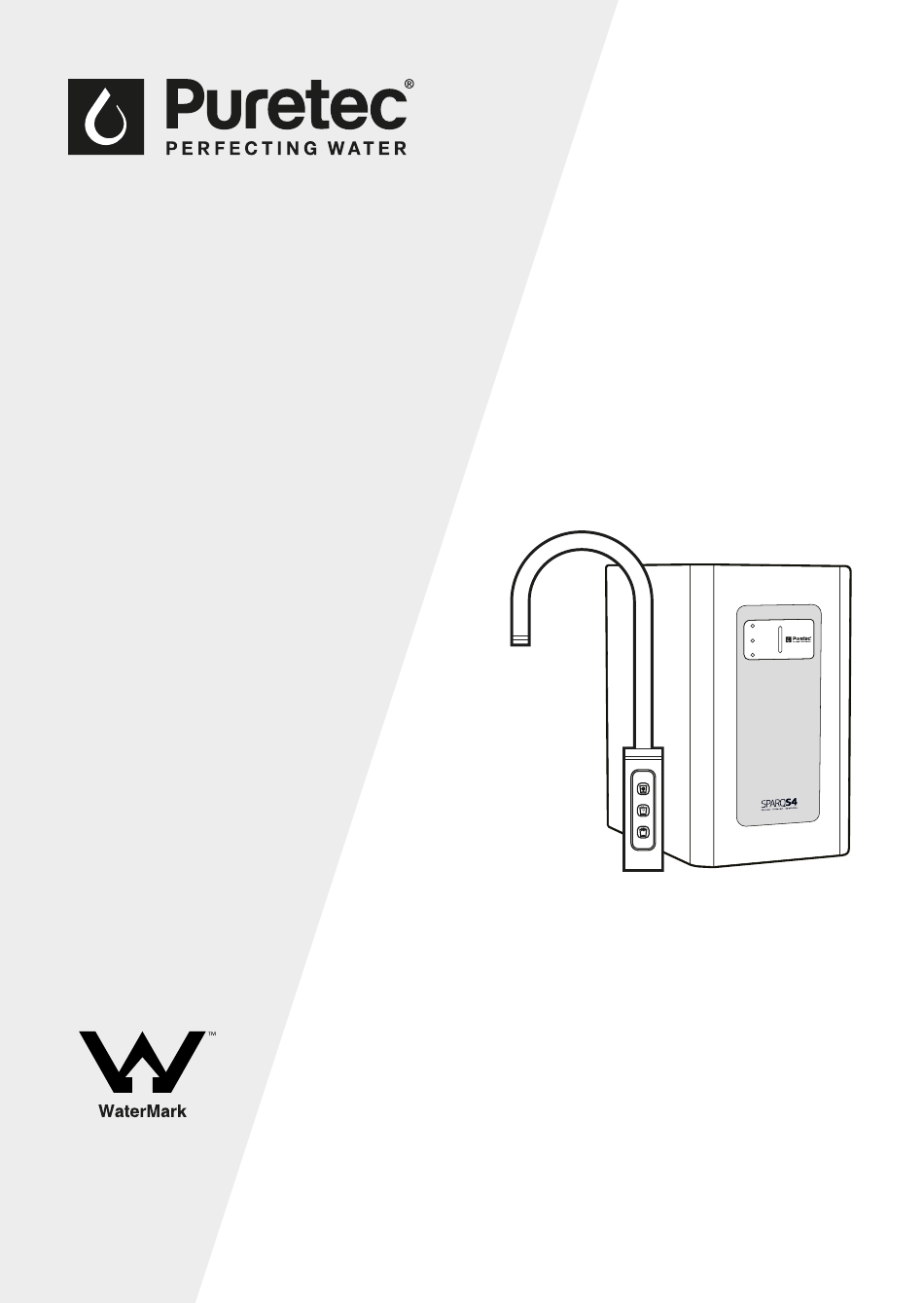

- Page 1 SODA COLD CHILLING User Guide Sparq S4 WMTS 105 Certificate No. 23291 Sparkling, Chilled & Ambient Water Filter System Australian Certification Services For correct operation & installation, it is essential to observe these instructions. MAR2021...
-
Page 2: Table Of Contents
Filter Maintenance ............................14 Gas Replacement ............................16 Troubleshooting ...............................17 Warranty ................................18 AUSTRALIA NEW ZEALAND Customer Service: 1300 140 140 Customer Service: 0800 130 140 Email: sales@puretec.com.au Email: sales@puretec.co.nz Web: www.puretec.com.au Web: www.puretec.co.nz Installation & Operation Manual Copyright © Puretec Pty Ltd 2021... -
Page 3: Puretec Customer Service

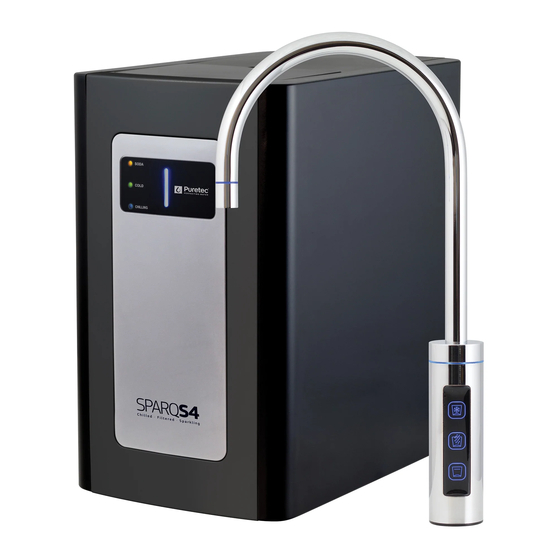

Introduction Puretec Customer Service Thank you for purchasing a Puretec Sparq S4 Drinking Water Appliance. The Sparq S4 is a proven performer manufactured from only quality materials and components. It will give years of reliability and trouble-free operation if maintained properly. -
Page 4: Before Installation
Note: Where maximum line pressure exceeds 500 kPa, the supplied multivalve must be installed to comply with Australian Plumbing Standards. • The Sparq S4 system is designed for mains/towns warter supply only. Caution: Do not use with water that is microbiologically unsafe or without •... -
Page 5: Parts Included
50Hz / 220~240 V Max Power Consumption: 100 W Tap Dimensions: 423 (H) x 205 mm (W) Appliance Dimensions: 390 (H) x 81 (W) x 105 (D) mm Warranty: 1 year^ Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide... - Page 6 System Identification Figure 1 - Dimensions A Ø26mm hole is required for faucet (Max. 30mm). ^Warranty cover parts and labour for the period of 1 year where applicable subject to approval. Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
- Page 7 System Identification Figure 2 - Tap Button Identification Cold Sparkling Ambient Figure 3 - CO Bottle Pressure Gauge Pressure Gauge Pressure Regulator Tube (Black) Bottle TOP VIEW SIDE VIEW Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide...
- Page 8 Sparq Faucet Straight Connector Wiring Loom Tube (Black) Water Inlet SmartTee™ Multivalve (Pressure Limiting Valve) Unit Power Supply Water Inlet Connection (Blue) Water Outlet (White) Note: All lines are 1/4" tube. Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 9: How To Operate The Tap
O-Ring seal being damaged. 3. Tube is secured in DISCONNECTION PROCEDURE position. 4. Push collet against body and slide tube out of fitting. Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide... - Page 10 5. Turn the quick connect nut on the SmartTee™ 6. Push the collet against the quick connect nut and slide tube anticlockwise to release the collet. out of fitting. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 11: Installation
Note: If cupboard does not permit enough space for filter changes, leave enough tube length to allow the filter system to come out of the cupboard to change the filters. Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide... - Page 12 Double check all tubes, fittings and connections to and from the unit and tap have been connected and fitted correctly. Check all electrical connections are firmly fitted and there is no damage. 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021...
-
Page 13: Cold/Ambient Water Commissioning
Note: The bar pressure on the CO gauge will increase during this process. Venting from the CO gauge and/or the pressure relief valve within the unit is normal during this step. Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide... -
Page 14: Filter Maintenance
2. Remove filter cover by pushing the clip in on top of the unit. 3. Push in the Manifold release button. release button on the filter manifold and lift out of the unit. 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021... - Page 15 It is normal for black fines, cloudiness or micro- bubbles to come through during the filter flush. Insert new filters. Undo filters. Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide...
-
Page 16: Gas Replacement
Note: A small amount of water will come out after using the sparkling feature for 1-2 seconds. This is normal as the CO is purged from the line. 7. Check with your local governing bodies for any disposal requirements and discard the empty bottle. 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2021... -
Page 17: Troubleshooting
Turn on the soda power switch. line needs re- Follow the Soda/Sparkling commissioning. Water Commissioning steps. Not enough bar pressure. Slightly increase CO pressure. DO NOT exceed 4 bar. Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide... -
Page 18: Warranty
Puretec’s discretion, including chargeable inspection and labour costs incurred. WARRANTY / AUSTRALIA This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au. - Page 19 Copyright © Puretec Pty Ltd 2021 Puretec Sparq S4 User Guide...
- Page 20 Puretec water care products are designed, manufactured and supported by Puretec Ltd the name you can trust for viable and proven water solutions. The complete range of Puretec products are developed, refined, made to meet and exceed stringent specifications for the worldwide market.
