Installation
Connecting the
compressor to the
compressed air network
Remove cladding
Page 30
3.3
– Connect the compressor to the compressed air network or a compressed
air receiver.
For this, use a BOGE high pressure hose.
NOTICE!
Do not install a check valve in the pressure line.
The compressor is already equipped with a check valve.
WARNING: Risk of injury!
Make sure to always wear protective gloves to protect yourself against any
sharp edges and corners on covering components!
– Lift off top cover (1) (for super silenced version only).
– Loosen cabinet bolts (2) above lateral sheets and backwall and remove
cladding.

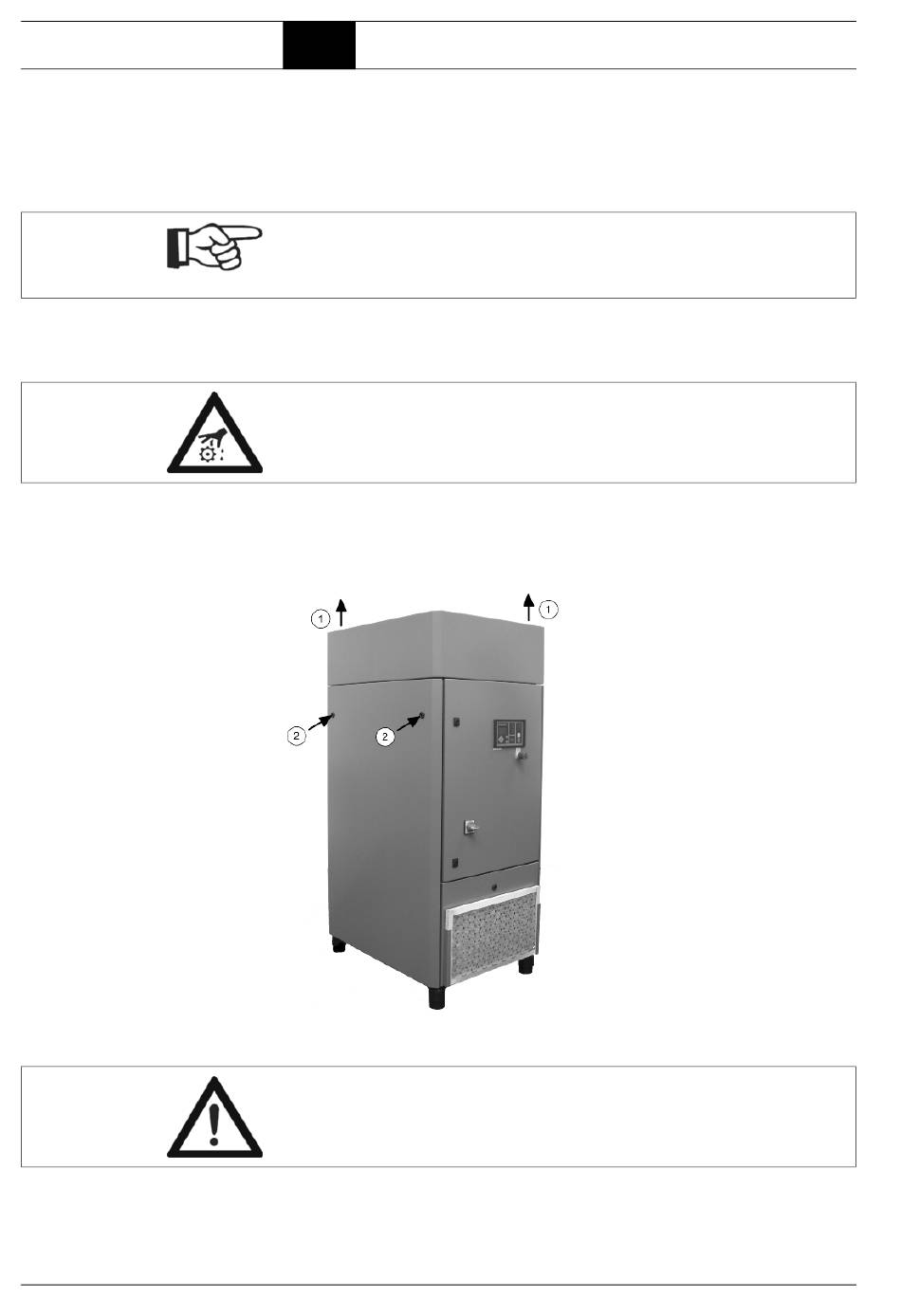

Fig. 3.4: Remove cladding (illustration shows super silenced version)
WARNING!
To avoid damages to the cooler you must counter the screw connections at
the compressed air outlet with a spanner.
Installation
BOGE Operating instructions for C 15 series screw compressors
