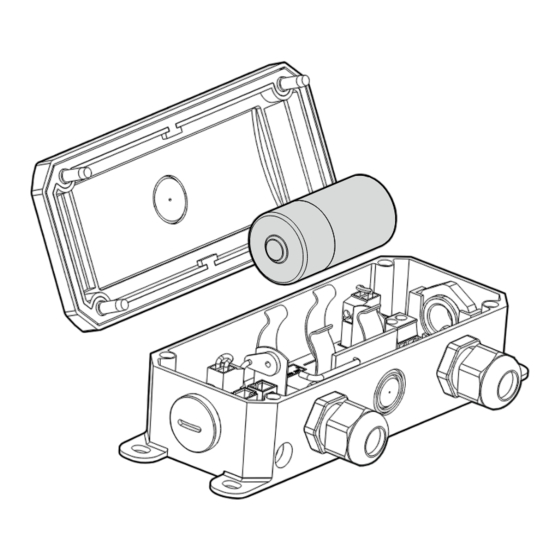

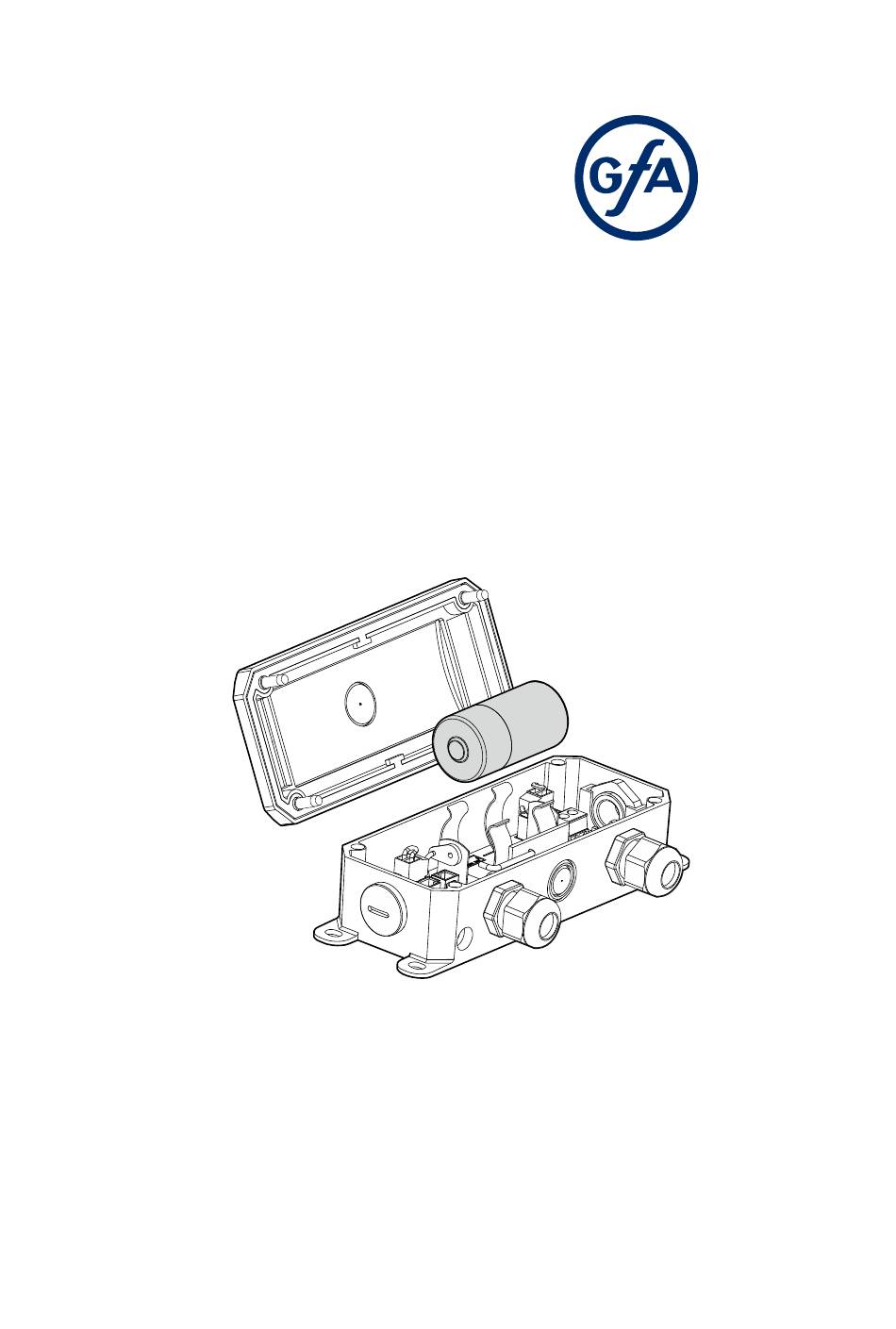

- Page 1 Installation Instructions WSD door- module 2,4 GHz Model: 30005154 -en- 51171746_00002_a - Status: 11/2019...
-
Page 2: Explanation Of Symbols
Two slack-rope switches and one pass-door switch can be connected. The WSD door-module has cross-fault monitoring. Cross-fault monitoring: Electronic monitoring of a short circuit between two wires inside a cable by measuring the resistance. GfA ELEKTROMATEN GmbH & Co. KG Wiesenstraße 81 D-40549 Düsseldorf www.gfa-elektromaten.de... -
Page 3: Installation
Installation WARNING Danger due to uncontrolled door movement. Carry out the following work only when the power supply is switched off. Lock the door to through traffic while working. Installation on the door Remove the cover from the door leaf box. ... - Page 4 NOTICE Damage due to moisture! In humid areas, use the cover to protect the door leaf boxes. Covers are available as accessories: Part no.: 40017478.00001 Set switches Q1 and Q2 You will find the switches Q1/Q2 on the board. Q1/Q2 are used to switch the cross-fault monitoring (see page 2 for definition) of the slack-rope and pass-door switches.
-
Page 5: Laying The Cables
Laying the cables Impairment of radio capacity! NOTICE ➊ Do not route the cables over the antenna. This restricts the radio capacity and the battery service life is reduced! ➊ Route excess cable over the battery.➋ ➋ Avoid excess cable length in the door leaf ... - Page 6 Insert cable glands The WSD door-module is set up for connecting M16 x 1,5 two slack-rope switches and one pass-door switch. If you want to install a pass-door or slack- rope switch, replace the side covers with M16 x 1.5 cable glands. i NOTE Please note that only switches with performance level c (PLc) comply with the current DIN EN 12453 standard.
- Page 7 Connection diagram System 1: 1k2 and 8k2 ➊ Slack-rope switch ➋ Pass-door switch Connection diagram System 2: OSE ➊ Slack-rope switch ➋ Pass-door switch...
-
Page 8: Finish Installation
Finish installation Fit the cover of the junction end box. Switch on the voltage. NOTE Damage due to moisture Make sure that the screws and cable glands are tightened. Insert battery The WSD door-module is powered by a battery. The battery life depends on the safety edge system (optical, electrical), frequency of use and the size of the door, and is usually more than 1 year. - Page 9 Teach-in of WSD door-module The following describes how to teach-in the WSD door-module on the door control. Also follow the instructions for the door control. Assign a different radio channel to each door. Note the channels in the door control housing to facilitate maintenance. Also observe the notes for selecting the channel on the following pages.
-
Page 10: Selecting The Channels
3 10 8 The WSD door-module is now taught-in. Check the function of the safety edge system. Selecting the channels From door 40, channels are assigned in duplicate. Duplicate radio channels must be as far apart as possible. Plan in advance and min. - Page 11 Dispose of old devices and batteries appropriately in accordance with local regulations. Take old devices and batteries to the recycling and collection systems at your location. You can also return GfA products free of charge. Please apply enough postage to the package and mark it as "old devices".
-
Page 12: Declaration Of Conformity
Declaration of incorporation within the meaning of Machinery Directive 2006/42/EC for partly completed machinery, Appendix II Part B Standards applied: GfA ELEKTROMATEN GmbH & Co. KG EN 60335-2-103:2015 declare under our sole responsibility that the Household and similar electrical appliances -...
