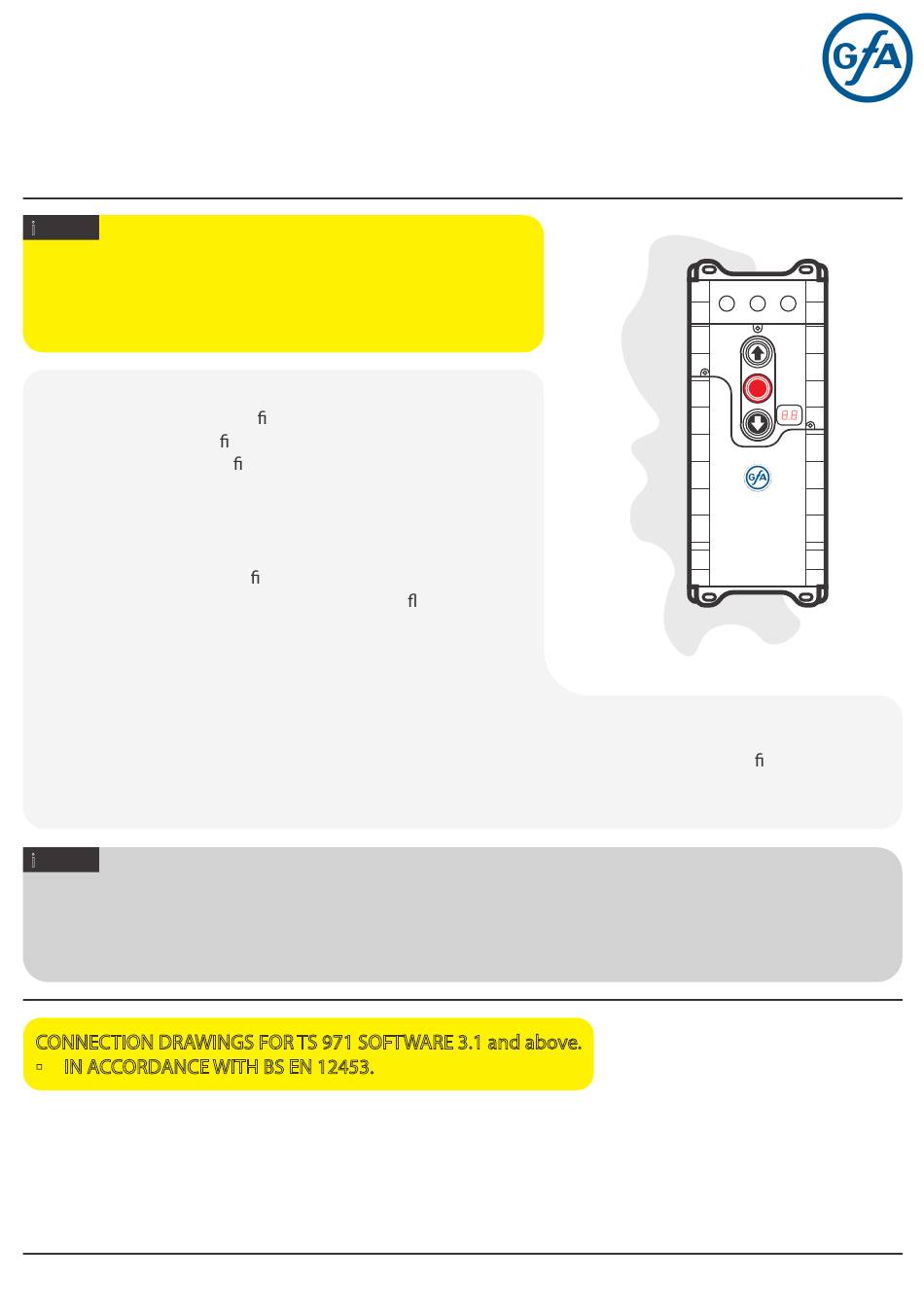

TS 971 Industrial Door Control
▪ Connection Drawings
i
NOTE
The manufacturer's instruction booklet supplied with the TS
971 control panel contains important directions and warnings
for the safe use of this equipment, and should be read before
installation or any commissioning is undertaken.
In accordance with BS EN 12453 self-checking or self-testing
safety edge or a device certi ed as type 'E' according to BS EN
12453, i.e. light curtain tted directly in line with the moving
leaf of the door, must be tted to doors that close by impulse,
remote or automatic activation.
In addition, doors operated by untrained users in public
areas, activated by impulse out of sight of the door or
automatic control must be tted with a one more photocells,
to detect persons or obstacles standing on the oor to one
side of the door.
The photocells do not need to be self-checking or self-testing
but they should be subject to periodic checks at intervals not
exceeding six months.
Grilles and doors that have hand or footholds that can be used to ride on the door must be tted with
devices to protect against trapping i.e. Raytector Entrapment Protection Barriers that when obstructed stop
all movement of the door.
i
NOTE
A Maintenance Cycle Counter is included in the TS 971
When commissioning the shutter, set the maintenance counter according to the shutter manufacturer's
recommendations.
CONNECTION DRAWINGS FOR TS 971 SOFTWARE 3.1 and above.
▪ IN ACCORDANCE WITH BS EN 12453.
(See Control Programming
GfA ELEKTROMATEN Ltd
Agincourt Road
Warwick
CV34 6XZ
www.gfa-elektromaten.co.uk
technical@gfa-elektromaten.co.uk
01926 452 452
8.5
8.6
and
).
12.23
