Product Description / Functions

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6

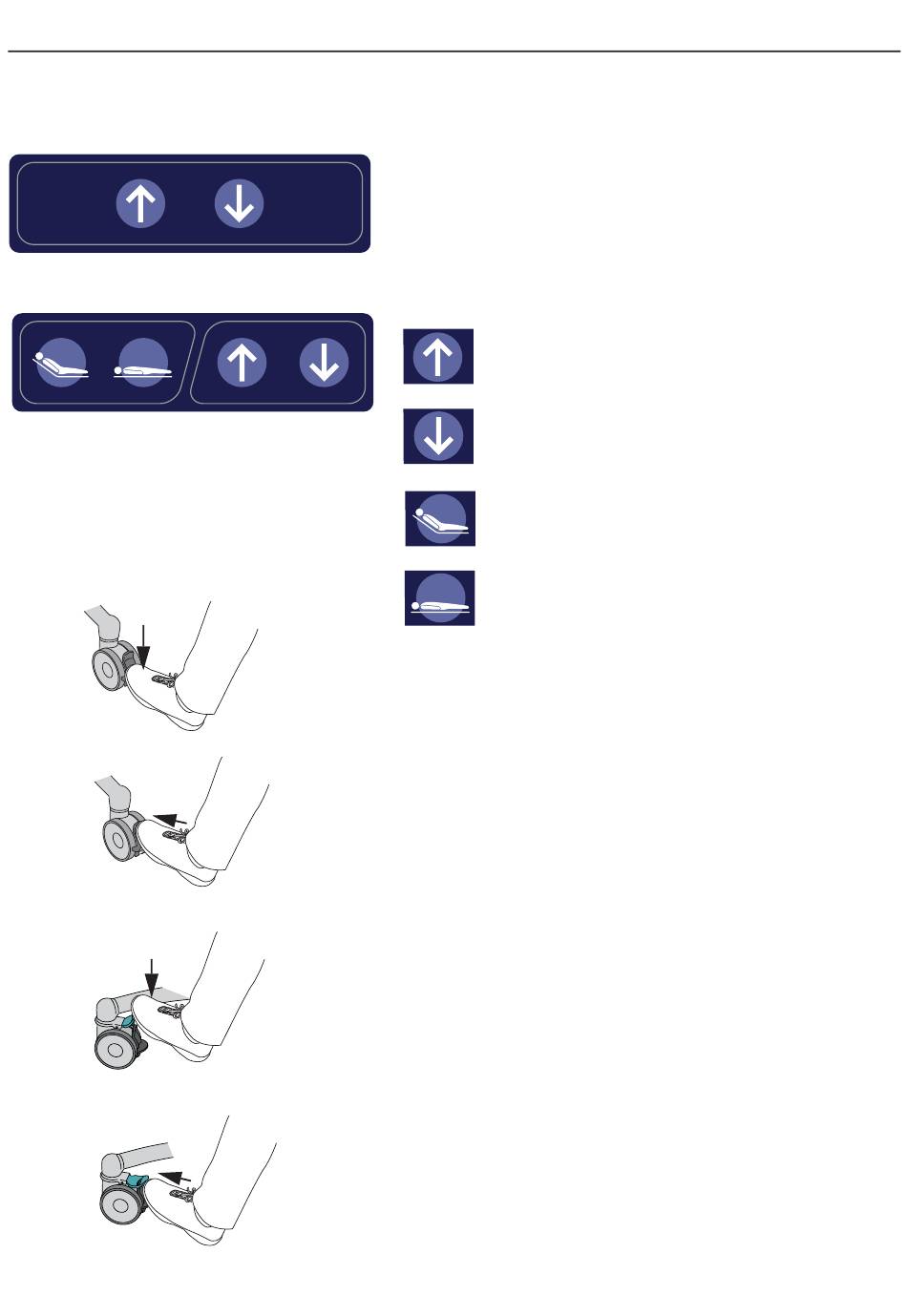

Control Panel

The control panel is located on each side support and on the head
panel. There are two types of control panels depending on the
Carevo model. The models are:
• Carevo model without adjustable back support (See Fig. 1)
• Carevo model with adjustable back support (See Fig. 2)

Button Functions:

Press to raise the Carevo.
Press to lower the Carevo
Press to raise the adjustable back support.
Press to lower the adjustable back support.

Castor Brakes

The castor brakes are located on all four castors.
Apply the brakes:
Press down on the gray castor brake lever. (See Fig. 3)
Release the brakes:
Slightly kick up the gray castor brake lever. (See Fig. 4)

Straight Steering Device

Most often used when one caregiver is transporting the Carevo.
For easier manoeuvring in corridors and around corners, use the
straight steering device. The straight steering devices are green
and located on two castors diagonally from each other.
Apply the straight steering lever furthest away from where the
caregiver is standing. Do not apply both straight steering levers,
since it will make the Carevo hard to manoeuvre.
Apply straight steering: press down on the green straight
steering lever. (See Fig. 5)
Release the straight steering: slightly kick up the green
straight steering lever. (See Fig. 6)
