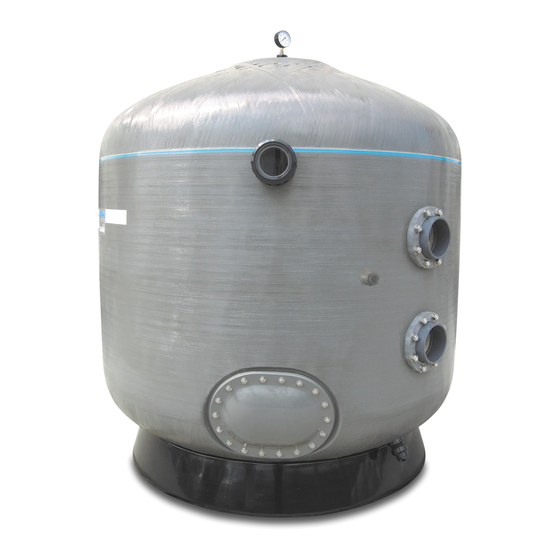

COMMERCIAL FILTER
Owner's Manual
This equipment must be installed and serviced by a qualified technician.
Improper installation can create hazards which could result in property
WARNING
damage, serious injury or death. Improper installation will void the warranty.
Notice to Installer
This manual contains important information about the installation, operation
and safe use of this product. Once the product has been installed this manual
must be given to the owner/operator of this equipment.
www.waterco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Waterco Commercial filter
Summary of Contents for Waterco Commercial filter
- Page 1 COMMERCIAL FILTER Owner's Manual This equipment must be installed and serviced by a qualified technician. Improper installation can create hazards which could result in property WARNING damage, serious injury or death. Improper installation will void the warranty. Notice to Installer This manual contains important information about the installation, operation and safe use of this product.
-
Page 2: Table Of Contents
4 | Commercial Filter Manual Table of SAFETY INFORMATION WATERCO FIBREGLASS FILTERS MAXIMUM RATED PRESSURE MATERIAL COMPATABILITY FILTRATION BACKWASH (Reverse flow) AIR SCOUR BACKWASH INSTALLATION LIFTING GENERAL LOCATION CONNECTION AND PIPEWORK DUAL PRESSURE GAUGE INSTALLATION VALVE SET UP DRAIN CONNECTION DRAIN WATER ONLY –... -
Page 3: Safety Information
Commercial Filter Manual | SAFETY INFORMATION Waterco Commercial Fibreglass Vessels are designed to work with water at a temperature > 0°C / 32°F and < 50°C/122°F. The vessel should never be operated outside of these temperatures or damage may occur. -
Page 4: Waterco Fibreglass Filters
02 | Commercial Filter Manual WATERCO FIBREGLASS FILTERS Waterco Commercial Fibreglass Vessels embody the latest in fibreglass winding technology Waterco Commercial Vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fibreglass filament. Waterco’s digitally controlled filament winding faultlessly winds continuous strands of high quality fibreglass filament under controlled tension to create a refined consistency and superior quality. There are no special tank linings which can corrode or electrolyse. MAXIMUM RATED PRESSURE Waterco Commercial Vessels can be supplied with maximum rated pressures of;... -
Page 5: Filtration
Commercial Filter Manual | FILTRATION Waterco Commercial Vessels can be configured to provide general filtration, multi-stage water treatment filtration, chemical and odor removal, or demineralisation. Designed for down-flow use, unfiltered water enters the vessel through the upper influent port. Once entering the distribution header, the water flows through a hydraulically balanced system of diverters strategically placed over the filter bed. Even distribution of the water is achieved throughout the filter tank, which results in low levels of turbulence and minimal differential pressure losses. Water flow paths are parallel and vertical at the surface of the filter media bed resulting in flow capabilities up to 49m3/m2/hr or 20 US gpm/ft2 velocity without creating channeling within the media bed (depending on media type). -
Page 6: Backwash (Reverse Flow)
BACKWASH (Reverse flow) Backwashing is the reversal of water flow through the media bed to cleanse the media. As a guide, the backwash cycle would occur when pressure differential reaches 50kPa / 7-10 psi above the clean filter pressure i.e. after installation or after backwash procedure and clean media. Waterco recommend the use of the Waterco Dual Pressure Gauge for all installations to assist in determining backwash requirements (This model for use for up to 4 bar applications only). Backwashing is achieved by reversing the water flow into the collection laterals or nozzle plate, up through the filter bed. Wastewater is then collected through the distribution header and exits through the top port. -
Page 7: Air Scour Backwash
Air only followed by water flush Air + water Waterco does not recommended using air OR air and water at the same time without suitable design by a qualified hydraulic engineer. Air velocity is generally 50m3/m2/hr or 3-5 CFM/ft2 depending on method, and provides a more efficient backwash method saving up to 25% water per backwash. -
Page 8: Installation
06 | Commercial Filter Manual INSTALLATION LIFTING... -
Page 9: General Location
Vessels should be positioned so that manholes and sight glasses can be easily accessed (please consult Waterco for custom designs and location of manways and sight glasses etc). Vessels should ideally be positioned as close as possible to the water source and plant. -
Page 10: Valve Set Up
08 | Commercial Filter Manual VALVE SET UP Waterco’s Commercial Vessels with bulkhead ports are suitable for use with Waterco Multiport Valves. 50mm (2"), 65mm (2.5"), 80mm (3") or 100mm (4") options are available. For vessels supplied with flange or bulkhead ports which do not have a Multiport valve, the following valve configurations may be used;... -
Page 11: Drain Connection
Waterco half union Diagram B. (either 40mm or 50mm depending on model) d. -
Page 12: Installation Media
WET TESTING Before adding any media to the filter, the filter must be filled with water and the system run in both filter and backwash modes to test for any possible leaks of the filter or pipework. Waterco vessels are pressure tested at the factory before shipping. It is possible though, that during transit the tank or fittings may have been damaged. Waterco does not accept any claim for the costs of media removal and replacement required where the filter was not adequately wet tested on site before filling with media. -
Page 13: Lid Installation
Commercial Filter Manual | LID INSTALLATION NOTE: Lubricant should be silicon based and not petrochemical based DUAL YOKE LID TYPE See assemblies section (page 20) for further detail Lid with ARV Lid without ARV... -
Page 14: Lock Ring Type
12 | Commercial Filter Manual LOCK RING TYPE Clean the inner sealing surface and O-ring thoroughly before inserting O-ring to the lid Place the lid (with O-ring installed) in position, gently pushing into place Place the lock ring over the lid and firmly hand tighten Do not over tighten See assemblies section (page 20) for further detail... -
Page 15: Installation Of Multiport Valve
Commercial Filter Manual | INSTALLATION OF MULTIPORT VALVE Side Mount Fibreglass Filters are supplied with the option of a Side Mount Multiport Valve with a plumbing kit designed to be connected to the side ports of the filter. Align the Multiport Valve’s plumbing kit with the filter’s threaded connection ports. Screw the plumbing kit’s barrel unions onto the filter connection ports and hand tighten. Do not over tighten the barrel unions as this can lead to damage and void warranty. -
Page 16: Butterfly Valve Manifold Operation
14 | Commercial Filter Manual BUTTERFLY VALVE MANIFOLD OPERATION FILTER POSITION CLOSED OPEN CLOSED CLOSED OPEN BACKWASH POSITION OPEN CLOSED OPEN CLOSED CLOSED RINSE POSITION CLOSED OPEN CLOSED OPEN CLOSED... -
Page 17: Initial Startup
Commercial Filter Manual | INITIAL STARTUP Be sure the correct amount of filter media is in the filter vessel and that all connections are sound Using the RINSE setting in the first instance will ensure swarf and debris contained in the system pipework does not block the collectors if BACKWASH was to be used in the first... -
Page 18: Backwashing
16 | Commercial Filter Manual BACKWASHING The function of backwashing is to separate the deposited particles from the filter media grains and flush them from the filter bed. Backwashing is achieved by reversing the flow of water through the filter bed at a fairly high flow rate. This high flow rate expands the filter bed and the water flow carries the debris out to waste. CONDITIONS FOR BACKWASHING Time for backwashing is determined by the following conditions: The flow rate through the filter bed decreases until it is insufficient to meet the demand The removal efficiency of the filter bed decreases to the point where filter water quality... -
Page 19: Backwashing Instructions
Commercial Filter Manual | BACKWASHING INSTRUCTIONS Note, this manual does not cover every possible instalment, valving option or customised design. Only trained and suitably qualified persons who understand the design should operate the equipment. If the system is not operated as it has been designed, excessive flow or pressure build up could damage equipment or cause personal injury. WITHOUT AIR SCOUR Shut OFF the pump prior to making any valve position changes... -
Page 20: Maintenance Guide
18 | Commercial Filter Manual MAINTENANCE GUIDE The filter media will only require replacement once it has reached the limits of its designated life. Refer to the product information of the particular filter media used. To ensure the maximum life of the selected filter media, please follow the procedures below: Backwash the filter regularly according to the instructions set under “BACKWASHING”. Refer to the specifications of the filter media used and implement regeneration procedures accordingly For closed loop systems such as swimming pools: Maintain a correct chemical balance of your pool / spa water. The chemical balance of water is a relationship between its pH, total alkalinity, calcium hardness and water temperature. -
Page 21: Lateral Manhole And Bolt Torques
Commercial Filter Manual | LATERAL MANHOLE AND BOLT TORQUES The lateral manhole may be removed once media is removed to a level below the lateral manhole. Always ensure new Orings are on site prior to removal of top or lateral manholes. -
Page 22: Lid Assembly
20 | Commercial Filter Manual LID ASSEMBLY LID WITH YOKES With 2” ARV; Lid with yokes Lid with yokes NECK RING STYLE Neck Ring Type... -
Page 23: Lateral / Nozzle Assemblies
Commercial Filter Manual | LATERAL / NOZZLE ASSEMBLIES STANDARD LATERAL Lateral Distribution AIR SCOUR LATERAL Air Scour Distribution HORIZONTAL VESSEL Lateral Distribution - Horizontal Vessel... - Page 24 22 | Commercial Filter Manual NOZZLE (PLATE) BULKHEAD ASSEMBLY Refer to Sight Glass assembly/replacement instructions...
- Page 25 Commercial Filter Manual | FLANGE ASSEMBLY Refer to Sight Glass assembly/replacement instructions Flange - Exploded view Recommend tightening torgue Item Description Flange No. of Thread for hex nut/bolt with lubricant size hex nut diameter copperslip (N m) Flange stud ring Gasket flange 3"...
-
Page 26: Flange Assembly
24 | Commercial Filter Manual FLANGE ASSEMBLY Will be provide by WFE (glued joint) Dismantle all 4 nut & take out the damage flange. Clean filter wall. Should have silicon old silicon mark. Wipe with acetone. Apply new silicon layer. -
Page 27: Sight Glass Assembly Process (80Mm)
Open the air release valve and move the MPV handle to the winterise position [between Filter and Waste] This will allow air to through to all ports. Remove any drain plugs from the filter Drain water from the pipework WARRANTY Waterco fibreglass commercial vessels are covered by a 10 year (5 year full + 5 years pro rata) tank warranty and 1-year warranty on all other components. Please refer to Waterco’s warranty terms and condition... - Page 28 SA/NT - AdelAIde Auckland, New Zealand Nehsons building, Singapore : +61 8 8244 6000 : +64 9 525 7570 Tel : +65 6344 2378 ACT dISTrIbuTOr : +61 2 6280 6476 Waterco Limited ABN 62 002 070 733 (W99322) 11/2018...
