3 Detailed Description

3.5 Mounting the INT-COM-1300

The INT-COM-1300 is housed in a rugged 120x80x21mm shielded aluminum
enclosure. The unit can be mounted to small edges by 6-32 screws, see Figure 7.
Threads are of 6 mm depth.

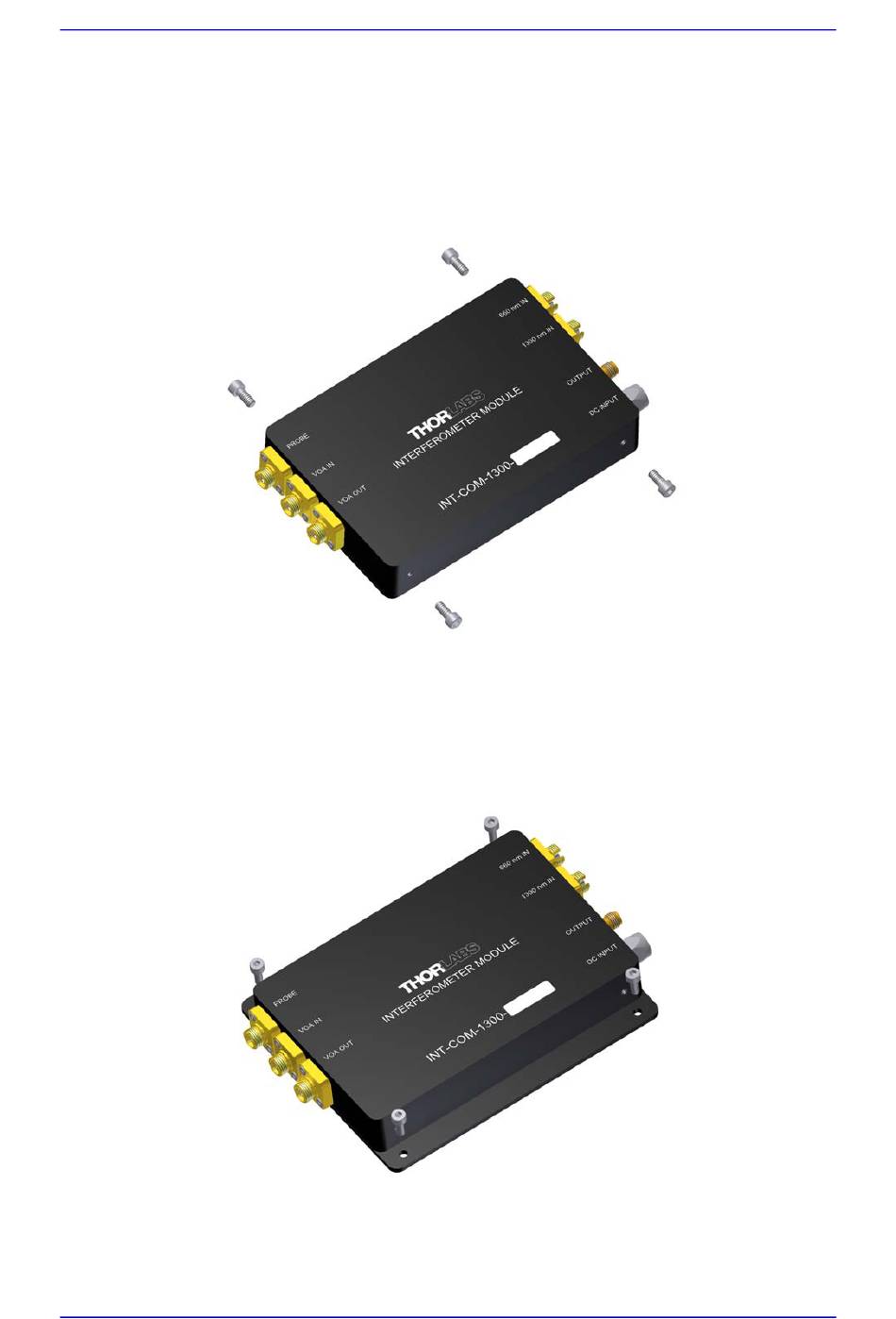

Figure 7: Possible mounting points for INT-COM-1300
An alternative cover with four mounting holes or a customized cover can be ordered
on request, see Figure 8.
Figure 8: INT-COM-1300 with alternative cover
INT-COM-1300 / page 12
