B a t t e r y C h a r g i n g

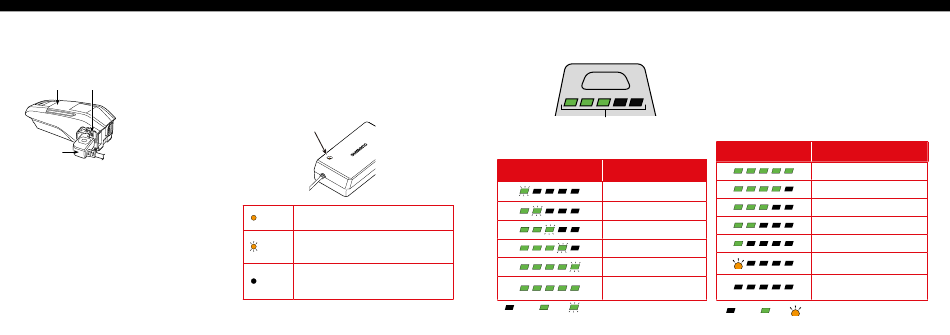

• Battery can be charged in the Tazer
frame or outside of Tazer frame.
Charging port
Battery
• Pull back tab of rubberized cover
on the back of the battery to
access plug interface.
• For best charging results plug
Shimano charger directly into a
wall outlet, then plug charger into
Charging plug
side of battery.
<BT-E8010>
• Both the Shimano Battery and
Shimano Charger indicator lights
should light up, the yellow charger
light shows it's charging. While
the Green lights on the battery will
blink as they are charging and be
completely solid when fully charged.
• When Battery is completely
charged, both it and the charger
will turn off.
1 8 // t a z e r u s e r m a n u a l
c h a r g i n g t i m e f o r t h e
5 0 4 W h M o d e l b a t t e r y
• 80% in 2.5 hours
• 100% in 5 hours
A b o u t t h e C h a r g e r L E D L a m p
After charging has started, the LED lamp on the charger lights up.
Charger LED lamp
Charging (Within 1 hour after the completion of charging)
Lit up
Charging error
Blinking
Battery disconnected
Turned off
(1 hour or more after the completion of charging)
A b o u t t h e B a t t e r y L E D L a m p
You can check the current charging status on the LED lamp on the battery.
Battery LED lamps
( C h a r g i n g - i n - P r o g r e s s I n d i c a t i o n )
Battery level indication*1 Battery level
0% - 20%
21% - 40%
41% - 60%
61% - 80%
81% - 99%
100%
*1 : No light : Lit up : Blinking
B a t t e r y L e v e l I n d i c a t i o n
The current battery level can be checked by pressing the battery's
power button. NOTE: When remaining battery capacity is low, system
functions begin to shut off in the following order.
1. Power assistance (Assist mode automatically switches to
[ECO] and then assistance shuts off. The switch to [ECO]
occurs earlier if a battery-powered light is connected.)
2. Gear shifting
3. Light
Battery level indication*1 Battery level
100% - 81%
80% - 61%
60% - 41%
40% - 21%
20% - 1%
0%
(When battery is not installed on bicycle)
0%, Power off / Shutdown
(When battery is installed on bicycle)
*1 : No light : Lit up : Blinking
