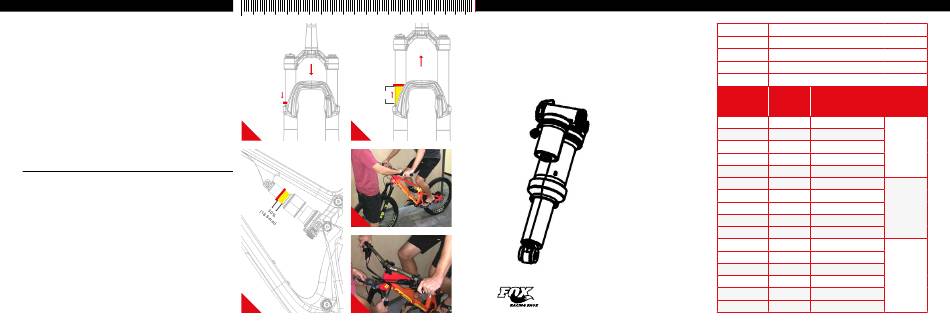

setting the sag //
1. Remove fork and shock air caps and be sure you have a
shock pump and a small ruler or measuring device handy.
2. Go ahead and hop on the bike. Be sure to place
all your weight on the seat with the dropper in the
up position and both hands on the grips.
3. Give the bike 5-6 moderate bounces and
sit back down on the saddle.
4. Now have your friend slide both the rear shock and the front fork
o-rings down against the seal lip of the damper bodys (Image #1).
5. Step off the bike nice and easy. Be sure to not compress
the suspension after the o-rings have been set.
P r o T i p
Here is where having a friend helps. Have them straddle the front
wheel and pull the handle bars in a upward direction as to not allow the
suspension to compress as you get off (Image #4).
6. Using your measuring device, measure the gap between
the suspension seal lip and the o-ring. Using the chart
on the following page will tell you if you need more air
pressure or less air pressure (Images #2, #3).
7. Adjust air pressure with your shock pump accordingly (Image #5).
8. Re-visit steps 2-6 until your desired sag
measurement have been reached.
9. Install valve caps.
8 // t a z e r u s e r m a n u a l
cm 1 2 3 4 5 6 7
Release compression.
Measure gap from
o-ring to seal lip.
While suspension
is compressed on
fork or rear shock,
slide o-ring down
against the seal lip
of damper body.
20%
(30mm)
1 2
4
3 5
8 9 10
shock setup //
Proper set up and tuning can vary from shock to shock. Please consult
the Fox manual included with your bike for complete information about
set up, tuning and general maintenance or visit www.foxracingshox.com
FOX FLOAT dpx2
185 x 55mm
Travel
Shock Stroke
Shock Sag
Fork Sag
Shock
RIDER WEIGHT Air Pressure
(LBS/KGS) (PSI)
130
100 lbs/ 45 kgs
110 lbs/ 50 kgs 145
120 lbs/ 54 kgs 160
175
130 lbs/ 59 kgs
140 lbs/ 63.5 kgs 190
NOTE:
150/ 68 kgs 205
• FLOAT DPX2 shocks have a maximum
160/ 73 kgs 220
pressure of 350psi (24.1 bar).
235
• Max rider weight for the DPX2 shock on 170/ 77 kgs
the Tazer is 250 lbs / 113 kg based on
180/ 82 kgs 250
30% sag requirement and DPX2 shock
190/ 86 kgs 265
max air pressure of 350 psi.
200/ 91 kgs 280
• Max rider weight for TAZER frame
is 300 lbs / 136 kg. 295
210/ 95 kgs
• Please contact the Intense Cycles Tech
220/ 100 kgs 310
Center for shock fitment options.
230/ 104 kgs 325
340
240/ 109 kgs
350
250/ 113 kgs
155 mm (6.1")
55 mm (2.15")
30% when sitting on the bike
20% when sitting on the bike
Fox Float DPX2 Shock 185 x 55 mm
REBOUND
(clicks out from fully closed) Low Speed
Closed is Clockwise Compression
Open is Counter Clockwise
11
10
9 10 Clicks Out
9
8
8
7
7 8 Clicks Out
6
6
5
5
4
6 Clicks Out
3
2
2
