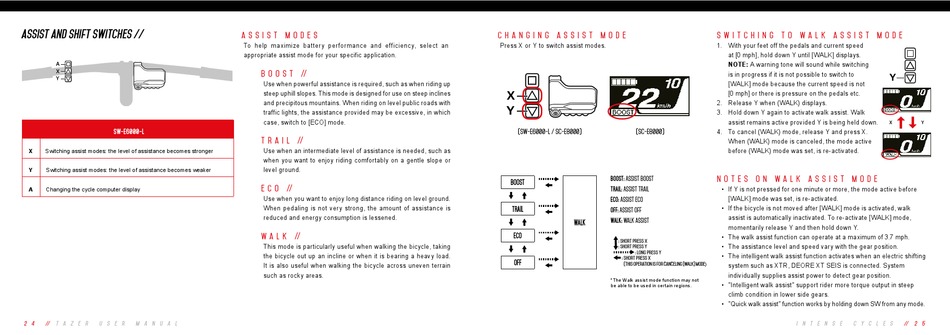

assist and shift switches //

A
X
Y
SW-E6000-L
X Switching assist modes: the level of assistance becomes stronger
Y Switching assist modes: the level of assistance becomes weaker
A Changing the cycle computer display
2 4 // t a z e r u s e r m a n u a l
a s s i s t m o d e s
To help maximize battery performance and efficiency, select an
appropriate assist mode for your specific application.
B O O S T //
Use when powerful assistance is required, such as when riding up
steep uphill slopes. This mode is designed for use on steep inclines
and precipitous mountains. When riding on level public roads with
traffic lights, the assistance provided may be excessive, in which
case, switch to [ECO] mode.
t r a i l //
Use when an intermediate level of assistance is needed, such as
when you want to enjoy riding comfortably on a gentle slope or
level ground.
e c o //
Use when you want to enjoy long distance riding on level ground.
When pedaling is not very strong, the amount of assistance is
reduced and energy consumption is lessened.
w a l k //
This mode is particularly useful when walking the bicycle, taking
the bicycle out up an incline or when it is bearing a heavy load.
It is also useful when walking the bicycle across uneven terrain
such as rocky areas.
Y1 X1
Y1 X1
Y1 X1
Y1 X1
C h a n g i n g a s s i s t m o d e
Press X or Y to switch assist modes.
X
Y
(SW-E6000-L / SC-E8000) (SC-E8000)
Y X
BOOST: Assist boost
BOOST Assist high
Assist high
Assist high
TRAIL: Assist trail
Assist normal Assist high
Assist normal
Assist normal
Assist normal Assist eco
ECO: Assist eco
Assist eco
Assist eco
Assist eco
Assist off
TRAIL
Assist off
OFF: Assist off
Assist off
Walk assist Assist off
Walk assist
WALK: Walk assist Walk assist
WALK
Walk assist
: Short press Y1
ECO : Short press Y1
: Short press Y1
: Short press X1 : Short press Y1
: Short press X
: Short press X1
: Short press X1
: Short press Y
: Short press X1
: Long press Y1
: Long press Y1
: Long press Y
: Long press Y1
: Short press X1 (This operation is for canceling : Long press Y1
: Short press X
: Short press X1 (This operation is for canceling
OFF : Short press X1 (This operation is for canceling
: Short press X1 (This operation is for canceling (This operation is for canceling [WALK] mode)
[WALK] mode)
[WALK] mode)
[WALK] mode)
[WALK] mode)
*The Walk assist mode function may not
be able to be used in certain regions.
X1
X1
Y1
Y1
Y1
Y1
s w i t c h i n g t o w a l k a s s i s t m o d e
1. With your feet off the pedals and current speed
SC-E6010
SC-E6010
at [0 mph], hold down Y until [WALK] displays. SC-E6010
SC-E6010
NOTE: A warning tone will sound while switching
is in progress if it is not possible to switch to
[WALK] mode because the current speed is not
[0 mph] or there is pressure on the pedals etc.
2. Release Y when (WALK) displays.
3. Hold down Y again to activate walk assist. Walk
assist remains active provided Y is being held down.
4. To cancel (WALK) mode, release Y and press X.
When (WALK) mode is canceled, the mode active
before (WALK) mode was set, is re-activated.
N O T E s o n w a l k a s s i s t m o d e
• If Y is not pressed for one minute or more, the mode active before
BOOST
BOOST
BOOST
[WALK] mode was set, is re-activated. BOOST
• If the bicycle is not moved after [WALK] mode is activated, walk
TRAIL
assist is automatically inactivated. To re-activate [WALK] mode,
TRAIL
TRAIL
TRAIL
momentarily release Y and then hold down Y.
WALK
WALK
WALK
• The walk assist function can operate at a maximum of 3.7 mph. WALK
ECO
ECO
ECO
• The assistance level and speed vary with the gear position.
ECO
• The intelligent walk assist function activates when an electric shifting
system such as XTR, DEORE XT SEIS is connected. System OFF
OFF
OFF
OFF
individually supplies assist power to detect gear position.
• "Intelligent walk assist" support rider more torque output in steep
climb condition in lower side gears.
• "Quick walk assist" function works by holding down SW from any mode.
I N T E N S E C Y C L E S
Y
X Y
