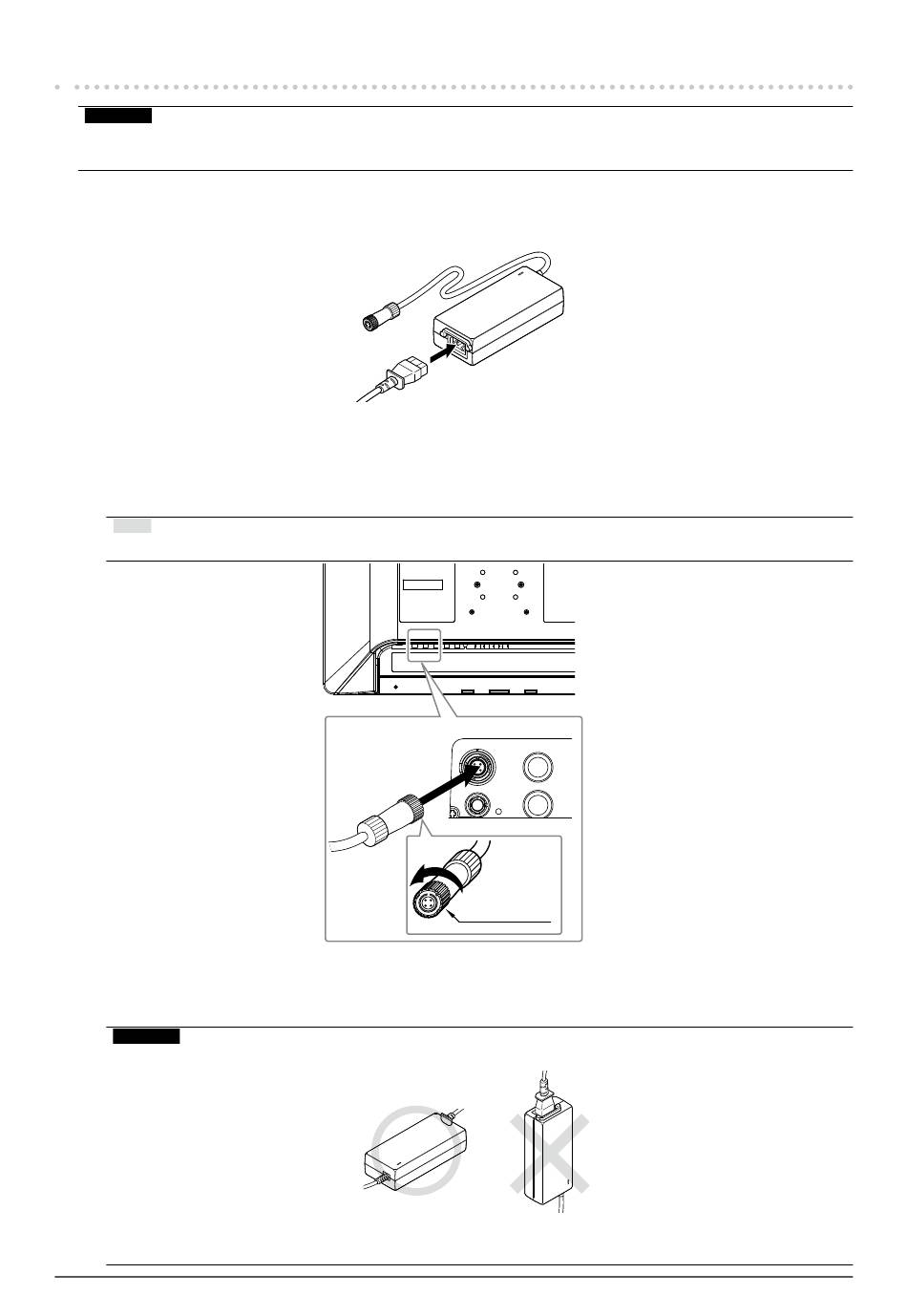

2-3. Connecting the Power Cord

Attention
• Turn off the monitor before connecting it.
• When removing the power cord, always remove the power plug from the power outlet first.
1.
Connect the power cord to the AC IN terminal on the AC adapter.
Insert the power cord all the way to the back.
2.
Connect the DC OUT terminal of the AC adapter to the DC IN terminal on the
monitor.
Align the connector shape with the port shape, rotate the lock ring clockwise, and fix it securely.
Note
• If the lock ring does not rotate easily, push it in further and retry it.
3.
Check the rated value on the AC adapter and connect the power plug to the
power outlet.
Attention
• Do not install the AC adapter in a vertical position with the power plug inserted from the top.
• Secure the adapter using a banding band such as a cable tie as necessary to prevent it from dropping.
18
Chapter 2 Installation / Connection
Lock ring
OK: Horizontal position NG: Vertical position
