4. Secure the 36-inch guard-bumper ring assembly to the
30-inch guard ring with the twelve M8-1.25 × 25 mm
HHC screws and M8-1.25 nyloc nuts (Figure 23).
30" GUARD
M8-1.25 × 25 mm
RING
M8-1.25
NYLOC NUT

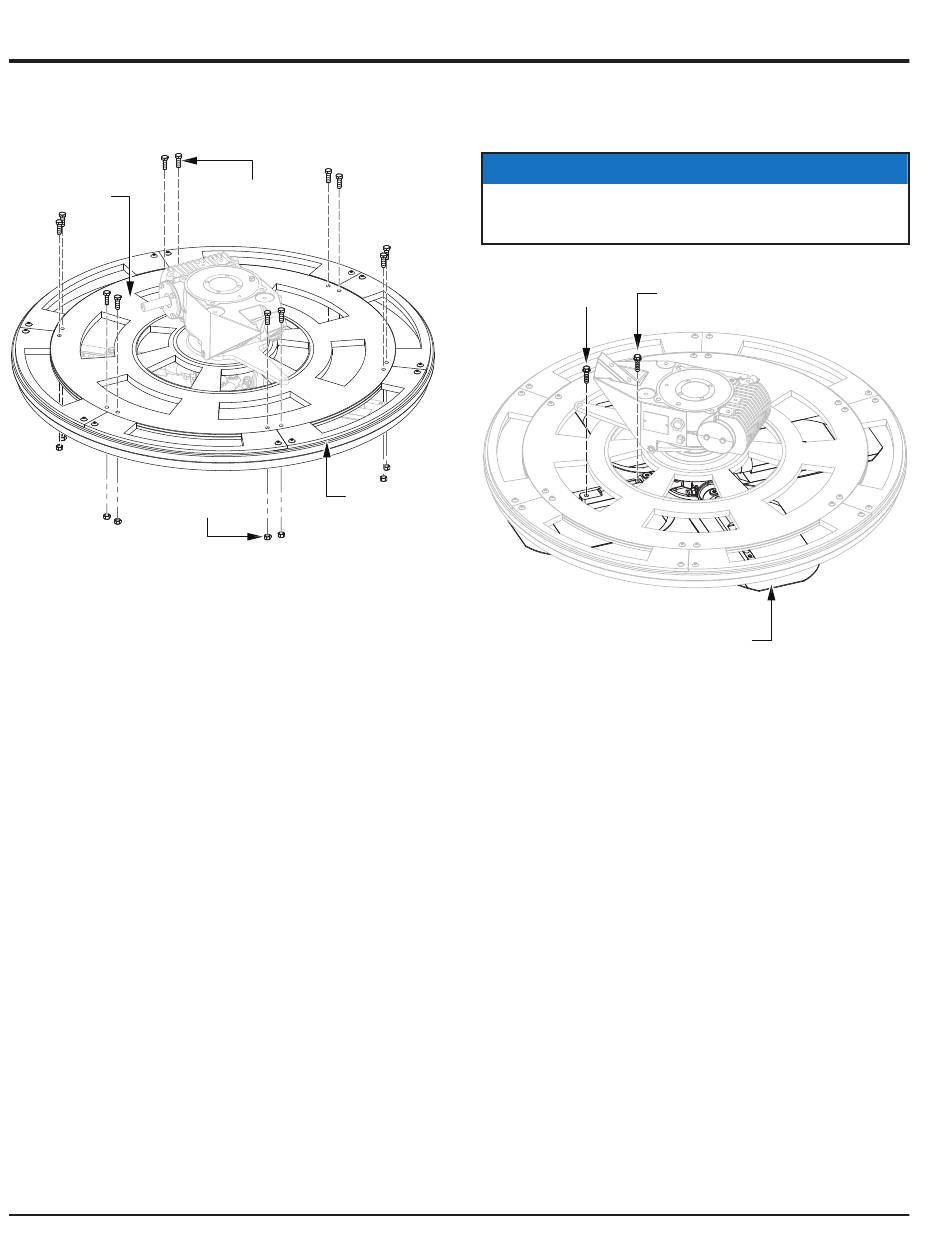

Figure 23. 36-Inch Guard-Bumper Ring
Assembly Installation
PAGE 28 — J3036H55 WALK-BEHIND TROWEL • OPERATION MANUAL — REV. #0 (06/27/18)
HHC SCREW
36"
GUARD-BUMPER
RING ASSEMBLY
5. Secure four 8" × 14" trowel blades to the spider
assembly with four 5/16-18 × 1-1/4" HHFS screws and
5/16-18 × 1-1/2" HHFS screws (Figure 24).
NOTICE
DO NOT install trowel blades that extend beyond the
outermost diameter of the guard ring bumper.
5/16-18 × 1-1/4"
5/16-18 × 1-1/2"
HHFS SCREW
TROWEL BLADE
Figure 24. 14-Inch Trowel Blade Installation
SETUP
HHFS SCREW
8" × 14"
