Dimensions - MULTIQUIP Whiteman series Operation Manual

A
B
STANDARD HANDLE SHOWN
C D
(A) Height (Handle)
(B) Height (Lifting Bail)
(C) Width (Outer Ring Diameter)
(D) Width (Inner Ring Diameter)
(E) Length (Lift Bracket Disengaged)
(F) Length (Lift Bracket Engaged)
J3036H55 WALK-BEHIND TROWEL • OPERATION MANUAL — REV. #0 (06/27/18) — PAGE 15
F

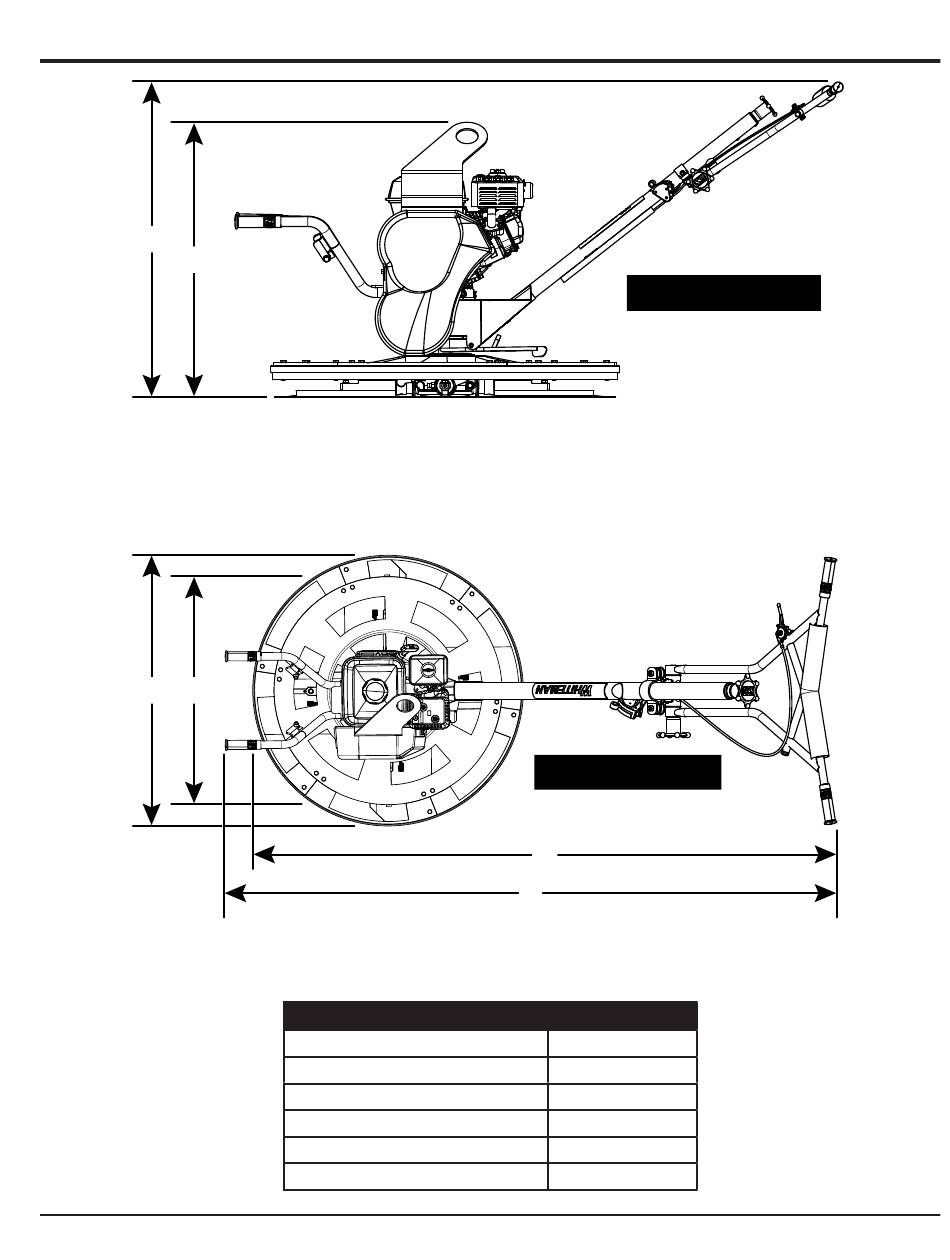

Figure 2. J3036H55 Dimensions
Table 4. J3036H55 Dimensions
SIDE VIEW
TOP VIEW
E
41 in. (1,044 mm)
28 in. (714 mm)
36 in. (914 mm)
30 in. (762 mm)
70 in. (1,789 mm)
72 in. (1,829 mm)

DIMENSIONS
