36-Inch to 30-Inch Guard Ring Conversion
1. Remove and retain the four 5/16-18 × 1-1/4"
HHFS screws and four 5/16-18 × 1-1/2" HHFS
screws securing the 8" × 14" trowel blades to the
spider assembly (Figure 17).
5/16-18 × 1-1/4"
5/16-18 × 1-1/2"
HHFS SCREW
TROWEL BLADE

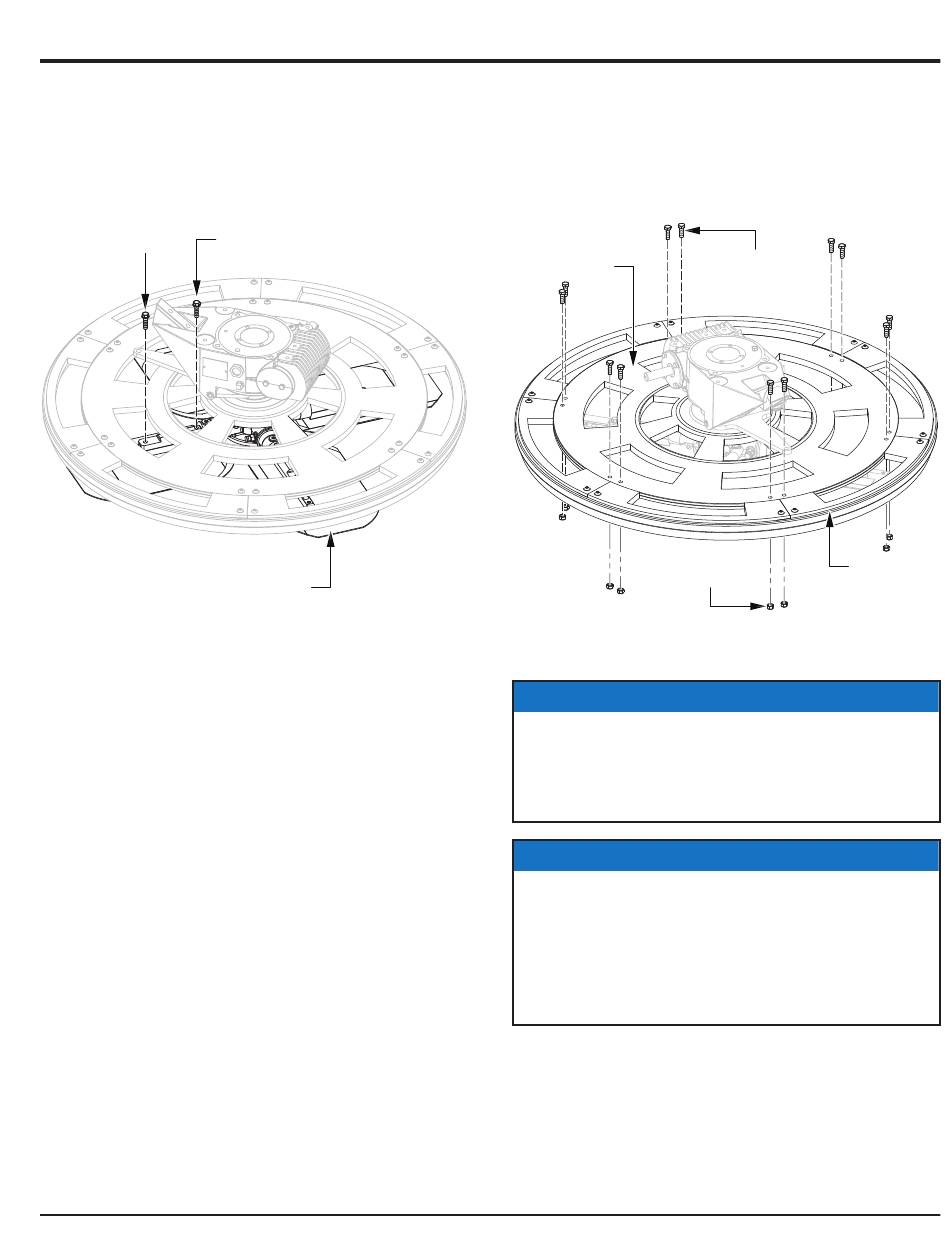

Figure 17. 14-Inch Trowel Blade Removal
J3036H55 WALK-BEHIND TROWEL • OPERATION MANUAL — REV. #0 (06/27/18) — PAGE 25
HHFS SCREW
8" × 14"
2. Remove the twelve M8-1.25 × 25 mm HHC screws and
M8-1.25 nyloc nuts securing the 36" guard-bumper
ring assembly to the 30" guard ring (Figure 18). Retain
all twelve nyloc nuts and six of the M8-1.25 × 25 mm
screws for installation of the 30" guard-bumper ring
assembly.
30" GUARD
M8-1.25 × 25 mm
RING
M8-1.25
NYLOC NUT
Figure 18. 36-Inch Guard-Bumper Ring
Assembly Removal
NOTICE
DO NOT discard the six remaining M8-1.25 × 25 mm
screws! Retain them in a safe location, as they will be
needed when converting the trowel back to the 36"
guard ring configuration.
NOTICE
The 36" guard-bumper ring assembly is designed
to be removed and reinstalled without being fully
disassembled. The 36" guard-bumper ring assembly
consists of six guard ring segments, a bumper ring,
and a bumper. For ease of installation, leave these
components assembled.
3. Locate the bag containing six M8-1.25 × 45 mm HHC
screws provided for installation of the 30" guard-bumper
ring assembly. Remove the screws from the packaging.
SETUP
HHC SCREW
36"
GUARD-BUMPER
RING ASSEMBLY
