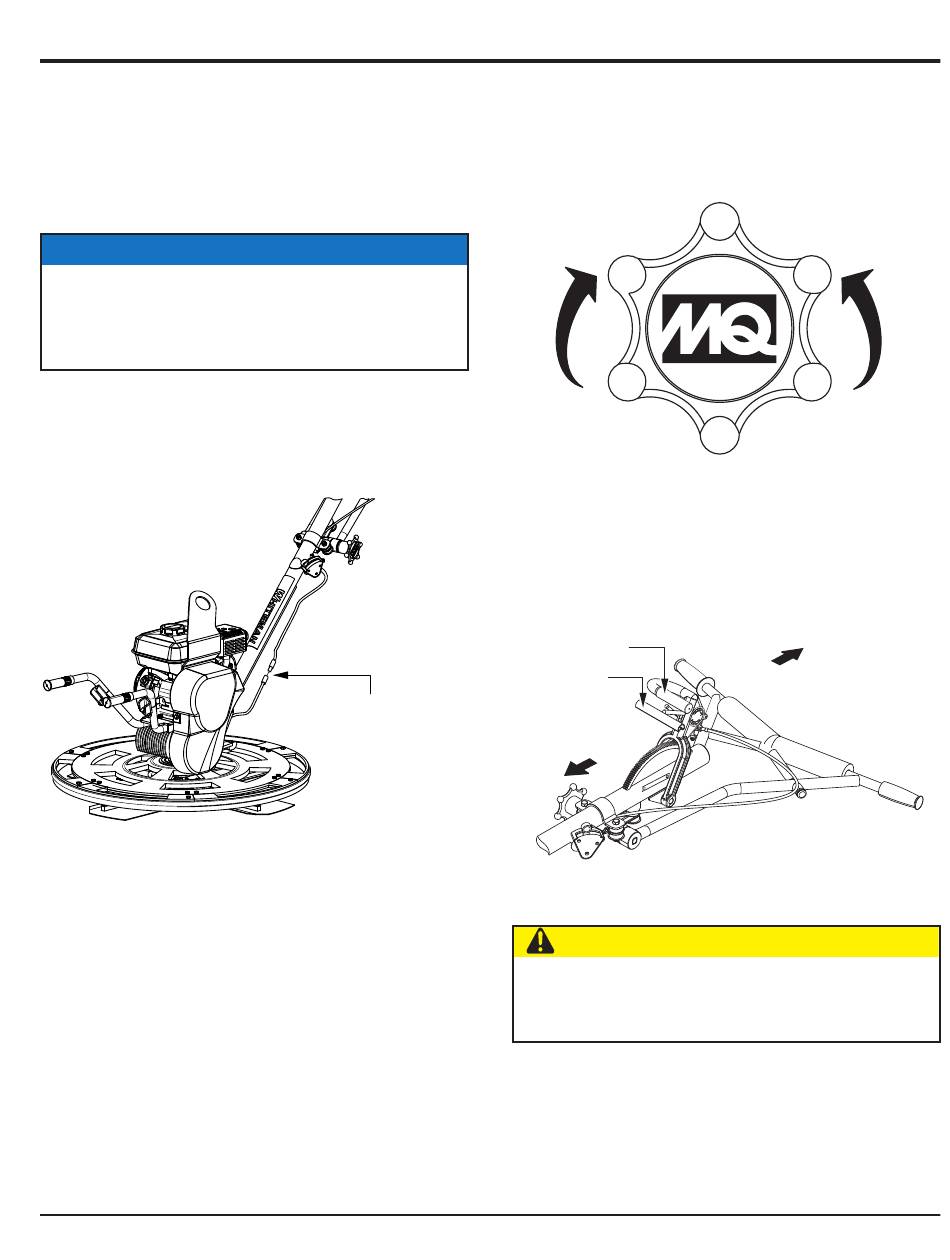

MULTIQUIP Whiteman series Operation Manual page 23

9. Route the throttle wire approximately 1/2 inch past the
cable retaining screw (Figure 10). Tighten the cable
retaining screw to secure the throttle wire.
10. Adjust cable tension as needed by loosening or
tightening the locking nut and cable retaining screw
on the throttle lever (Figure 10).
NOTICE
If the throttle lever does not return to the neutral position
with the throttle backed off, loosen the adjusting nut
1/2 turn at a time, tighten, and recheck. Readjust throttle
tension as necessary.
Centrifugal Safety Stop Switch Connection
Connect the black tail wire from the engine to the black
safety stop wire from the centrifugal stop switch as shown
in Figure 11.
Figure 11. Centrifugal Safety Stop Switch
Connection
J3036H55 WALK-BEHIND TROWEL • OPERATION MANUAL — REV. #0 (06/27/18) — PAGE 23
SAFETY STOP WIRE
CONNECTION POINT
Blade Pitch Cable Installation
1. For trowels equipped with a standard handle (SXH),
turn the star wheel counterclockwise to release
tension on the blade pitch cable. See Figure 12.
INCREASE
BLADE PITCH
(CW)
Figure 12. Blade Pitch Cable Adjustment
(Standard Handle)
2. For trowels equipped with a Quick Pitch™ handle
(QXH), squeeze the trigger lock and push the T-handle
towards the engine to release tension on the blade pitch
cable. See Figure 13.
T-HANDLE
TRIGGER
LOCK
NO
PITCH
Figure 13. Blade Pitch Cable Adjustment
(Quick Pitch™ Handle)
CAUTION
The Quick Pitch™ T-handle is under spring tension and
can snap in the direction of force (toward the user) if not
firmly grasped, which may cause bodily injury.
SETUP
DECREASE
BLADE PITCH
(CCW)
FULL
PITCH
