KI FourC Task Chair Repair & Replacement Instructions

seat
(underside)
seat slide
limiter
flat head
screwdriver
Detail A
Figure 1
seat
(underside)
seat slide
limiter
Detail C
seat
(underside)
seat slide
mechanism
lever
Detail D
Figure 2
Repair & Replacement Instructions
seat
channel
FourC™ Seating
Seat Replacement
May 2020
seat
channel
opening
flat head
screwdriver
seat slide
limiter
Detail B
seat
Figure 3
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

Tools Required

• Flat Head Screwdriver

FourC Seat Removal

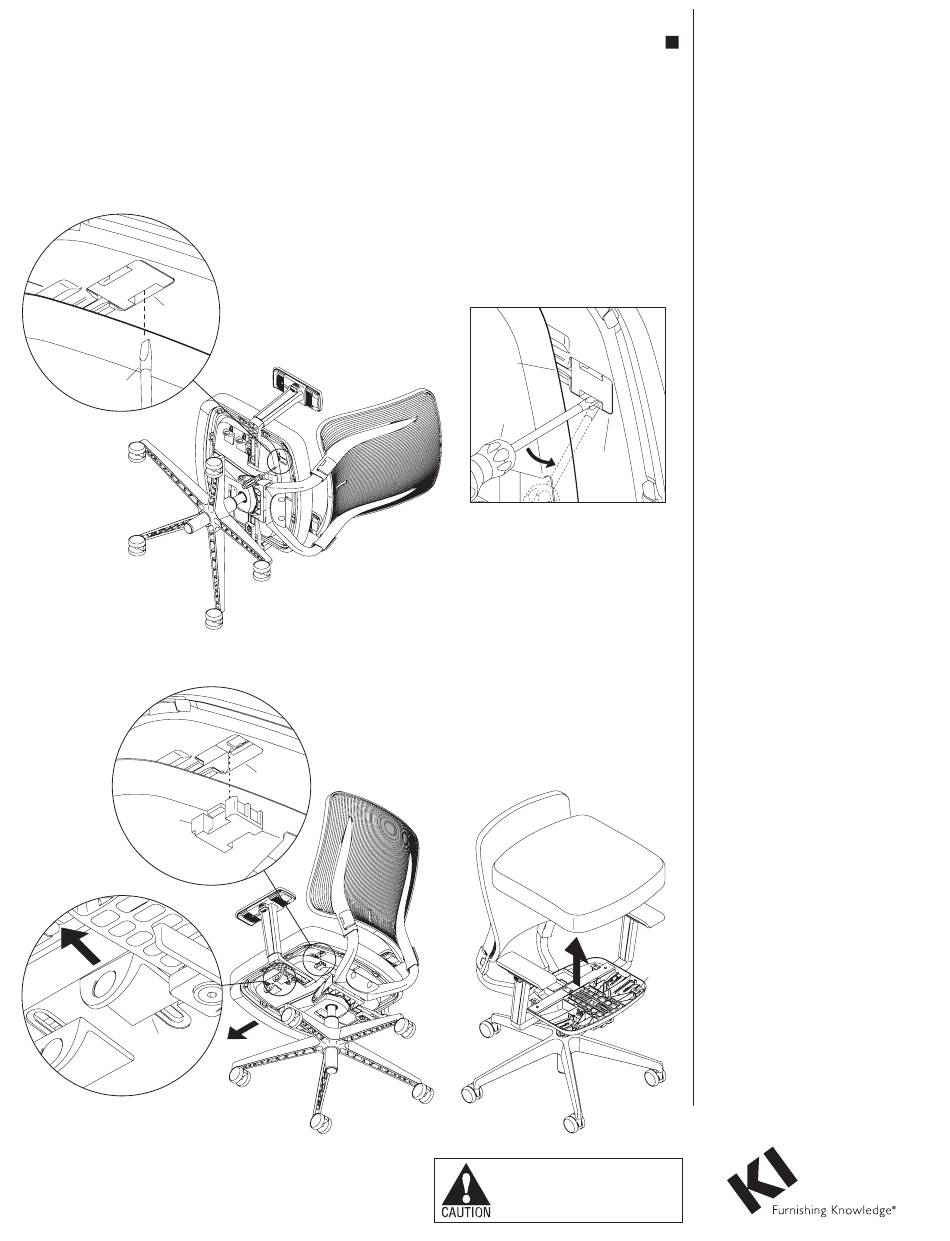

1. Locate the two seat slide limiters
underneath the back of the seat
as illustrated. Using a flat head
screwdriver, carefully remove the
limiters from the larger opening of
the seat channels (Figure 1, Details
A & B).
2. After the seat slide limiters have
been removed, pull the seat slider
mechanism lever out and slide the
seat mechanism all the way forward
(Figure 2, Details C & D).
3. Carefully lift the seat assembly
straight up off the seat mechanism
(Figure 3).
locator
glide
