Axxess ASWC-1 Installation Instructions page 3

PROGRAMMING
• Program the ASWC-1 as noted in the ASWC-1 vehicle specific document.

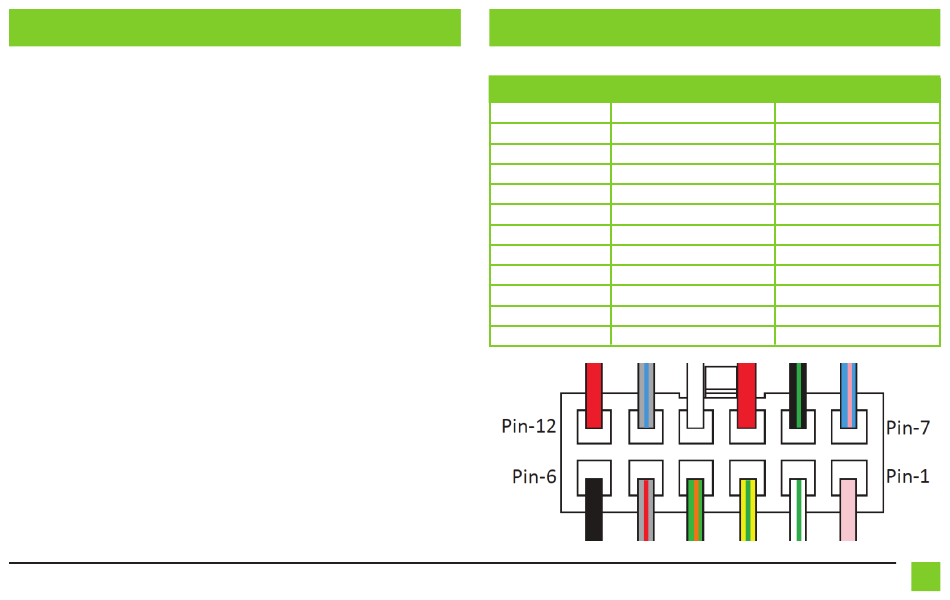

WIRE DESCRIPTION
Pin Cavity Wire Color
1
2 White/Green
3 Yellow/Green
4 Green/Orange
5 Gray/Red
6
7 Blue/Pink
8 Black/Green
9 Red (skinny)
10 White (skinny)
11 Gray/Blue
12
REV. 11/15/2018 INSTASWC-1 GENERAL INSTRUCTIONS
Input Description
Pink CAN-HI or Serial Data
Negative SWC
Positive SWC
Negative SWC
Negative SWC
Black Chassis Ground
CAN-LO
Negative SWC
Tip of 3.5 jack
Ring of 3.5 jack
Negative SWC
Red Accessory Power
3
