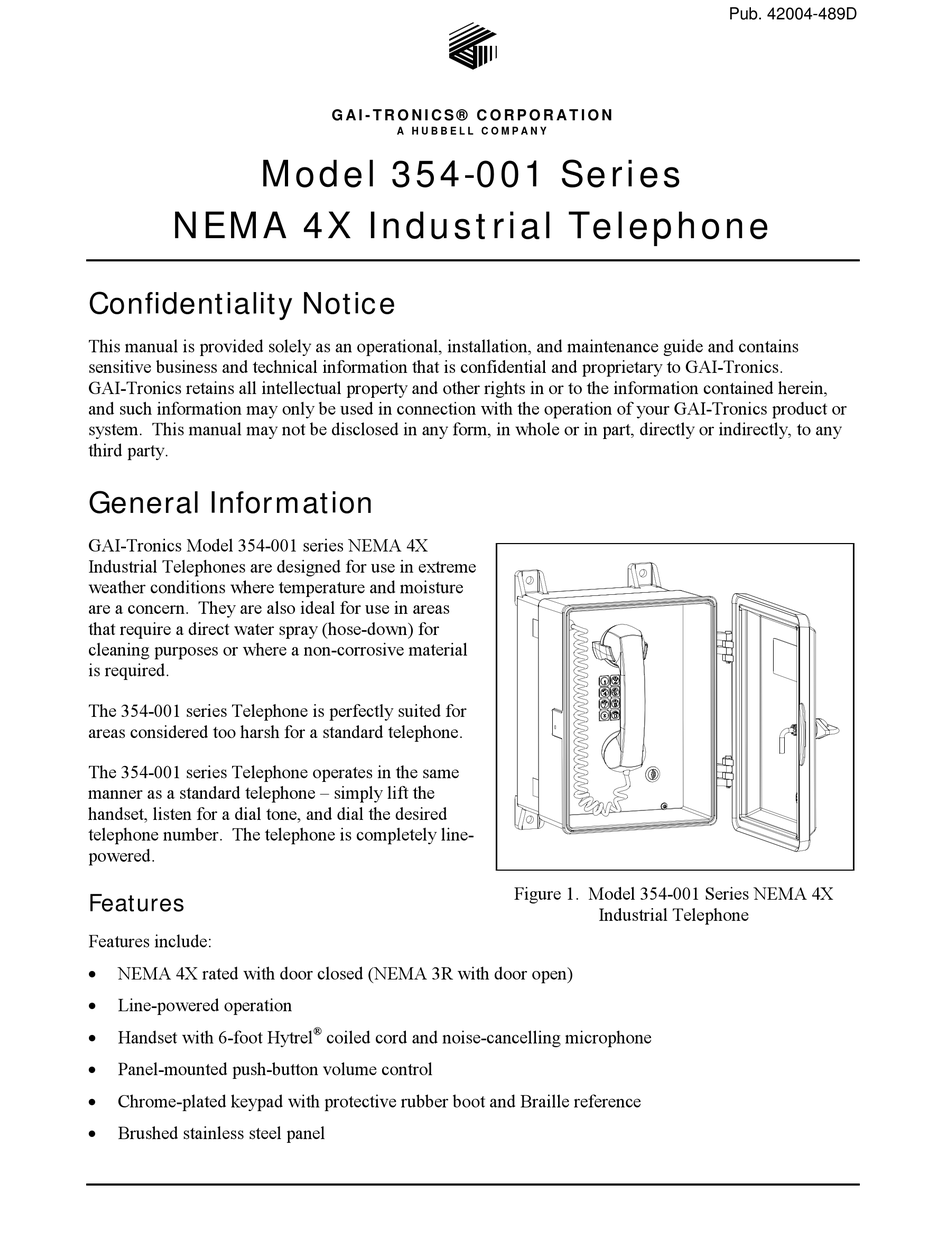

Model 354-001 Series
NEMA 4X Industrial Telephone
Confidentiality Notice
This manual is provided solely as an operational, installation, and maintenance guide and contains
sensitive business and technical information that is confidential and proprietary to GAI-Tronics.
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein,
and such information may only be used in connection with the operation of your GAI-Tronics product or
system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any
third party.
General Information
GAI-Tronics Model 354-001 series NEMA 4X
Industrial Telephones are designed for use in extreme
weather conditions where temperature and moisture
are a concern. They are also ideal for use in areas
that require a direct water spray (hose-down) for
cleaning purposes or where a non-corrosive material
is required.
The 354-001 series Telephone is perfectly suited for
areas considered too harsh for a standard telephone.
The 354-001 series Telephone operates in the same
manner as a standard telephone – simply lift the
handset, listen for a dial tone, and dial the desired
telephone number. The telephone is completely line-
powered.
Features
Features include:
NEMA 4X rated with door closed (NEMA 3R with door open)
Line-powered operation
Handset with 6-foot Hytrel
Panel-mounted push-button volume control
Chrome-plated keypad with protective rubber boot and Braille reference
Brushed stainless steel panel
G A I - T R O N I C S ® C O R P O R A T I O N
A H U B B E L L C O M P A N Y
®
coiled cord and noise-cancelling microphone

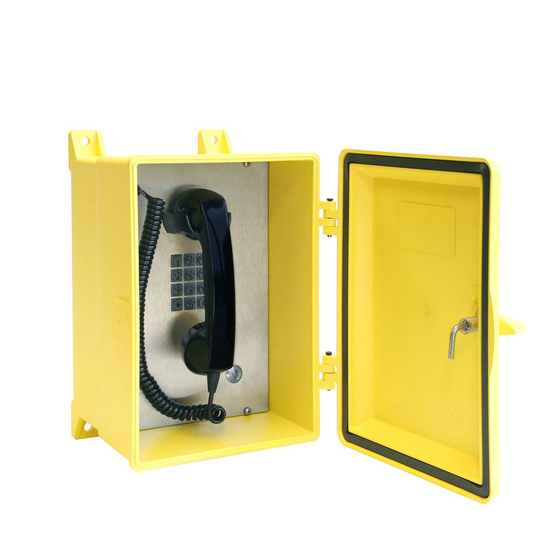

Figure 1. Model 354-001 Series NEMA 4X
Industrial Telephone
Pub. 42004-489D
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GAI-Tronics 354-001 series
Summary of Contents for GAI-Tronics 354-001 series
-
Page 1: General Information
GAI-Tronics retains all intellectual property and other rights in or to the information contained herein, and such information may only be used in connection with the operation of your GAI-Tronics product or system. This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third party. -
Page 2: Ordering Information
Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 2 of 10 Ordering Information The Model 354-001 series NEMA 4X Industrial Telephone is available in three standard models: Table 1. Model Chart Model Description 354-001 NEMA 4X Industrial Telephone, Gray... -
Page 3: Security Hardware
Seal all conduit entrances around the entry point and inside the conduit using a silicone- type sealant. The Model 354-001 series Telephones are not supplied with openings for conduit or cable because of potential installation variations. Conduit entrances must be installed prior to mounting the enclosure to the wall surface. -
Page 4: Mounting The Enclosure
Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 4 of 10 Mounting the Enclosure Mount the enclosure using the four 0.437-inch (11mm) diameter holes located on the mounting flanges with 3/8-inch (M8) hardware. For specific details, including mounting hole dimensions and spacing, refer to Figure 2. -
Page 5: Wiring And Testing
Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 5 of 10 Wiring and Testing 1. If mounting outdoors, install a lightning arrestor/suppressor (customer-supplied) on the telephone line. 2. Connect the incoming subscriber line (red and green) or line suppressor to the Main PCBA terminal strip. -
Page 6: Ring Relay Kit
Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 6 of 10 Figure 4. TB1 Terminal Block on Industrial Telephone PCBA Ring Relay Kit The Ring Relay Kit allows the telephone to activate a peripheral device, such as a beacon or sounder, when ring voltage is present. -
Page 7: Ring Relay Wiring
Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 7 of 10 Ring Relay Wiring 1. Connect the incoming subscriber line to the TB1 terminal block. See Figure 5. 2. Connect the external sounder or beacon to TB2 for activation with an incoming telephone call. See Figure 5 and Figure 6. -
Page 8: Operation
Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 8 of 10 Operation 1. Lift the handset to place a call. 2. The handset receiver volume control, which is located on the stainless steel front panel, can be adjusted to the desired level by momentarily pressing the push button. -
Page 9: Replacement Parts And Accessories
Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 9 of 10 IC Information (Canada) IC Certification Number ........................ 82211754 Ringer Equivalence Number (REN) ....................1.0A/1.3B Connecting Method ..........................CA11A Mechanical Enclosure (gray, yellow, orange, or red) ................Engineered plastic ®... - Page 10 Pub. 42004-489D Model 354-001 Series NEMA 4X Industrial Telephone Page 10 of 10 User Instructions (USA) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 11: Warranty
Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed-upon quotation or proposal document.
