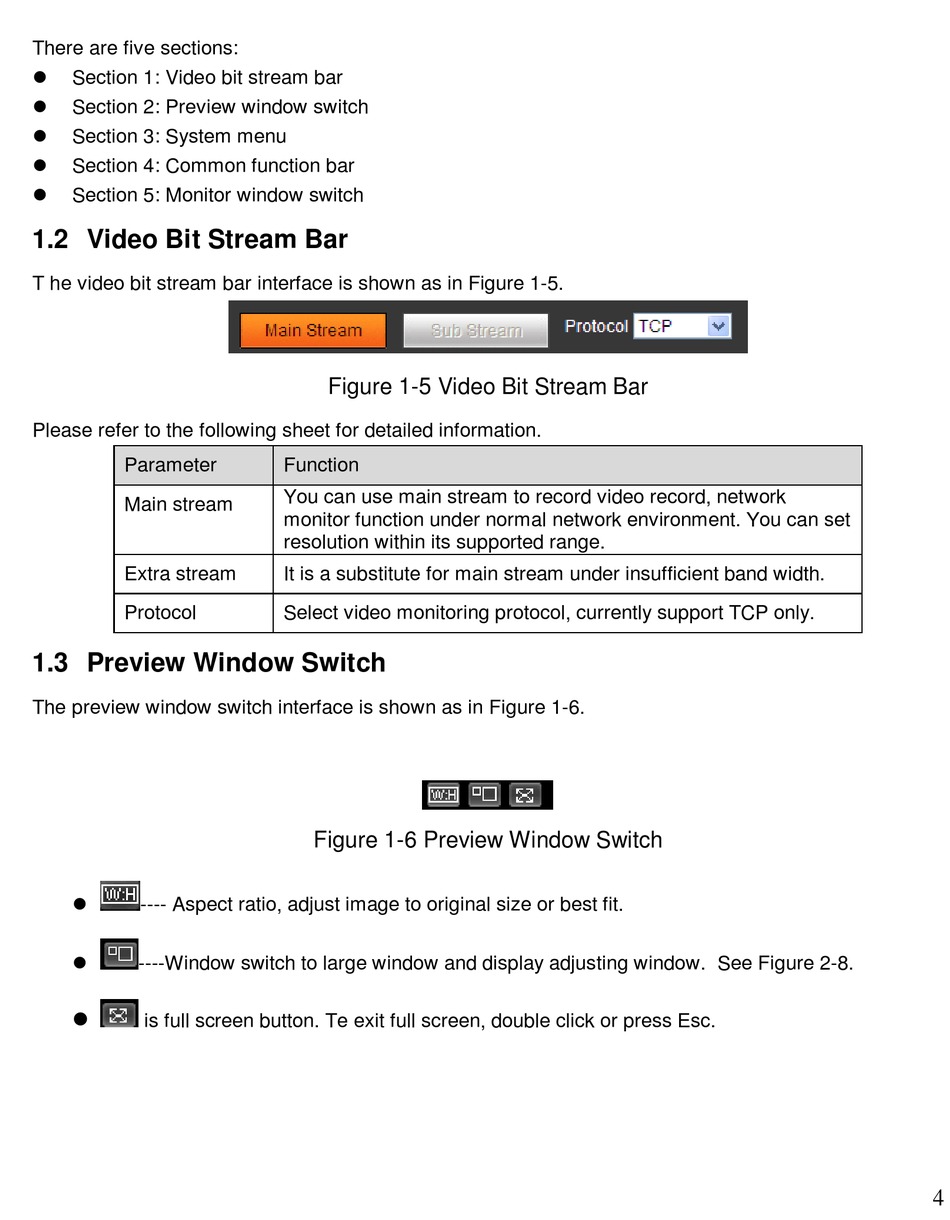

There are five sections:
Section 1: Video bit stream bar
Section 2: Preview window switch
Section 3: System menu
Section 4: Common function bar
Section 5: Monitor window switch

1.2 Video Bit Stream Bar

T he video bit stream bar interface is shown as in Figure 1-5.
Please refer to the following sheet for detailed information.
Parameter
Main stream
Extra stream
Protocol

1.3 Preview Window Switch

The preview window switch interface is shown as in Figure 1-6.
---- Aspect ratio, adjust image to original size or best fit.
----Window switch to large window and display adjusting window. See Figure 2-8.
is full screen button. Te exit full screen, double click or press Esc.
Figure 1-5 Video Bit Stream Bar
Function
You can use main stream to record video record, network
monitor function under normal network environment. You can set
resolution within its supported range.
It is a substitute for main stream under insufficient band width.
Select video monitoring protocol, currently support TCP only.
Figure 1-6 Preview Window Switch
4
