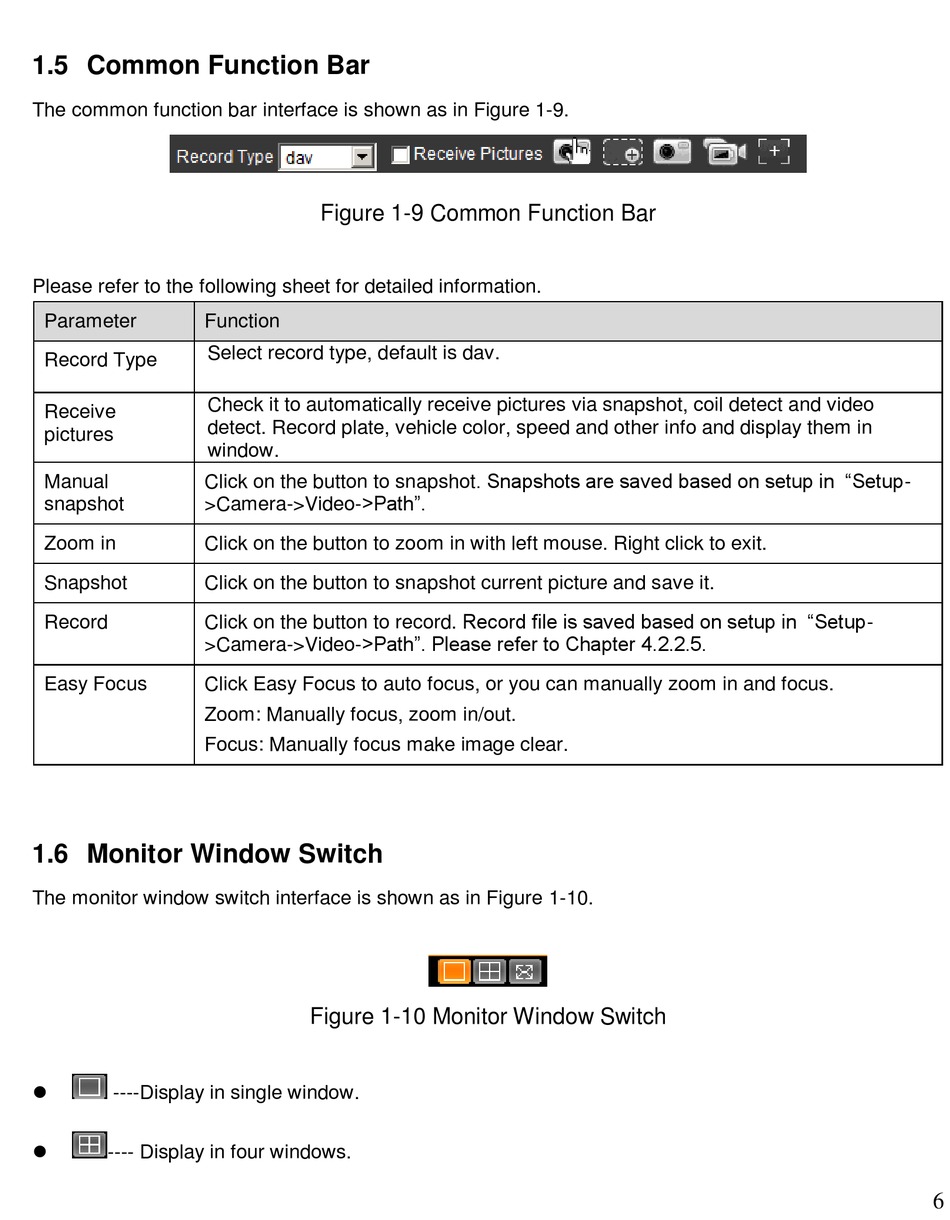

1.5 Common Function Bar

The common function bar interface is shown as in Figure 1-9.
Please refer to the following sheet for detailed information.
Parameter Function
Select record type, default is dav.
Record Type
Check it to automatically receive pictures via snapshot, coil detect and video
Receive
detect. Record plate, vehicle color, speed and other info and display them in
pictures
window.
Click on the button to snapshot. Snapshots are saved based on setup in "Setup-
Manual
snapshot >Camera->Video->Path".
Zoom in Click on the button to zoom in with left mouse. Right click to exit.
Snapshot Click on the button to snapshot current picture and save it.
Click on the button to record. Record file is saved based on setup in "Setup-
Record
>Camera->Video->Path". Please refer to Chapter 4.2.2.5.
Easy Focus Click Easy Focus to auto focus, or you can manually zoom in and focus.
Zoom: Manually focus, zoom in/out.
Focus: Manually focus make image clear.

1.6 Monitor Window Switch

The monitor window switch interface is shown as in Figure 1-10.

----Display in single window.

---- Display in four windows.
Figure 1-9 Common Function Bar
Figure 1-10 Monitor Window Switch
