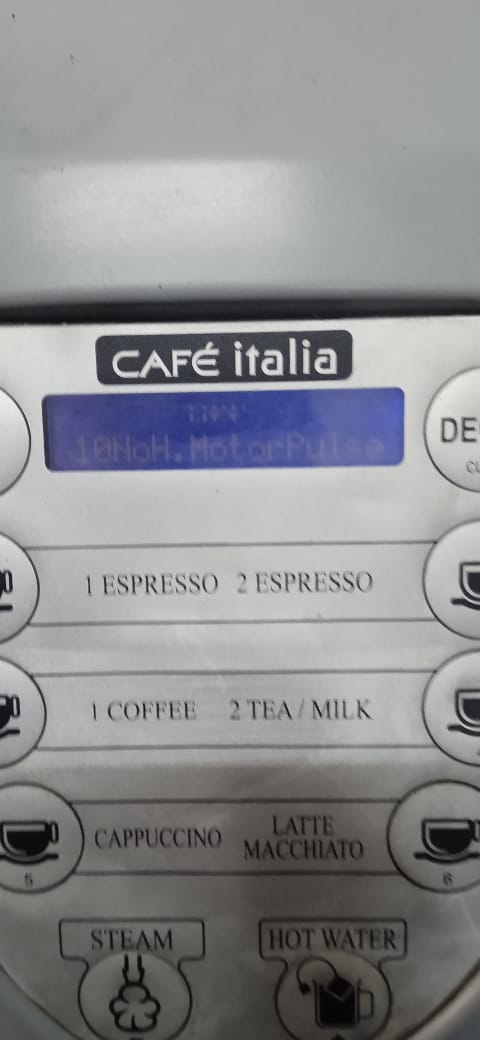

my carimali coffee machine getting 10 no motor pulse problem

User image 6860e95081975
0

Related Manuals for Carimali Multi Smart LM

Summary of Contents for Carimali Multi Smart LM

  • Page 1 TECHNICAL INSTRUCTIONS ENGLISH LB-05080.00 EN EDITION February 2014 www.carimali.com LB.05080.00 Pag.1 16/04/2014...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS GENERAL CHARACTHERISTICS ....................................5 TEST REPORT ON ENERGY CONSUMPTION ................................7 MACHINE KEYPAD ........................................... 7 ELECTRIC - HYDRAULIC CONNECTION ..................................8 STARTING UP ............................................. 9 ACCESS THE MAIN SETTING MENUS WITH PASSWORD ............................ 13 PROGRAMMABLE PARAMETERS IN ACCORDING WITH PASSWORD ......................14 INFO-RESET ............................................
  • Page 3 After unpacking check that the machine is not damaged. If in doubt, do not use the machine and contact an Carimali S.p.A. Authorized Service Centre. All packing materials (plastic wrapping, polystyrene, nails, etc.) are potentially dangerous and must be kept out of children’s reach and disposed of in a safe manner for the environment.
  • Page 4 With correct installation, care, maintenance and cleaning with approved detergent, Carimali meet the requirement above mentioned. Carry out cleaning instruction, provided with machine, every day or at 8 hours shift intervals, to ensure that your system contains a minimum bacteria.

  • Page 5: General Charactheristics

    GENERAL CHARACTHERISTICS MULTI SMART COF MULTI SMART LM Automatic coffee brewing unit Grinder Decaffeinated door Steam nozzle Automatic cappuccino Hot water dispenser Mix Group Optional Optional Mix cold water Optional Optional By - Pass Optional Optional Maximum quantity of coffee dispensed per hour...
  • Page 6 LB.05080.00 Pag.6 16/04/2014...

  • Page 7: Test Report On Energy Consumption

    TEST REPORT ON ENERGY CONSUMPTION Machine type: MULTI SMART Coffee / Steam boiler heating element 2.7 KW, boiler 4 lt MEASUREMENT Machine load 0.940 KW Environment temperature: 21°C HEAT UP PHASE Consumption 0.3 KW/h To reach operational steam/coffee boiler temperature, 124°C, in 8’.20” (min, sec) HU = 300W/h IDLE PHASE Consumption 3.2 KW/24h...

  • Page 8: Electric - Hydraulic Connection

    ELECTRIC - HYDRAULIC CONNECTION H2O IN (1-6 Bar) H2O OUT WATER WATER SOFTNER FILTRE LB.05080.00 Pag.8 16/04/2014...

  • Page 9: Starting Up

    STARTING UP After having connected the machine to the water and electric networks, turn the switch on (see diagram). The display shows: LB.05080.00 Pag.9 16/04/2014...
  • Page 10 keep key n°9 (shift) pressed and then press key n° 10 ( info), and the machine will set itself to on state. Filling - up steam boiler During this stage the steam boiler is being filled up. WARNING : The solenoid valve of the milker steam automatically opens to release the air inside the boiler. When the steam boiler has been filled up, the display shows: During this stage the exchanger is being filled up WARNING :...
  • Page 11 INSERT PASSWORD TO TURN ON - - - - - After insert the password ( 61111 ) the machine goes to on. To switch OFF the machine, open the front door or place the smart card and keep key n°9 (shift) pressed and then press key n°...
  • Page 12 SCHEMATIC SUMMARY OF STEAM AND COFFEE BOILER HEATING PHASE Heating element On Temperature sensor Please Wait ) Steam boiler Heating element Off Set-up ( Select Drink ) °C 0 °C Milk frother solenoid valve Solenoid valve open Solenoid valve close 95°C °C 0 °C...

  • Page 13: Access The Main Setting Menus With Password

    2 2 2 2 2 Service 3 3 3 3 3 Technician ( for Technician password contact the Carimali S.p.A. Technical Service ). After insert the password the display shows the main menu programming environments: Select - Info reset - Dose programming...

  • Page 14: Programmable Parameters In According With Password

    PROGRAMMABLE PARAMETERS IN ACCORDING WITH PASSWORD WAITER ROASTER OWNER SERVICE TECHNICIAN INFO - RESET Reard dose data Douse counter A Douse counter B System data Group cleaning Milker cleaning Power cleaner Grinder cycles Water filter Group cycles Total group cycles Total machine cycles DOSE PROGRAMMING Set doses...
  • Page 15 Day Off DISPLAY REGULATION Contrast Display mode Default colour Color shift menu 1 Color shift menu 2 SERVICE Clean/Rinse Cleaning time Cycle cleaning alarm Group cleaning Programming Group auto rinsing Milker cleaning program. Milker auto rinsing Maintenance set -up Water filter Machine service Grinders Group cycles...

  • Page 16: Info-Reset

    INFO-RESET Info reset - Read doses data - System data A1) READ DOSES DATA ( Doses counter A/B ) Info reset R ead doses data Enter - System data Press the + / - keys to select the count A R ead doses data or B.
  • Page 17 A2) READ DOSES DATA ( Reset doses counter A/B ) In fo r e s e t R e a d d o s e s d a t a E n te r - S y s te m d a ta R e a d d o s e s d a ta P r e s s t h e + / - k e y s t o s e le c t t h e c o u n t A o r B .
  • Page 18 B) INFO RESET SYSTEM DATA LB.05080.00 Pag.18 16/04/2014...
  • Page 19 THE FOLLOWING INFO ARE DISPLAYED ONLY WHEN THE CLOCK IS PROGRAMMED Enter Water filter Water filter + / - Enter XXXX YY - ZZZZ Confirm reset Water filter Enter XXXX YY - ZZZZ XXXX : Indicates the n° of water filter liters left. If the programmed n°...

  • Page 20: Doses Programming

    DOSES PROGRAMMING PLEASE NOTE :TO ACCESS TO THE DOSES PROGRAMMING THE MACHINE MUST BE AT THE SET-UP TEMPERATURE. Press the key N° 5 (-) and N° 6 (+) to select the parameter and then press the key 7(Enter) to confirm the selection. SET DOSES D o se P ro g ra m m in g = S e lec te d n °...
  • Page 21 Coffee Coffee+ Milk Steam DOSE Drink Milk Drink Drink drink Water PARAMETERS type type type type drink type DECAFFEINATED Enabled/Disabled GRIND TIME G1 PRE-INFUSION XX PAUSE XX sec. COFFEE WATER VOLUME XX EXTRA WATER XX START AFTER XX BOILER TEMPERATURE START COLD WATER cc.
  • Page 22 PRICE SET-UP LB.05080.00 Pag.22 16/04/2014...
  • Page 23 B2) Free drinks Price set-up - Doses price Free drinks Free drinks Enter Desable - Token value Press the +/ - keys to insert Enable or Desable the Free drink. Enter B3) Token value Price set-up - Doses price - Free drinks Price set-up Token value Enter...
  • Page 24 C ) CALIBRATION ( Grinder-Milker ) WARNING: If milk pump enabled , it is possible to set the pump speed by pressing +/- buttons during the delivery, the display shows : the set value will be saved in all drinks with steamed foamed milk. LB.05080.00 Pag.24 16/04/2014...

  • Page 25: System Manager

    SYSTEM MANAGER Press the key N° 7 (Enter) to confirm entering the desired environment. Press the key N° 8 (Esc) to exit. LB.05080.00 Pag.25 16/04/2014...
  • Page 26 SYSTEM CLOCK SET-UP LB.05080.00 Pag.26 16/04/2014...
  • Page 27 SERVICE LB.05080.00 Pag.27 16/04/2014...
  • Page 28 LB.05080.00 Pag.28 16/04/2014...
  • Page 29 LB.05080.00 Pag.29 16/04/2014...
  • Page 30 LB.05080.00 Pag.30 16/04/2014...
  • Page 31 LB.05080.00 Pag.31 16/04/2014...
  • Page 32 ALARM HISTORY ALARM DETAILS ALARM CODE NO H. MOTOR PULS NO L. MOTOR PULS H. MOTOR ERROR L. MOTOR ERROR FILLING UP T.O. STEAM HEAT T.O. CHECK FLOW LINE STEAM TEMPERATURE INFUSION T.O. CORRUPTED DATA CLOCK ERROR MOTOR BLOCK COIN VALIDATOR ERROR CHANGE H2O FILTER GROUP MAINTENANCE GRINDER MAINTENANCE...
  • Page 33 DISPLAY REGULATION LB.05080.00 Pag.33 16/04/2014...
  • Page 34 MACHINE PARAMETERS PLEASE NOTE : some of the following parameters may not be displayed depending to the machine configuration previously programmed. System manager - System clock programming - Service - Alarm history - Display regulation Machine parameter - Change password - Group manual movements - Test actuactors English...
  • Page 35 LB.05080.00 Pag.35 16/04/2014...
  • Page 36 Please note: for machines without GSM it is possible to carry out a Local data download by setting the Serial number and the Remote password only. ( For more information see the Wizard manual LB.05080.00 Pag.36 16/04/2014...
  • Page 37 CHANGE PASSWORD Please note : If the TURN ON PASSWORD is enabled , to turn on the machine is necessary insert the password. KEY REFERENCE FOR PASSWORD Following Password can be modify Waiter Roaster Owner Service Technician Waiter Entered Roaster Password Owner Service...
  • Page 38 GROUP MANUAL MOVEMENTS LB.05080.00 Pag.38 16/04/2014...
  • Page 39 TEST ACTUATORS LB.05080.00 Pag.39 16/04/2014...
  • Page 40 LB.05080.00 Pag.40 16/04/2014...
  • Page 41 BOILER DRAINING LB.05080.00 Pag.41 16/04/2014...

  • Page 42: Machine Configuration

    MACHINE CONFIGURATION LB.05080.00 Pag.42 16/04/2014...
  • Page 43 LB.05080.00 Pag.43 16/04/2014...

  • Page 44: Preset Parameters

    PRESET PARAMETERS With this function, all the set up values, machine counters and passwords take the default values set up by the manufacturer. PLEASE NOTE: By power OFF and power on, it is meant clearing and giving voltage to the machine. LB.05080.00 Pag.44 16/04/2014...

  • Page 45: Cleaning Process Abort

    CLEANING PROCESS ABORT If you want to interrupt the cleaning procedure for group or whisk or milk frother follow the procedure: ( ONLY WITH THE TECHNICIAN OR SERVICE PASSWORD ) LB.05080.00 Pag.45 16/04/2014...

  • Page 46: Trouble Shooting

    TROUBLE SHOOTING 1) 10 Time out pulses, upper piston motor 10 No H. Motor puls This alarm is visualised on display by code 10 Causes: the upper motor encoder has not received pulses for 3 seconds, since the motor is not running Result: the machine is switched OFF.
  • Page 47 15 Alarm of too much coffee in the brewing chamber 15 Too much coffee This alarm is visualised on display by code 15 Causes: the upper piston has positioned itself where the wet seal of the piston gasket in the brewing chamber is not guaranteed.
  • Page 48 9) 35 Check flow lines 35 Check Flow Lines This alarm is visualised on display by code 35 Cause: It indicates that when the machine is in stand-by there is a leakage from the coffee hydraulic circuit. Result: the machine is OFF. Check the following: leakage from the expansion valve leakage from the coffee group solenoid valve.
  • Page 49 11) 60 Corrupted data alarm 60 Corrupted data alarm This alarm is visualised on display by code 60 First case: This alarm is visualised during machine functioning Cause: incorrect operating data in machine memory. Result: machine shutdown. Solution: carry out the following controls. Verify programming data relevant to the operation that is being carried out.
  • Page 50 14) 91 Group maintenance alarm 91 Group maintena This alarm is visualised on display by code 91 Cause: the group has reached the number of programmed cycles (see Service chapter). Result: none. Solution: check the group and cancel the alarm following the procedure of the chapter info reset. 15) 92 Machine maintenance alarm 92 Maintenance This alarm is visualised on display by code 92...

  • Page 51: Special Functions For Machine Calibration

    SPECIAL FUNCTIONS FOR MACHINE CALIBRATION 1) Calibrating the coffee dispensing pressure (pump pressure). To calibrate the coffee dispensing pressure (8-9 Bars), rotate the “MP” pumping body screw (see hydraulic diagram) clockwise to increase it, and anti-clockwise to decrease it. The adjusting screw is reached through the special hole behind the coffee grounds bin. The coffee dispensing pressure is displayed on pressure gauge “7”...

  • Page 52: Recommendations For A Correct Preventive Maintenance

    RECOMMENDATIONS FOR A CORRECT PREVENTIVE MAINTENANCE The aim of this schedule is to prevent as far as possible equipment from breaking down, through the periodical check-up and replacement of components subject to fair wear and tear, thus reducing service calls and relevant cost in working hours. This schedule is based on the suppliers recommendations along with previous service history on equipment currently out in the field.

  • Page 53: Control Unit Legend

    D. Check at 12 months’ intervals Same as points C1-22, plus replace the following: steam boiler safety valve coffee boiler expansion valve grinder/s burrs (average 300-500 Kg) if the group has delivered 75.000 cycles replace the motors group upper piston micro screen group lower piston screen milk frother milk frother air adjustment.
  • Page 54 The Carimali S.p.A. product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE) and, in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be disposed of as unsorted municipal waste.
