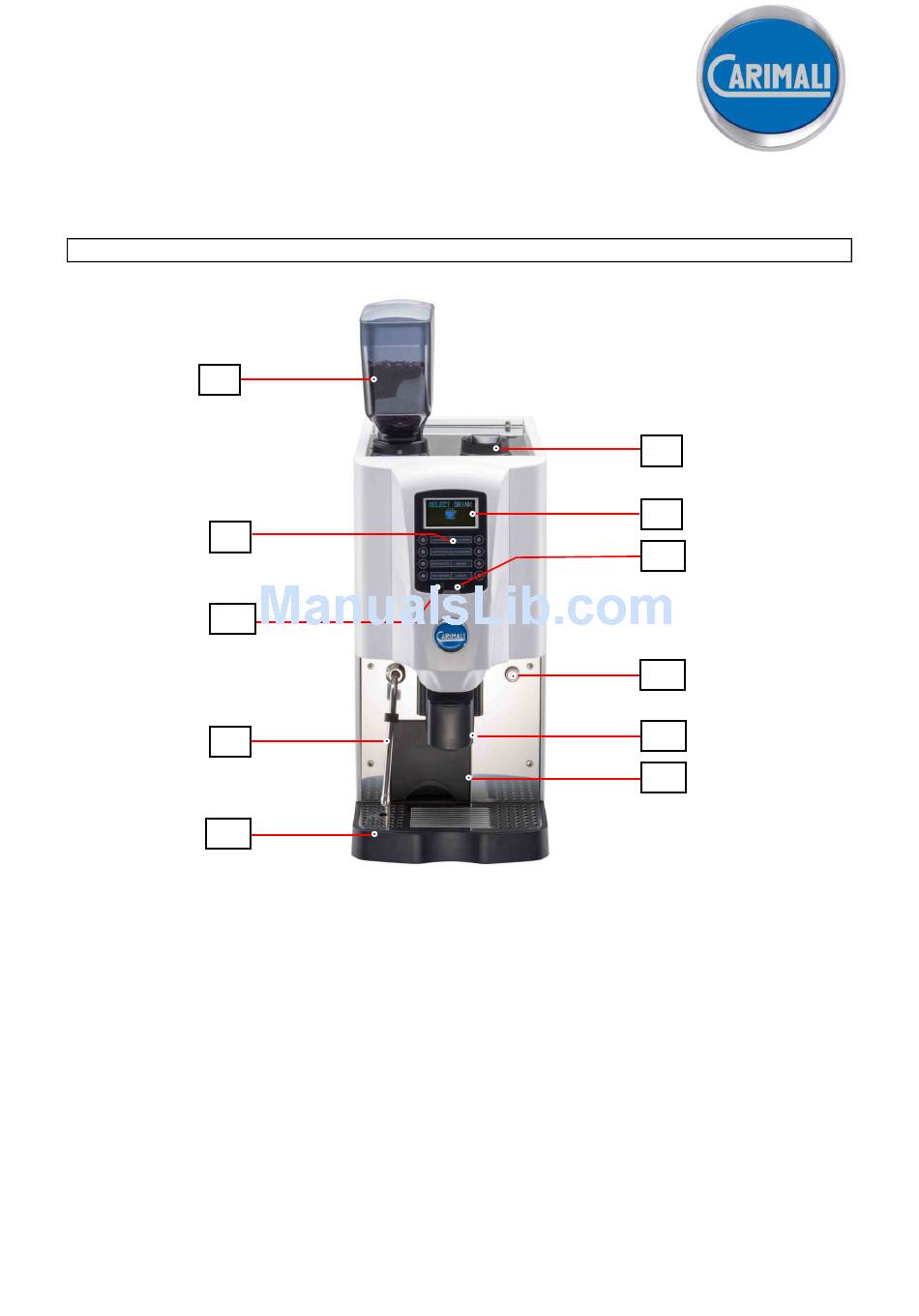

QUICK START MANUAL – MULTI SMART
1
4
6
7
10
LEGEND
1 COFFEE HOPPER
2 DECAFFEINATED DOOR
3 DISPLAY
4 DOSE BUTTONS
5 INFO BUTTON
6 SHIFT BUTTON
7 STEAM ARM
8 DOOR LOCK
9 ADJUSTABLE DELIVERY OUTLETS
10 DRIP TRAY
11 GROUNDS BIN
Only for US market (ETL Sanitation): The equipment shall be installed with backflow protection to
comply with applicable federal, state and local codes.
MACHINE DESCRIPTION
2
3
5
8
9
11
Advertisement
Table of Contents
Related Manuals for Carimali MULTI SMART
Summary of Contents for Carimali MULTI SMART
- Page 1 QUICK START MANUAL – MULTI SMART MACHINE DESCRIPTION LEGEND 1 COFFEE HOPPER 2 DECAFFEINATED DOOR 3 DISPLAY 4 DOSE BUTTONS 5 INFO BUTTON 6 SHIFT BUTTON 7 STEAM ARM 8 DOOR LOCK 9 ADJUSTABLE DELIVERY OUTLETS 10 DRIP TRAY 11 GROUNDS BIN Only for US market (ETL Sanitation): The equipment shall be installed with backflow protection to comply with applicable federal, state and local codes.
- Page 2 STARTING UP After checking that the machine door is closed and the drip tray are inserted, power ON the machine by means of the main switch inside the machine (pic. A), keep key SHIFT pressed and then press key INFO, (pic. B) and the machine will set itself to ON state. Power on the machine by means the main switch, that can be reached by temporarily removing the coffee grounds bin.
- Page 3 FILL IN BEAN HOPPER Fill in the required amount for daily consumption in order to keep coffee and product always fresh. DISPLAY THE AVAILABLE DRINKS SELECTION AND BOILERS TEMPERATURE Press the INFO key with the machine in SELECT DRINK mode to display the available drinks selection : B1 ESPRESSO BLACK COFFEE B2 B3 CAPPUCCINO...
- Page 4 DISPENSING 1) COFFEE/CAPPUCCINO Adjust the coffee dispenser to the correct height and place a cup under it, then press the desired dose key. XXXXXXXX Where “XXXXXXXX” indicates the selected dose key name. The filling up of the cup icon indicates the amount of drink being dispensed. PLEASE NOTE : •...
-
Page 5: Group Cleaning
AUTOMATIC CLEANING AUTOMATIC CLEANING OF POWER CLEANER - COFFEE GROUP - MILK FROTHER MILK FROTHER AT THE END OF EACH WORKING DAY , AND/OR IN CASE THE MACHINE WILL NOT BE USED SOME TIME, WE STRONGLY AT THE END OF EACH WORKING DAY , AND/OR IN CASE THE MACHINE WILL NOT BE USED SOME TIME, WE STRONGLY AT THE END OF EACH WORKING DAY , AND/OR IN CASE THE MACHINE WILL NOT BE USED SOME TIME, WE STRONGLY RECOMMEND TO CARRY OUT AUTOMATI RECOMMEND TO CARRY OUT AUTOMATIC CLEANING OF THE COFFEE GROUP AND THE MILK FROTHER... - Page 6 11► Close the front door 10► Open the front door -1-, insert the 12► Wait the end of the group cleaning cycle delivery. detergent tablet into the brewing chamber -2- GROUP CLEANING GROUP CLEANING GROUP CLEANING INSERT CLEANSER INSERT CLEANSER ENDS IN XX Sec.
- Page 7 AT THE END OF THE MILKER CLEANING CYCLE THE DISPLAY WILL SHOW : SELECT DRINK GROUNDS BIN FULL 22►Lift the coffee outlets completely. 23►Remove and empty the grounds 24►Remove and empty also the drip bin. tray (only for machines without direct water discharge).
-
Page 8: Cleaning Tablets
FOR CLEANING OPERATIONS , CARIMALI STRONGLY RECOMMEND TO USE THE FOLLOWING DETERGENT PRODUCTS: CLEANING TABLETS MILK FROTHER CLEANER PLEASE NOTE: a) Do not interrupt the cleaning cycle. If the cleaning cycle is interrupted by any type of operation unrelated to the procedure, when the machine functioning is set back again, the cleaning cycle will automatically be activated. -
Page 9: Other Recommended Cleaning
OTHER RECOMMENDED CLEANING DRIP TRAY CLEANING GROUDS BIN CLEANING Once a day rinse the drip tray in a Once a day rinse the grounds bin in a sink. sink. HOPPER CLEANING a) Once a week clean the hopper by means of a cloth and approved food detergent. -
Page 10: Grinder Adjustment
GRINDER ADJUSTMENT Open the machine front door, then: Loosen the adjustment by turning in clockwise direction for a coarser grinding Tighten the adjustment by turning in anticlockwise direction for a finer grinding GRINDER ADJ MILK FROTHER ADJ Please Note: Brew and throw one dose, the second one will be dispensed with the new grinder set. MILK FROTHER ADJUSTMENT Foam setting The milk frother is equipped with a FOAM REGULATOR which sets the quantity of air needed to froth milk. -
Page 11: Machine Functions Messages
MACHINE FUNCTIONS MESSAGES 1) Alarm for machine door position OPEN DOOR Cause: the front door is open; the micro switch does not touch the door Result: shutdown of the machine functions Solution: press Info key, the display shows: CLOSE FRONT PANEL OPEN DOOR Close the door and turn the machine ON. - Page 12 After 10 seconds the display shows : SELECT DRINK GROUNDS BIN OPEN Press Info key, the display shows: CLOSE THE GROUNDS BIN GROUNDS BIN OPEN Reinsert the grounds bin into its housing. 3) Message of missing coffee SELECT DRINK MISSING COFFEE Cause: there is no coffee into the hopper and therefore into the brewing chamber Result:...
- Page 13 4) Message of missing decaffeinated SELECT DRINK MISSING DECAF. Cause: Missing coffee in the decaffeinated door and in the brewing chamber Result: The machine interrupts the decaffeinated dispensing selections Solution : press Info key, the display shows: INSERT DECA COFFEE POWNDER 7/8 gr.
-
Page 14: Drip Tray Full
6) Message of drip tray full The display will show the following message: SELECT DRINK DRIP TRAY FULL Cause: the drip tray is full, the quantity of water inside the drip tray touches the level probe. Result: shutdown of the dispensing keys. Solution: press Info key, the display shows: EMTY THE DRIP TRAY DRIP TRAY FULL... - Page 15 Delete character Scroll Enter Info Shift /Clean Carimali S.p.A. con socio unico Via Industriale, 1 Via Industriale, 1 - 24040 Chignolo d'Isola (BG) - Italia T: +39 035 4949555 F: +39 035 905447 : +39 035 905447 www.carimali.com – service@carimali.com service@carimali.com...
