Carimali PRATICA1 Installation And Use Manual

Professional coffee machine
Hide thumbs Also See for PRATICA1:

Advertisement

Table of Contents

See also: Manual of Installation and Use
INSTALLATION
AND USE MANUAL
LB-00193-20.EN
LB.00193.20.EN
EDITION SEPTEMBER
2016
Pag. 1
www.carimali.com
10-02-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRATICA1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carimali PRATICA1

Summary of Contents for Carimali PRATICA1

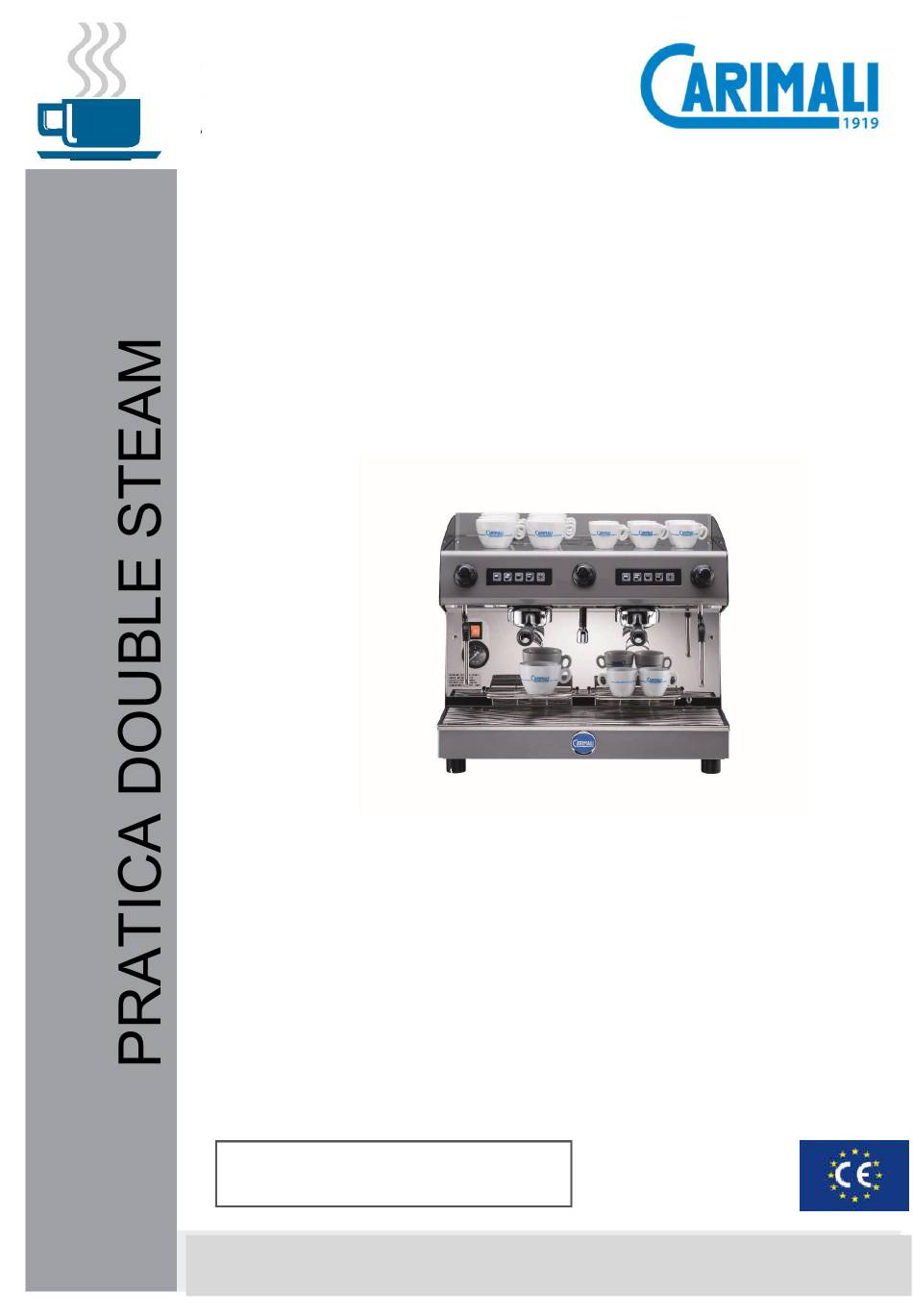

  • Page 1 INSTALLATION AND USE MANUAL LB.00193.20.EN EDITION SEPTEMBER 2016 www.carimali.com LB-00193-20.EN Pag. 1 10-02-09...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION AND GENERAL NOTES ........................3 INSTALLATION NOTES ..............................3 USE AND MAINTENANCE NOTES ........................... 4 MAIN FEATURES ................................5 MACHINE KEYPAD PRATICA E ............................7 STARTING UP ..................................7 DISPENSING ..................................8 HOW TO MAKE A GOOD CUP OF COFFEE ........................8 DOSE PROGRAMMING ..............................

  • Page 3: Introduction And General Notes

    After unpacking check that the machine is not damaged. If in doubt, do not use the machine and contact an Carimali Authorized Service Centre. All packing materials (plastic wrapping, polystyrene, nails, etc.) are potentially dangerous and must be kept out of children’s reach and disposed of in a safe manner for the environment.

  • Page 4: Use And Maintenance Notes

    With correct installation, care, maintenance and cleaning with approved detergent, Carimali meet the requirement above mentioned. Carry out cleaning instruction, provided with machine, every day or at 8 hours shift intervals, to ensure that your system contains a minimum bacteria.

  • Page 5: Main Features

    MAIN FEATURES MACHINE PRATICA1 GR. PRATICA DOUBLE STEAM 2 GR. Display Maximum quantity of coffee dispensed per hour Width (mm.) Height (mm.) Depth (mm.) Net weight (Kg.) Boiler capacity (lt.) Hot water nozzle Steam nozzle Automatic cappuccino LM maker optional...
  • Page 6 ELECTRIC CONNECTION HYDRAULIC CONNECTION WATER TAP WATER 1 – 6 Bar DRAIN WATER FILTRE 0,1-0,6MPa WATER SOFTNER LB-00193-20.EN Pag. 6 10-02-09...

  • Page 7: Machine Keypad Pratica E

    MACHINE KEYPAD PRATICA E KEY 1 KEY 2 KEY 3 KEY 4 KEY 5 Group keypad Key 1 1 Espresso Key 2 2 Espressi Key 3 1 Coffee Key 4 2 Coffee Key 5 Continue/Prog. STARTING UP After the plumbing and electrical connections, proceed to the starting up of the machine. Turn on the tap from the water mains and switch the power ON/OFF by means of main switch.

  • Page 8: Dispensing

    DISPENSING 1) Coffee Dispensing. Place a cup under the dispenser and press one of the coffee dose keys. In case the machine is electronic version E, the dose will automatically stop once the pre-programmed dose has been delivered. On the contrary, in case of manual version P, press again the key to stop dispensing.

  • Page 9: Dose Programming

    DOSE PROGRAMMING Programming the volumetric coffee dose.  Press key N°5 ( contin./ progr.) and keep it pressed for five seconds. The programming level is shown by the flashing LED on the keys N°5 ( contin./ progr.). press the coffee dose key to be programmed and the beverage will start being dispensed; ...
  • Page 10 LB-00193-20.EN Pag. 10 10-02-09...

  • Page 11: Programming Pre Infusion Pratica 1 Grp

    PROGRAMMING PRE INFUSION 1 GROUP MACHINE Following this procedure it is possible to enable the pre-infusion for buttons no.1 and no.2 of each keyboard. Proceed as follows: Power the machine OFF by means of the switch Power the machine ON by keeping pressed key no.1 until the LED next to continuous key in lighted Power the machine OFF by means of the switch Power the machine ON, which is now ready to be used with pre-infusion enabled.

  • Page 12: Washing

    WASHING Washing the group and filter holder. It is advisable to carry out these types of washing at the end of each working day. 1a) washing the filter holders. Carry out the following operations: Remove the filters from the filter holders and wash both parts under running water. Remove the remaining coffee using the provided brush ( code N°...
  • Page 13 MANUAL CLEANING OF STEAM WAND PLEASE NOTE: IT IS ADVISABLE TO CARRY OUT THESE TYPES OF CLEANING AT THE END OF EACH WORKING DAY 1► 2► Leave the steam wand into Clean the steam wand by hot water for 5 minutes. means of a cloth.

  • Page 14: Special Functions For Machine Calibration

    SPECIAL FUNCTIONS FOR MACHINE CALIBRATION ONLY ASSISTANCE SERVICE PERSONNEL AUTHORIZED BY CARIMALI SPA. ARE PERMITTED TO ENABLE THE USE OF THESE FUNCTIONS. Calibrating the coffee dispensing pressure ( pump pressure) To calibrate the water pump, remove the drip tray (1) then the front panel (2) and calibrate the pump by turning the adjustment, clockwise to increase the pump pressure or anticlockwise to reduce pressure.

  • Page 15: Suggested Ordinary Maintenance

    Routine maintenance must be carried out daily by authorized staff as specified in the specific chapters of instructions machine. Cleaning of the coffee outlet by means of the provided special brush is part of the daily maintenance. Special maintenance must be carried out periodically by the CARIMALI authorized service centre in the following way: ...
  • Page 16 The Carimali product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment (WEEE) and, in jurisdictions adopting that Directive, is marked as being put on the market after August 13, 2005, and should not be disposed of as unsorted municipal waste.

This manual is also suitable for:

Pratica double steam 2
