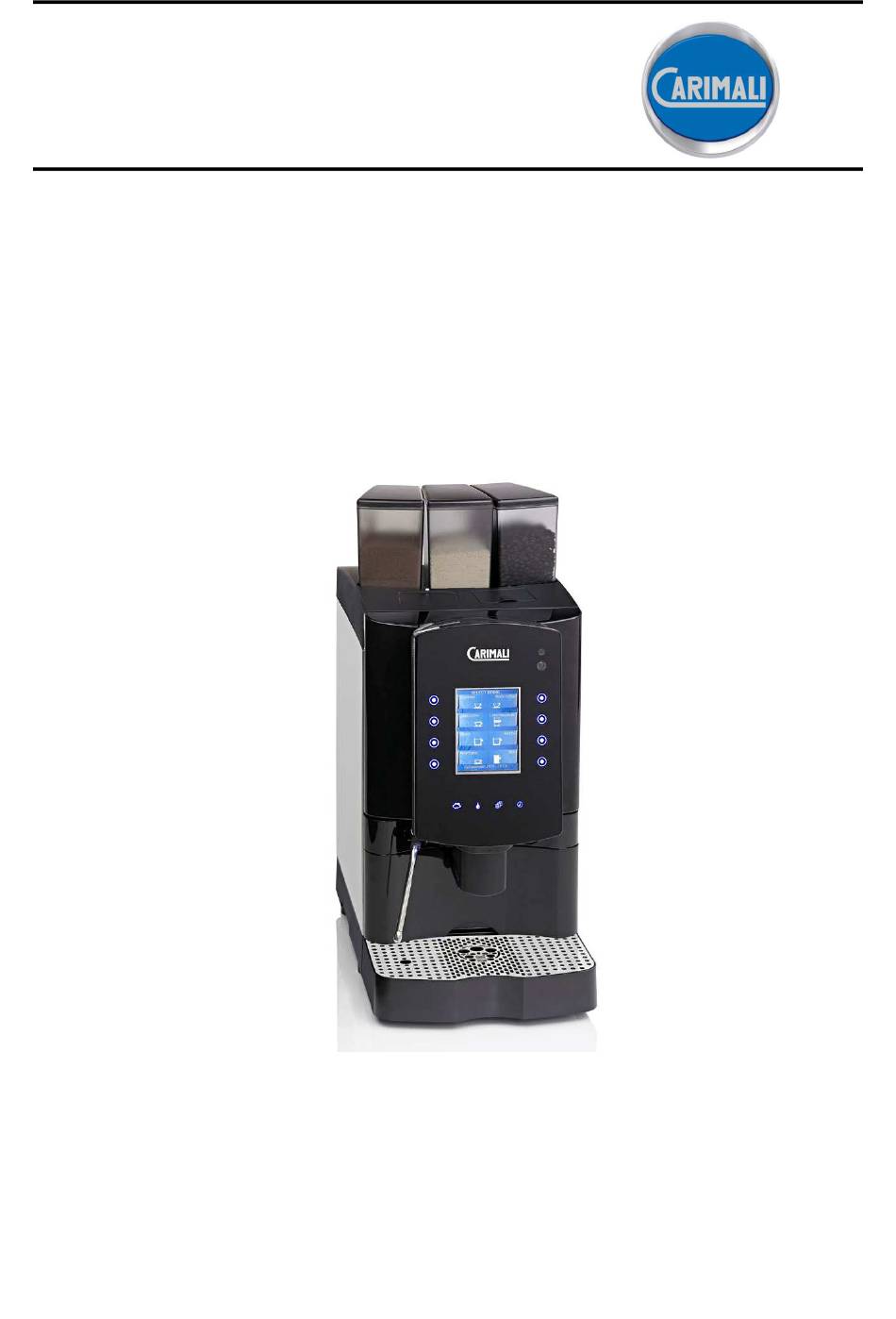

- Page 1 QUICK START GUIDE ARMONIA TOUCH NT-05088-02-EN...
- Page 2 MACHINE DESCRIPTION LEGEND 1 . PRODUCT CANISTER 2 . COFFEE HOPPER 3 . PRODUCT CANISTER / COFFEE HOPPER 4 . CARD READER 5 . DECAFFEINATED DOOR 6 . DOSE BUTTON 7 . PEOPLE PRESENCE SENSOR 8 . DISPLAY 9 . INFO BUTTON 10 .
- Page 3 STARTING UP Power ON the machine by means of the main switch inside the machine and then close the front door. (pic. A) Power on the machine by means the main switch Inside the machine . Pic. A After checking that the machine door is closed and the ground bin and the drip tray are inserted, press the key No.8 (ON/OFF) to turn ON the machine ( PIC.
- Page 4 To switch OFF the machine press key n°11- Info (Pic.A) and then press key n° 8-Off (Pic.B). Pic. A Pic. B SELECT DRINK Coffee temperature 2xEspresso Americano XXX °C Steam temperature YYY °C Cappuccino Latte Macchiato Choco Mocha Espresso Caffè latte FILL IN BEAN HOPPER AND CANISTER Fill in the required amount for daily consumption in order to keep coffee and product always fresh.
- Page 5 DISPLAY THE AVAILABLE E SHIFT DRINK SELECTIONS AND BOILERS TEMPERAT AND BOILERS TEMPERATURE Press the SHIFT key with the machine in SELECT DRINK machine in SELECT DRINK mode to display the available shift shift drink selections : SELECT DRINK 2xEspresso Americano Cappuccino Latte Macchiato...
- Page 6 DISPENSING 1) COFFEE/CAPPUCCINO/CHOCO DISPENSING 1) COFFEE/CAPPUCCINO/CHOCO DISPENSING Adjust the coffee dispenser to the correct height and place a cup under it then press the desired dose key. dispenser to the correct height and place a cup under it then press the desired dose key. dispenser to the correct height and place a cup under it then press the desired dose key.
- Page 7 STEAM WAND USE AND CLEANING STEAM WAND NOT AVAILABLE FOR MACHINE IN SELF CONFIGURATION 1► Before using the steam wand press 2► Use the steam wand to foam or heat 3► Press the steam button to stop the the steam button to purge the nozzle. any liquid into the jug by handling the delivery before removing the jug.
- Page 8 AUTOMATIC CLEANING O AUTOMATIC CLEANING OF COFFEE GROUP- MIXER AND MILK FROTH MIXER AND MILK FROTHER AT THE END OF EACH WORKING DAY , AND/ AT THE END OF EACH WORKING DAY , AND/OR IN CASE THE MACHINE WILL NOT BE USED SOME TIME, WE STRONGLY OR IN CASE THE MACHINE WILL NOT BE USED SOME TIME, WE STRONGLY RECOMMEND TO CARRY OUT AUTOMATIC CLEANING OF THE COFFEE GROUP ,THE MIXER AND THE MILK FROTHER RECOMMEND TO CARRY OUT AUTOMATIC CLEANING OF THE COFFEE GROUP ,THE MIXER AND THE MILK FROTHER...
-
Page 9: Group Cleaning
10► Close the machine door 11► Open the front door and insert the 12►. Wait the end of the group cleaning . Wait the end of the group cleaning detergent tablet into the brewing chamber. cycle. Close the machine door. GROUP CLEA GROUP CLEANING PLEASE WAIT... - Page 10 IN CASE THE COFFEE MACHINE IS EQUIPPED WITH STEAM BOILER BUT WITHOUT MILK FROTHER IS NECESSARY TO IN CASE THE COFFEE MACHINE IS EQUIPPED WITH STEAM BOILER BUT WITHOUT MILK FROTHER IS NECESSARY TO IN CASE THE COFFEE MACHINE IS EQUIPPED WITH STEAM BOILER BUT WITHOUT MILK FROTHER IS NECESSARY TO PERFORM THE STEAM BOILER CLEANING.
- Page 11 Only in case that after the automatic cleaning process of the coffee outlet or the milk frother are not properly dispensing, carry out a manual cleaning; see the following steps. FOR CLEANING OPERATIONS , CARIMALI STRONGLY RECOMMEND TO USE THE FOLLOWING DETERGENT PRODUCTS: ATIONS , CARIMALI STRONGLY RECOMMEND TO USE THE FOLLOWING DETERGENT PRODUCTS:...
- Page 12 MANUAL CLEANING: MILK FROTHER, COFFEE OUTLET 1 ► Open the machine remove the coffee 2 ► Remove the milk frother from the outlet from its holder . coffee outlet and disconnect Silicone tubes No. -3- and -4. 3 ► Disassemble the milk frother in all its 4 ►...
- Page 13 MANUAL CLEANING OF MIXER WE STRONGLY RECOMMEND CLEANING THE MIXERS ONCE A DAY 1► Open the machine door 2► Remove the pipe from the mixer 3► Remove the product outlet elbow 1, then turn the flange 2 anticlockwise, then remove the mixer 3 5►...
- Page 14 OTHER RECOMMENDED CLEANING DRIP TRAY CLEANING GROUNDS BIN CLEANING Once a day rinse the grounds bin in a Once a day rinse the drip tray in a sink. sink. HOPPER CLEANING DISPENSER CLEANING a) Once a week clean the dispenser a) Once a week clean the hopper by by means of a cloth and approved means of a cloth and approved food...
- Page 15 CHUTES CLEANING a) Open the decaffeinated door and b) Once a week clean the c) Once a week clean the coffee chute by remove the chute . decaffeinated chute by means of a means of a brush and approved food brush and approved food detergent detergent GRINDERS ADJUSTMENT...
- Page 16 MILK FROTHER ADJUSTMENT Foam setting The milk frother is equipped with a FOAM REGULATOR which sets the quantity of air needed to froth milk. Open the machine door turn the ring nut clockwise for thicker foam (small bubbles), or turn it anticlockwise for more voluminous foam (large bubbles) then lock it with the locknut.
- Page 17 MACHINE FUNCTIONS ME MACHINE FUNCTIONS MESSAGES 1) Alarm for machine door position OPEN DOOR Cause: the front door is open; the micro switch do micro switch does not touch the door Result: shutdown of the machine functions Solution: press ( Info ) key, the display shows the display shows: CLOSE FRONT PANEL OPEN DOOR...
- Page 18 Press ( Info ) key, the display shows: CLOSE THE GROUNDS BIN GROUNDS BIN OPEN Reinsert the grounds bin into its housing. 3) Message of missing coffee SELECT DRINK MISSING COFFEE Cause: there is no coffee into the hopper and therefore into the brewing chamber Result: the machine interrupts the coffee-based dispensing selections Solution : press ( Info ) key, the display shows :...
- Page 19 5) Message of drip tray not in position. The display will show the following message: SELECT DRINK DRIP TRAY OUT Cause: the drip tray is not in position. The micro switch contact is open. Result: The message is displayed without disabled the dispensing keys. Solution : press ( Info ) key, the display shows : INSERT DRIP TRAY DRIP TRAY OUT...
- Page 20 , the display shows the main menu programming environments as above described. , the display shows the main menu programming environments as above described. Carimali S.p.A. con socio unico Via Industriale, 1 Via Industriale, 1 - 24040 Chignolo d'Isola (BG) - Italia...
