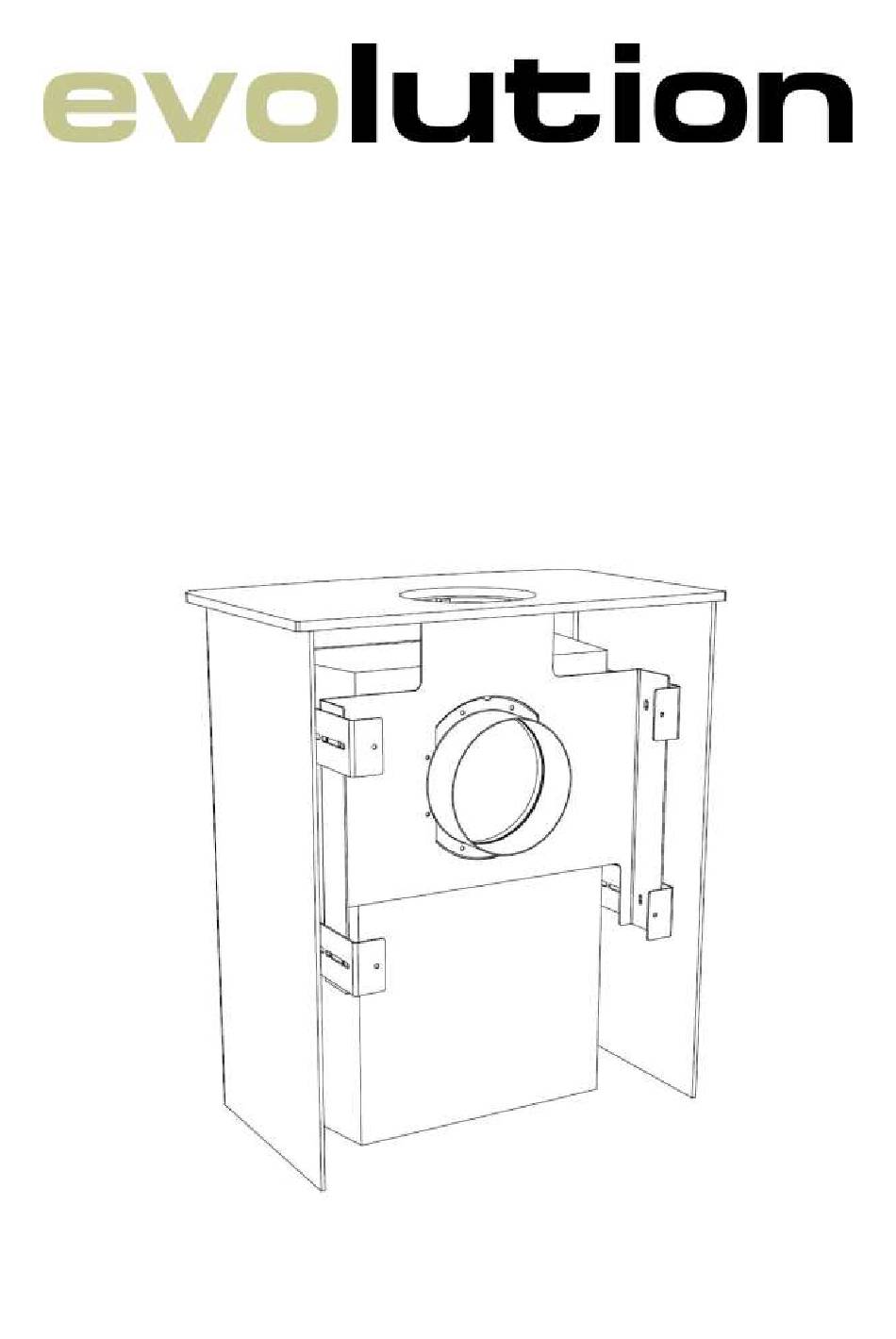

Endure Balanced Flue Gas Stove
Stove Body (with bracket) Fitting Instruction
Your balanced flue stove will be supplied in two main components (Stove body with bracket and the
balanced flue gas burner).
Prior to installing the balanced flue gas burner as described in instruction P-XX1561 Issue 2
(200757_01_BM-07) the following sequence will guide you through attaching the stove body to the
balanced flue gas burner.
-- IMPORTANT – READ THIS FIRST BEFORE COMMENCING INSTALLATION --
BALFLUE01
19/06/2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broseley Evolution Endure
Summary of Contents for Broseley Evolution Endure
- Page 1 Endure Balanced Flue Gas Stove Stove Body (with bracket) Fitting Instruction Your balanced flue stove will be supplied in two main components (Stove body with bracket and the balanced flue gas burner). Prior to installing the balanced flue gas burner as described in instruction P-XX1561 Issue 2 (200757_01_BM-07) the following sequence will guide you through attaching the stove body to the balanced flue gas burner.
- Page 2 Please note the stove body will be delivered upside down on the pallet. Remove the transit bracket to enable the stove body to be removed from the pallet, now remove the front two bolts to disconnect the securing bracket from the stove. Front Bolts Transit Bracket BALFLUE01...
- Page 3 Next attach the bracket to the balanced flue gas burner. Remove four screws from the flue collar of the balanced flue gas burner and place bracket over the collar, once in place secure the bracket with the four screws ensuring screws are tightened. Bracket (showing hole for the flue collar and 4x screw fixing points).
- Page 4 Now the bracket has been fitted to the balanced flue gas burner the four arms of the bracket will need to be adjusted so it can be fastened to the wall, to adjust the arms loosen the nuts / bolts and fully remove the bolts.
- Page 5 Once the balanced flue gas burner installation is complete the stove body can be fitted. To do this offer the stove body up to the balanced flue gas burner ensuring it is central and the holes in the top spigot hole line up with the two holes in the top of the bracket which is fastened to the balanced flue gas burner.
