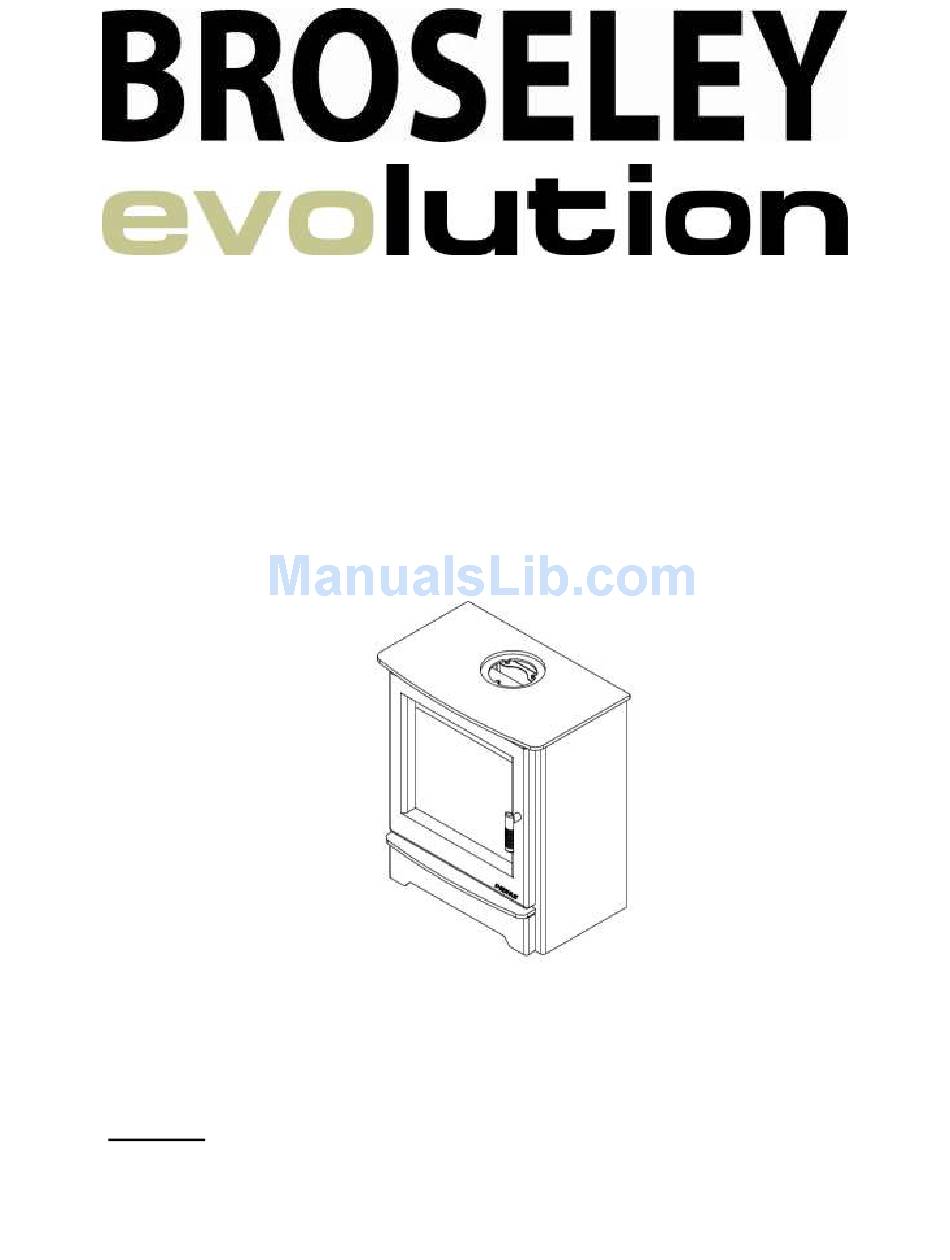

Installation & Operating Instructions
ENDURE
BALANCED FLUE
ROOM SEALED GAS STOVE
END USER
PLEASE LEAVE THESE INSTRUCTIONS WITH THE
Please note: Gas installations MUST only be carried out by installers who
are Gas Safe registered.
Warning
- Appliance should not be used if the glass is cracked, damaged
or broken.
Endure Balanced Flue
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broseley evolution
Summary of Contents for Broseley evolution
- Page 1 Installation & Operating Instructions ENDURE BALANCED FLUE ROOM SEALED GAS STOVE END USER PLEASE LEAVE THESE INSTRUCTIONS WITH THE Please note: Gas installations MUST only be carried out by installers who are Gas Safe registered. Warning - Appliance should not be used if the glass is cracked, damaged or broken.
-
Page 2: Table Of Contents
Contents Introduction Packing List Specification Dimensions Siting the Appliance Hearth Requirements Assembly Preparation Burner Bracket Flue Pipe Terminal Guard Gas Supply Connection Removing the Glass Positioning the Ceramics 14-16 Attaching the Top Cover Plate Fitting the Stove Body Pressure Testing Operating the Stove Maintenance Commissioning Form... -
Page 3: Introduction
Introduction THANK YOU FOR PURCHASING A BROSELEY GAS STOVE Broseley Fires Ltd, was founded as an appliance and design development company in 1975. Since then we have built up an enviable reputation for the quality, reliability and fuel efficiency of our stoves. -
Page 4: Specification
Specification Gay Type Natural Gas Inlet Pressure 20 Mbar +/- 1 mbat Gas Connection 8mm Pipe Injector Pilot PXX1313 Input High Rate (Gross) 4.2 kW (0.4m /hr) Input Low Rate (Gross) 2.9 kW (0.27m /hr) Battery Type (electronic Igniter) Wall Depth (Max) 350mm Minimum Flue Length (Excluding Terminal) 105mm... -
Page 5: Dimensions
Dimensions All dimensions are in millimetres. Endure Balanced Flue... -
Page 6: Siting The Appliance
Siting the Appliance Regulatory requirements for flue terminal location Terminal Position Minimum Distance Directly below an opening, air brick, opening window etc 300mm Above an opening, air brick, opening window etc 300mm Horixontally to an opening, air brick, opening window etc 300mm Below gutters, soil pipes or drains 300mm... -
Page 7: Siting The Appliance
Siting the Appliance This appliance MUST only be installed against a non-combustible surface. Combustible surfaces will require shielding in accordance with the necessary building regulations. The information on this page provides details of the maximum and minimum flue length, appliance clearances can be found on the next page. Figure 2 above shows the maximum flue length of 370mm. -
Page 8: Hearth Requirements
Hearth Requirements The appliance needs to be located onto a solid non-combustible hearth with a minimum thickness of 12mm. The hearth must be capable of withstanding the weight of the appliance. NB Side measurements taken from the Lid of the stove (Dimension E on page 4): Rear measurement taken from the dilution box Clearances Hearth Protrusion (in front of the Ash lip) -
Page 9: Preparation
Assembly - Preparation Start by un-packing the stove box, please note the stove body will be delivered upside down on the pallet. Retain all packaging material until the installation is fully commissioned. 1. Remove the transit bracket to enable the stove body to be removed from the pallet. -
Page 10: Burner Bracket
Assembly – Burner Bracket 2. Next un-pack the burner box and carefully un-pack the burner assembly. 3. Remove the four screws marked on the diagram below, align the burner bracket with these four fixing points and secure the burner bracket the the rear of the burner assembly. -
Page 11: Flue Pipe
Assembly – Flue Pipe 6. Once the correctly sized flue hole has been made, offer the appliance up in order to mark the position for the four bracket arms. These positions will need to be drilled and plugged using suitable fixings (not supplied). 7. -
Page 12: Terminal Guard
Assembly – Terminal Guard The terminal guard can now be assembled and fitted to the outside wall. The terminal guard supplied with this appliance is required to be fitted, when installed in England and Wales if the terminal could come into contact with people moving around the building or if the terminal could become damaged. -
Page 13: Removing The Glass
Assembly – Removing the Glass Prior to laying the coal ceramics, you will first need to remove the front glass frame assembly. First remove the top three fixings marked on the picture below and just loosen the lower three fixings. The frame and glass can now be carefully lifted upwards off the lower fixings (take care to support the glass within the frame when removing this assembly). -
Page 14: Positioning The Ceramics
Assembly - Positioning the Ceramics Take care whilst handling and positioning the ceramics as they are fragile and easily broken. 1. Position the main fuel bed centrally left to right and pushed to the rear as shown. 2. Position the front right ceramic. Ensure its lower edge is sitting down onto the support bracket. - Page 15 Assembly - Positioning the Ceramics 3. Position the front left ceramic. Ensure its lower edge is sitting down onto the support bracket. 4. Position the rear right ceramic as shown. Endure Balanced Flue...
-
Page 16: Attaching The Top Cover Plate
Assembly - Positioning the Ceramics 1. Position the rear left ceramic as shown. Please note only the original manufacturers ceramics may be used with this appliance Assembly – Attaching the top cover plate Once the ceramics are correctly positioned the glass panel assembly can be re-fitted to the burner assembly. -
Page 17: Fitting The Stove Body
Assembly – Fitting the Stove Body The next step is attaching the stove body to the burner bracket. Carefully position the stove body over the burner and bracket assembly and attach using the two front bolts (inc nuts and washers) that were removed in step 1 of the product assembly. -
Page 18: Pressure Testing
Pressure Testing Test the operating pressure of the appliance by attaching a pressure gauge to the test point of the pressure test elbow. This connection should be made when the appliance is OFF. Ensure that gas is turned on at the gas meter and purge the air from the appliance by following the instructions below. -
Page 19: Operating The Stove
Operating the Stove Push Button Electronic Igniter Control Valve Knob 1. Push the control valve knob in fully and rotate anti-clockwise to the (IGN) position. Press the electronic ignitor ( ). This will red button located bottom left create a spark at the pilot causing it to ignite. If the pilot does not light, rotate the ... -
Page 20: Maintenance
Maintenance Health and Safety The appliance uses fuel effect pieces manufactured from refractory ceramic fibres (RCF). Care must be taken to avoid excessive exposure to these materials as they may cause irritation to the eyes, skin, nose and throat. When handling avoid inhaling and contact with the skin and eyes. -
Page 21: Commissioning Form
Commissioning Form THIS SECTION MUST BE COMPLETED AND SIGNED BY THE INSTALLATION ENGINEER PLEASE LEAVE WITH THE CUSTOMER AND THE APPLIANCE. Size of Governor setting: (i.e.) Natural Gas 20mbar. Length and size of gas supply: _______________ Meter pressure Fire only on: ________________ Meter pressure with all other appliances on: __________________ Burner pressure Fire only on: _______________ Burner pressure with all other appliances on: __________________... -
Page 22: Servicing Instructions
Servicing Instructions The following procedures can and should only be performed by Gas Safe registered installer. The Appliance MUST be serviced annually by a Gas Safe engineer. Removal / Replacement of gas carrying components The removal and the replacement of gas carrying components will required the removal of the burner tray. -
Page 23: Servicing Instructions
Servicing Instructions Removal of gas components Remove the control knob from the valve 2. Remove the locknut from the front of the valve 3. Undo the three nuts around the periphery of the valve body – Gas Inlet / Burner / Pilot 4. -
Page 24: Guarantee
Should you wish to claim under the warranty, please contact the supplier / dealer from whom you purchased the appliance. Do not claim directly to Broseley Fires, or Be Modern, as they are unable to process any direct claim from an end user.
