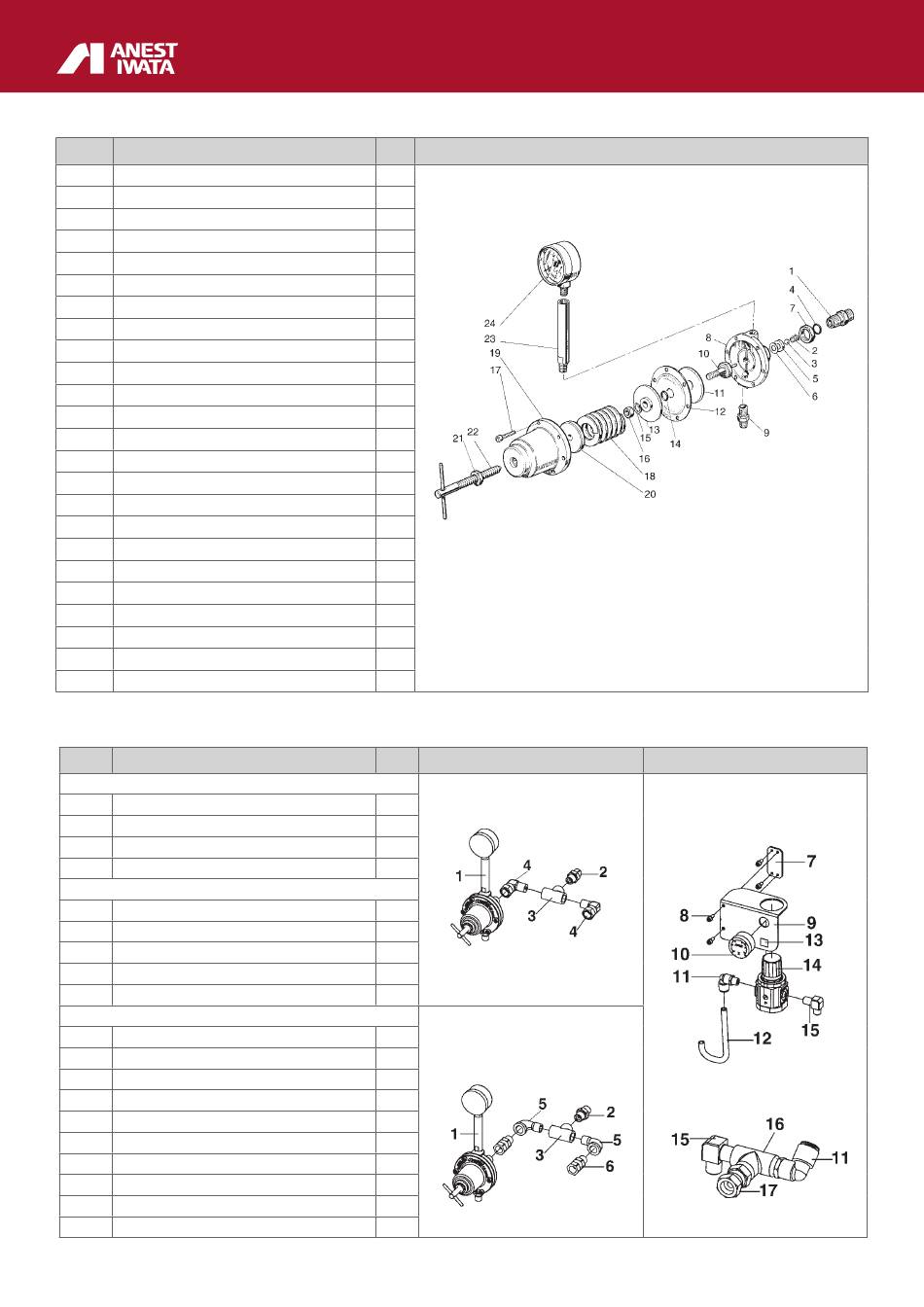

10.3 PAINT PRESSURE REGULATOR - A) PR-5BL | PR-5BLN
Ref. Description
1 JOINT G3/8"
2 VALVE SPRING
3 CARBIDE BALL
4 O'RING
5 CARBIDE SEAT
6 PACKING
7 HEX. NUT
8 BODY
9 JOINT G1/4"-G3/8"
10 DIAPHRAGM BOLT
11 DIAPHRAGM HOLDER
12 DIAPHRAGM
13 DIAPHRAGM STOPPER
14 O'RING
15 SPRING WASHER
16 HEXAGON NUT
17 HEX. SOCKET BOLT
18 ADJUSTING SPRING
19 DIAPHRAGM CAP
20 SPRING STOPPER
21 HEXAGON NUT
22 HANDLE SET
23 RISING PIPE
24 PRESSURE GAUGE
10.4 2-WAY JOINT CONNECTION KIT - OPTIONAL
Ref. Description
for ALUMINIUM TYPE
1 PAINT REGULATOR
2
JOINT
3 T-JOINT
4 ELBOW UNION
for STAINLESS STEEL TYPE
1
PAINT REGULATOR
2 JOINT
3 T-JOINT
5
STREET UNION
6 UNION JOINT M-F
for ALL TYPES
7
SUB PLATE
8
BOLT WITH HEX. HOLE
9 PLATE
10 PRESSURE GAUGE
11
ELBOW UNION
12 TUBE
14 AIR REGULATOR
15
ELBOW
16
T-JOINT
17 UNION JOINT M-F
30
#
#
•
#
#
Qty.
1
ALUMINIUM TYPE
1
1
2
1
1
1
2
2
1
STAINLESS STEEL TYPE
4
1
1
2
1
1
2
1
1
ALL TYPES
