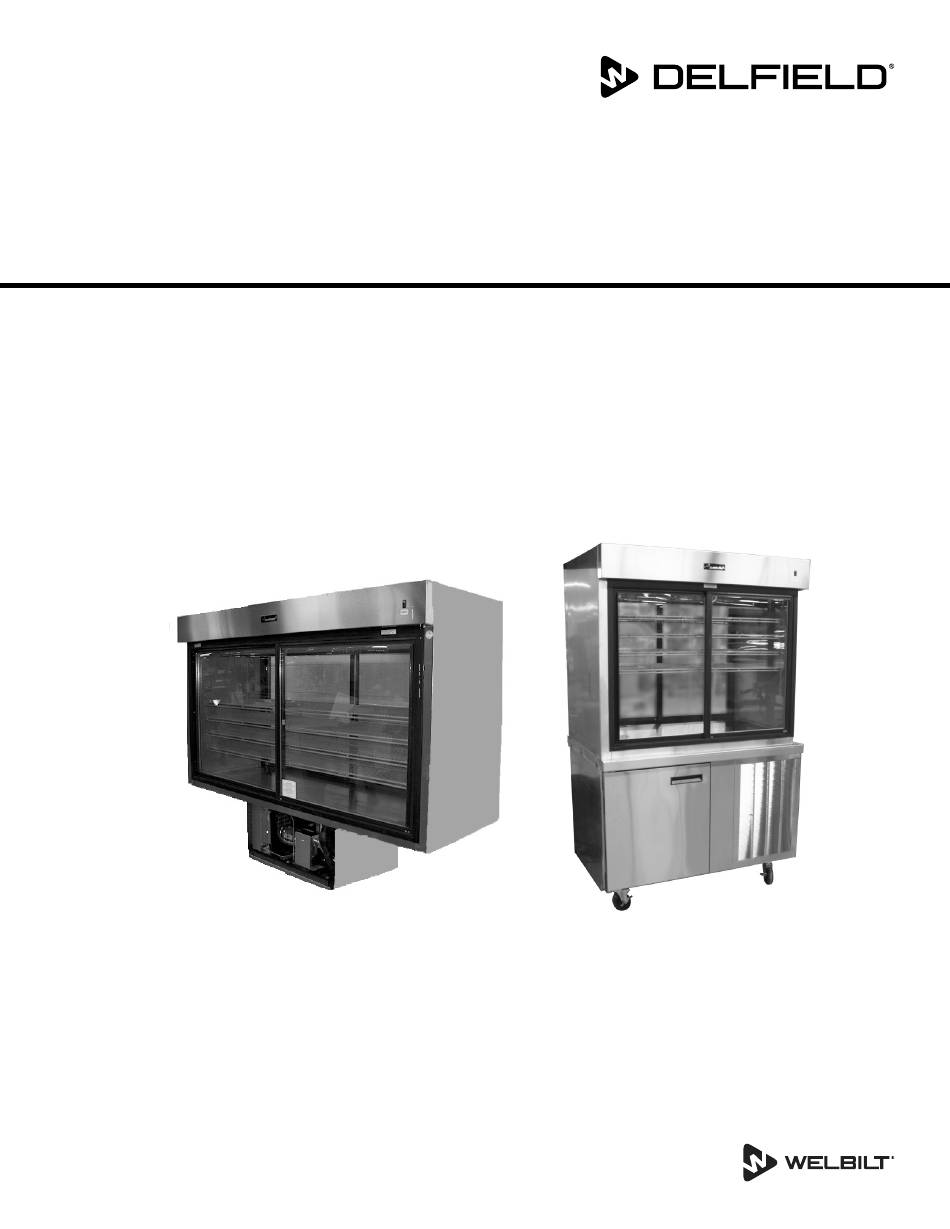

- Page 1 F5 and F15 Series Refrigerated Display Cases Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9291460 11/17...
- Page 2 Safety Notices Warning This product contains chemicals known to the State Warning of California to cause cancer and/or birth defects or Read this manual thoroughly before operating, installing other reproductive harm. Operation, installation, and or performing maintenance on the equipment. Failure servicing of this product could expose you to airborne to follow instructions in this manual can cause property particles of glasswool or ceramic fibers, crystalline...
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Model Numbers ........................5 Serial Number Information ....................5 Warranty Information ......................5 Regulatory Certifications ....................5 Domestic Models ............................5 Export Models ............................5 Section 2 Installation Location ..........................7 Weight of Equipment ......................8 Clearance Requirements .................... - Page 4 Table of Contents (continued) Section 4 Maintenance General Cleaning ......................21 Interior Cleaning ......................22 Gaskets ..............................22 Preventing Blower Coil Corrosion ....................22 Exterior Cleaning......................22 Drain ................................. 22 Cleaning The Condenser Coil...................23 Cleaning The Condensate Evaporator ................23 Remote Models Only .......................... 23 Door Maintenance ......................23 Doors With Hinges ..........................
-
Page 5: General Information
F15PC48DV F15SC48DV when calling for parts or service. F15MC60DV F15PC60DV F15SC60DV F15MC72DV F15PC72DV F15SC72DV Warranty Information Export Numbers Visit www.delfield.com/warranty to: Mirrored Back Pass-thru See-thru • Register your product for warranty. Export Self-Contained Drop-In • Verify warranty information. F5MC36D-E F5PC36D-E... - Page 6 General Information Section 1 THIS PAGE INTENTIONALLY LEFT BLANK Part Number: 9291460 11/17...
-
Page 7: Installation
Section 2 Installation The location selected for the equipment must meet the DANGER following criteria. If any of these criteria are not met, select Installation must comply with all applicable fire and another location. health codes in your jurisdiction. • Units are intended for indoor use only. -
Page 8: Weight Of Equipment
Installation Section 2 Weight of Equipment Dimensions Model Length Depth Height Model Export Option Weight Self-Contained Drop-In Self-Contained Drop-In F5MC36DV 36” (91cm) 31.5” (80cm) 57” (145cm) F5MC36DV F5MC36D-E 525lbs (238kg) F5PC36DV 36” (91cm) 33.38” (85cm) 57” (145cm) F5PC36DV F5PC36D-E 541lbs (245kg) F5SC36DV 36”... -
Page 9: F15 Leg & Caster Installation
F15 Leg & Caster Installation Model Shelf Display Base Area Volume Volume Self-Contained Drop-In DANGER F5MC36DV 14.2ft 16.2ft Legs or casters must be installed and the legs or casters F5PC36DV 15.5ft 18.1ft must be screwed in completely to prevent bending. F5SC36DV 15.5ft 17.6ft... -
Page 10: F5 Counter Installation For 36" & 48" Units
Installation Section 2 F5 Counter Installation For 36” & 48” Units 1. Install partitions between F5 refrigerated display case and other electrical appliances if they are located in the Installation Dimensions same cabinet. Partitions must fully extend front to back and top to bottom. -
Page 11: F5 Counter Installation For 60" & 72" Units
Section 2 Installation F5 Counter Installation For 60” & 72” Units 1. Install partitions between F5 refrigerated display case and other electrical appliances if they are located in the Installation Dimensions same cabinet. Partitions must fully extend front to back and top to bottom. -
Page 12: Electrical Service
Amps H.P. Hertz, Nema Plug loose during shipment and installation. Phase Self-Contained Drop-In Warning F5MC36DV This appliance must be grounded and all field wiring F5PC36DV F5SC36DV must conform to all applicable local and national 115,60,1 5-15P F5MC48DV codes. Refer to rating plate for proper voltage. It is the... -
Page 13: Drain Connections
If, for some reason, a unit does not have a Base Display Base Display condensate evaporator, or the evaporator fails, the unit’s Self-Contained Drop-In drain must have an outlet to an appropriate drainage area F5MC36DV 4780 32oz or container. F5PC36DV 4780 32oz F5SC36DV... -
Page 14: Remote Option Installation
Installation Section 2 Remote Option Installation F15 REMOTE MODELS 30.00" F5 REMOTE MODELS 76cm 1.75" 1.75" (4cm) 3.75" 3.75" Cutout 10cm (10cm) 1.00" 3.00" X 12.00" (8cm X 30cm) 2.5cm Centered Front To Back 0.25" (0.6cm) From End 3.75" 3.75" 10cm (10cm) Front Of Unit... -
Page 15: Operation
Refrigerated Display Cases misused in this manner. Delfield display cases are designed to maintain 36°F to 40°F DANGER (2°C to 4°C) operational temperature in both the display Keep power cord AWAY from HEATED surfaces. DO NOT and storage areas (F15 series only) at 55% or lower ambient immerse power cord in water. -
Page 16: 115Volt Power Switch
Operation Section 3 115Volt Power Switch F5 power switch is located next to the condensing unit. Turn the switch ON to begin operation. F15 displays cases have one power switch. It is located behind the louvered panel in the mechanical compartment. Turn the switch ON to begin operation. -
Page 17: Temperature Control & Display
Section 3 Operation TEMPERATURE CONTROL & DISPLAY Temperature Control & Display Operation Operation / Indication Status Displayed Comments Normal (°C) Temp. [°C] Unit depends on setting (parameters in control) Normal (°F) Temp. [°F] Show set-point Temp. Set to Defrost dEF / Temp Depends on setting Press upper or lower right button. -
Page 18: 115Volt F15 Pressure Control
2-Min, Off 2-Min In attempting to adjust the pressure control, you can do damage to your unit. Please contact KitchenCare +1 (844) 724-2273 or your local service agent. Delfield is not responsible for charges incurred while having the pressure control adjusted. -
Page 19: Changing Display From Fahrenheit To Celsius On Erc112 Control
Section 3 Operation CHANGING DISPLAY FROM FAHRENHEIT TO CELSIUS 6. -F should be displayed indicating Fahrenheit. Use ON ERC112 CONTROL the down arrow to change it to -C for Celsius and hit the stand-by button (lower left button) to enter the 1. -
Page 20: 230-240 Volt Export Operation
Please contact KitchenCare +1 • The thermostat is set at 2.5 at the factory to provide (844) 724-2273 or your local service agent. Delfield is proper operation. not responsible for charges incurred while having the •... -
Page 21: General Cleaning
Section 4 Maintenance Caution DANGER Maintenance and servicing work other than cleaning as It is the responsibility of the equipment owner to described in this manual must be done by an authorized perform a Personal Protective Equipment Hazard Assessment to ensure adequate protection during service personnel. -
Page 22: Interior Cleaning
Maintenance Section 4 Interior Cleaning Exterior Cleaning The interior can be cleaned using soap and warm water. If Notice this isn’t sufficient, try ammonia and water or a nonabrasive Never use an acid based cleaning solution on exterior liquid cleaner. panels! Many food products have an acidic content, GASKETS which can deteriorate the finish. -
Page 23: Cleaning The Condenser Coil
Section 4 Maintenance Cleaning The Condenser Coil SLIDING DOORS In order to maintain proper refrigeration performance, the condenser fins must be cleaned of dust, dirt and grease regularly. It is recommended that this be done monthly. If conditions are such that the condenser is totally blocked in a month, the frequency of cleaning should be increased. - Page 24 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM WWW.WELBILT.COM Welbilt provides the world’s top chefs, and premier chain operators or growing independents with industry leading equipment and solutions. Our cutting-edge designs and lean manufacturing tactics are powered by deep knowledge, operator insights, and culinary expertise.
