- Page 1 High Performance Refrigerators Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9291514 04/17...
- Page 2 Safety Notices Warning This product contains chemicals known to the State Warning of California to cause cancer and/or birth defects or Read this manual thoroughly before operating, installing other reproductive harm. Operation, installation, and or performing maintenance on the equipment. Failure servicing of this product could expose you to airborne to follow instructions in this manual can cause property particles of glasswool or ceramic fibers, crystalline...
-
Page 3: Table Of Contents
Table of Contents Section 1 General Information Model Numbers ........................4 Serial Number Location ..................... 4 Warranty Information ......................4 Regulatory Certifications ....................4 Section 2 Installation Location ..........................5 Clearance Requirements ....................6 Dimensions ......................... 6 Electrical Service ........................ 6 Voltage ...............................6 Ground Fault Circuit Interrupter .......................7 Refrigeration ........................ -
Page 4: General Information

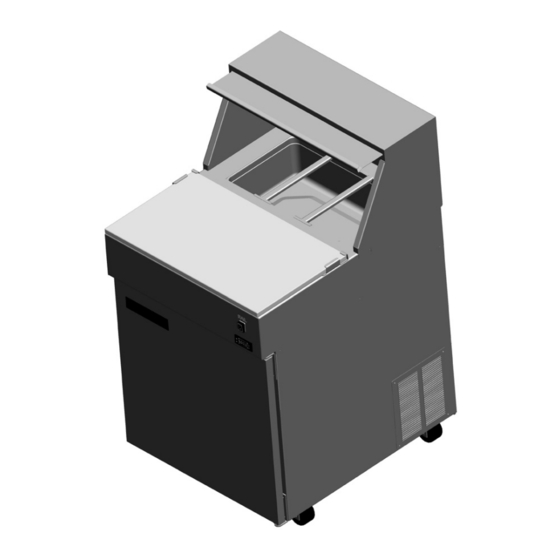

The serial number is located on the interior left side wall. Model Refrigerated Prep Table Description Always have the serial number of your unit available F18MC27-BSNP 27” Natural Convection LiquiTec® Sloped when calling for parts or service. Mega Top, (12) 1/6 size pan capacity F18MC27-BSP 27”... -
Page 5: Installation
If the LiquiTec unit cold pans leak, immediately call the • Front casters MUST be locked once positioned. Delfield service department directly at 1-800-733-8821 not your local service agent. • Recommended air temperature is 41° - 86°F (5° - 30°C). -
Page 6: Clearance Requirements
Installation Section 2 Clearance Requirements Model Volume Shelf Space F18MC27-BSNP 6.3Ft3 4.36Ft2 DANGER 6.3Ft3 4.36Ft2 F18MC27-BSP Minimum clearance requirements are the same for 7.7Ft3 5.32Ft2 F18MC32-BLSP noncombustible locations as for combustible locations. The flooring under the appliance must be made of a 7.7Ft3... -
Page 7: Ground Fault Circuit Interrupter
Caster Installation Capacity Rejection Model Base Rail Base Rail R290 DANGER F18MC27-BSNP 1494 1329 150g Casters must be installed and screwed in completely to F18MC27-BSP 1494 1329 150g prevent bending. When casters are installed the mass of this unit will allow it to move uncontrolled on an... -
Page 8: Operation
Section 3 Operation Warning DANGER Do not block the supply and return air grills or the air The on-site supervisor is responsible for ensuring that space around the air grills. Keep plastic wrappings, operators are made aware of the inherent dangers of operating this equipment. -
Page 9: Daily Operation
After turning the ON/OFF switch to ON the unit’s following a power outage the unit will begin cooling after a compressor will begin operating. Delfield refrigerated bases 3-6 minute delay. During normal operation the evaporator are designed to maintain an operational temperature of fan pulses independently of the compressor as dictated by 36°F to 40°F (2°C to 4°C). -
Page 10: Erc112 Temperature Control
Operation Section 3 ERC112 Temperature Control Operation / Indication Status Displayed Comments Normal (°C) Temp. [°C] Unit depends on setting (parameters in control) Normal (°F) Temp. [°F] Show set-point Temp. Set to Defrost dEF / Temp Depends on setting (parameters in control or as chosen by upper left button) AT START UP... -
Page 11: Changing Display From Fahrenheit To Celsius On Erc112 Control
Section 3 Operation CHANGING DISPLAY FROM FAHRENHEIT TO CELSIUS 6. -F should be displayed indicating Fahrenheit. Use ON ERC112 CONTROL the down arrow to change it to -C for Celsius and hit the stand-by button (lower left button) to enter the 1. -
Page 12: Maintenance
Section 4 Maintenance Cleaning and Sanitizing Procedures DANGER It is the responsibility of the equipment owner to Caution perform a Personal Protective Equipment Hazard Assessment to ensure adequate protection during Maintenance and servicing work other than cleaning as maintenance procedures. described in this manual must be done by an authorized service personnel. -
Page 13: Interior Cleaning
Section 4 Maintenance INTERIOR CLEANING EXTERIOR CLEANING Notice Notice When cleaning interior and exterior of unit, care should Never use an acid based cleaning solution on exterior be taken to avoid the front power switch and the rear panels! Many food products have an acidic content, power cord. -
Page 14: Drawer Cleaning
Maintenance Section 4 Refrigerated Rail bottom track on the front track roller. Then push the drawer back in place SLOWLY. When the drawer box is about half Product in the rail should be removed to the refrigerated way in you will hit a STOP. You must lift the front of the base at the end of the day. -
Page 15: Door/Hinge Adjustments
Section 4 Maintenance DOOR/HINGE ADJUSTMENTS C. Use a 5/16” wrench to slightly loosen the top hinge screws. Over time and with heavy use doors the hinges may become loose. If it is noticed that the door is beginning to D. Pull the hinge toward the opening and tighten the sag, it may become necessary to tighten the screws that screws. - Page 16 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Welbilt equipment comes with KitchenCare® and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
