Summary of Contents for Delfield F5MR48N

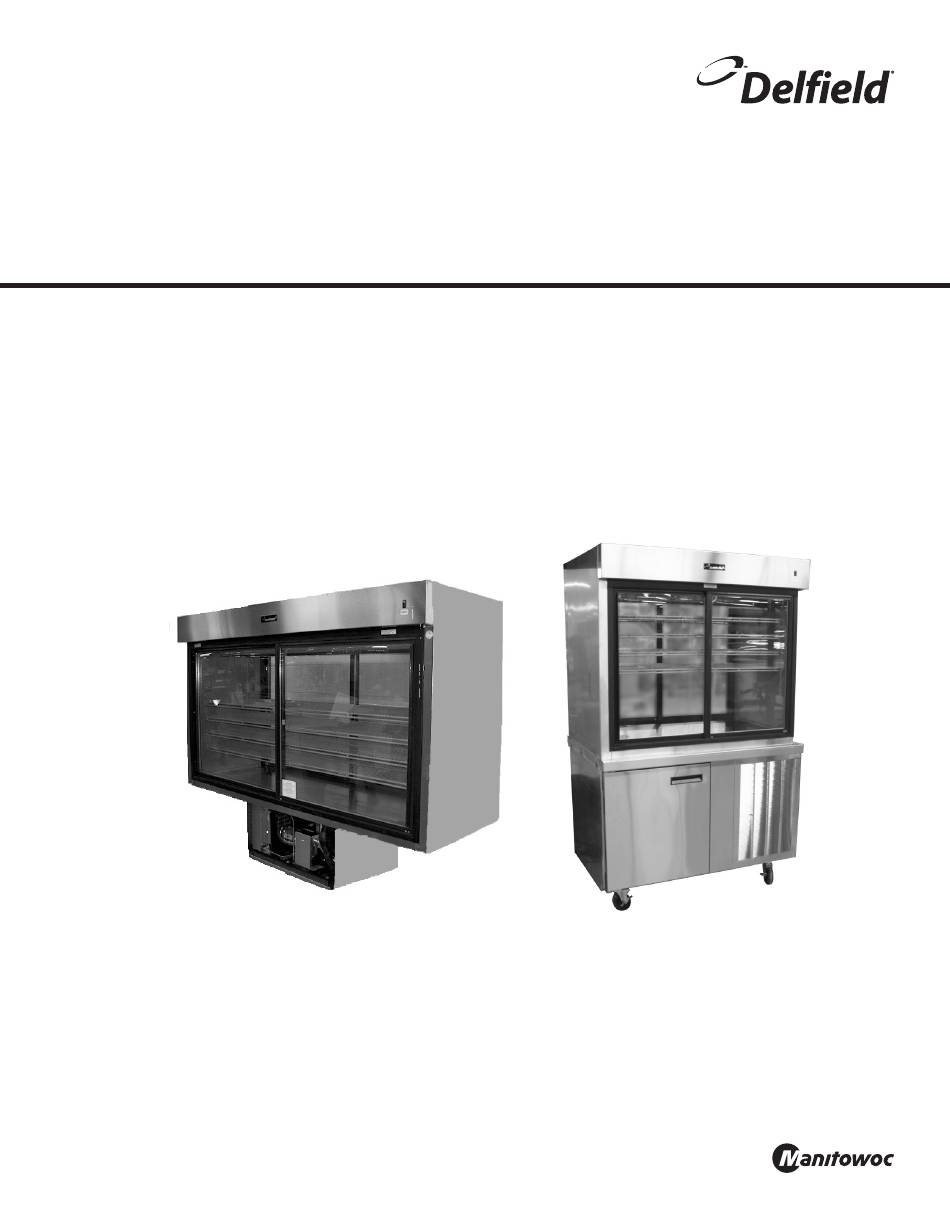

- Page 1 F5 and F15 Series Refrigerated Display Cases Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9291460 6/15...
- Page 2 F5 & F15 Series Service and Installation Manual Important Warning And Safety Information WARNING Read This Manual Thoroughly Before Operating, Installing, Or Performing Maintenance On The Equipment. WARNING Failure To Follow Instructions In This Manual Can Cause Property Damage, Injury Or Death. WARNING Do Not Store Or Use Gasoline Or Other Flammable Vapors Or Liquids In The Vicinity Of This Or Any Other Appliance.
-
Page 3: Table Of Contents
F5 & F15 Series Service and Installation Manual Contents Receiving & Inspecting Equipment ...........3 Serial Number Location ..............4 Warranty Information.................4 Regulatory Certifications ..............4 Specifications................5-6 Installation ..................7-8 Shelf Installation ................9 Display Lock Operation ..............9 Operation ..................9 Temperature Control Settings ............10 Pressure Control Settings ...............10 Maintenance................ -
Page 4: Serial Number Location
Always have the serial number of your unit available when calling for parts or service. A complete list of authorized Delfield parts depots is available at www.delfield.com. ©2015 The Delfield Company. All rights reserved. Reproduction without written permission is prohibited. -
Page 5: Specifications
24” (61cm) Deep Remote Drop-In Refrigerated Display Cases EVAPORATOR DISPLAY VOLTS/ CABINET CAPACITY HERTZ/ LOAD BTU/ MODEL PHASE AMPS HOUR °TD TEMP F5MR48N 48" (121.9cm) 24" (61.0cm) 42" (106.7cm) 115/60/1 1215 20° 15° F5SR48N 48" (121.9cm) 24" (61.0cm) 42" (106.7cm) 115/60/1 1867 20°... - Page 6 F5 & F15 Series Service and Installation Manual F15 Series Specifications 24” (61cm) Deep Remote Serview Refrigerated Display Cases EVAPORATOR EVAPORATOR BASE VOLTS/ CABINET DISPLAY CAPACITY CAPACITY HERTZ/ LOAD BTU/ MODEL PHASE AMPS HOUR °TD TEMP °TD TEMP F15MR48N 48" (121.9cm) 31.5"...
-
Page 7: Installation
F5 & F15 Series Service and Installation Manual Installation: Self-Contained F5 Series Location condensate evaporator, or the evaporator fails, the unit’s drain must have an outlet to an appropriate drainage area or Units represented in this manual are for indoor use only. All container. - Page 8 F5 & F15 Series Service and Installation Manual Installation: Self-Contained F15 Series Location Plumbing Units represented in this manual are for indoor use only. Be Self-contained models are standard with a condensate sure the location chosen has a floor strong enough to support evaporator.
-
Page 9: Shelf Installation
After turning the ON/OFF switch to ON the unit’s com pres sor F15 Refrigerated Base Evaporator Fan Operation will begin operating. Delfield display cases are designed to When the refrigerator is initially powered up or immediately maintain an operational temperature of 36°F to 40°F (2°C to following a power outage the unit will begin cooling after a 3-6 4°C) in both the display (F5 and F15 Series) and storage areas... -
Page 10: Temperature Control Settings
7 for lower temperatures. of the unit. Contact KitchenCare (844) 724-2273 or your local service agent for additional assistance. Delfield is not responsible for charges incurred while adjusting the thermostat. Base Temperature Control Settings... -
Page 11: Maintenance
F5 & F15 Series Service and Installation Manual Maintenance Never hose down interior or exterior of units with breakdown the steel and begin to form discoloration or rust. water. This will void the warranty. Wipe interior dry Proper cleaning of stainless steel requires soft cloths or plastic of any water accumulation. - Page 12 F5 & F15 Series Service and Installation Manual Maintenance, continued Doors/Hinges Over time and with heavy use the doors hinges may become loose. If this happens tighten the screws that mount the hinge brackets to the frame of the unit. Loose or sagging doors can cause the hinges to pull out of the frame, which may damage both the doors and the hinges.
-
Page 13: Condenser Air Flow
F5 & F15 Series Service and Installation Manual Condenser Air Flow: F5 F5 units are designed to be operated with two supplied louvered 4.00" (10.2cm) from the counter-top. Proper installation must panels for proper air flow. Failure to provide the proper air flow provide for air flow to and from the condensing unit. -
Page 14: Sliding Door
F5 & F15 Series Service and Installation Manual Sliding Door All Delfield F5 Series and F15 Series display cases feature a sliding door assembly. A typical sliding door assembly is shown in the illustration at right. Maintenance Frequent, regular cleaning with a mild soap and water solution will keep the tracks free of foreign matter and will insure many years of service. -
Page 15: Notes
F5 & F15 Series Service and Installation Manual Notes... - Page 16 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
