Installation Instructions
MODELS:
612T, 612R
4K60 4:4:4 DP Tx/Rx over Extended-Reach
Multi-Mode Fiber Optic Cable
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where
updates to this user manual may be found.
We welcome your questions, comments, and feedback.
www.KramerAV.com
info@KramerAV.com
P/N:
2
Rev:
Advertisement
Related Manuals for Kramer 612T
Summary of Contents for Kramer 612T
- Page 1 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.

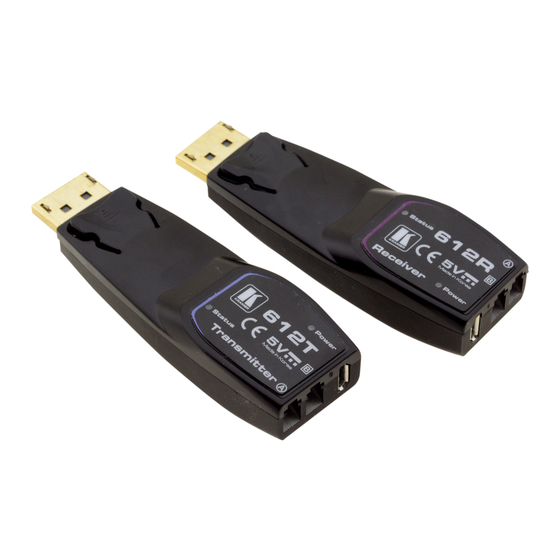

- Page 2 612T, 612R 4K60 4:4:4 DP Tx/Rx over Extended-Reach Multi-Mode Fiber Optic Cable Congratulations on purchasing your Kramer 612T 612R Plug and Play active 4K60 4:4:4 DP Tx/Rx over Extended-Reach Multi-Mode (MM) Fiber Optic cable. 612T 612R extend signals of up to 4096x2160 @60Hz, over a distance of up to 200m (656ft) without signal scaling or data compression, providing a maximum data rate of 21.6Gbps (5.4Gbps per lane).
-
Page 3: Troubleshooting
Connect the two LC optical fibers between 612T and 612R. Connect (A) to (A) and (B) to (B). Make sure that the duplex connectors are connected properly. The STATUS LED flashes. Do not look directly into the LC connectors on the... -
Page 4: Specifications
4096x2160 at a 60Hz refresh ratio to check if the graphic resolution is properly defined. • Reset the system by disconnecting and then reconnecting the 612T or 612R, or by disconnecting and then reconnecting the power adapters. It is important to connect the devices correctly as marked:...
