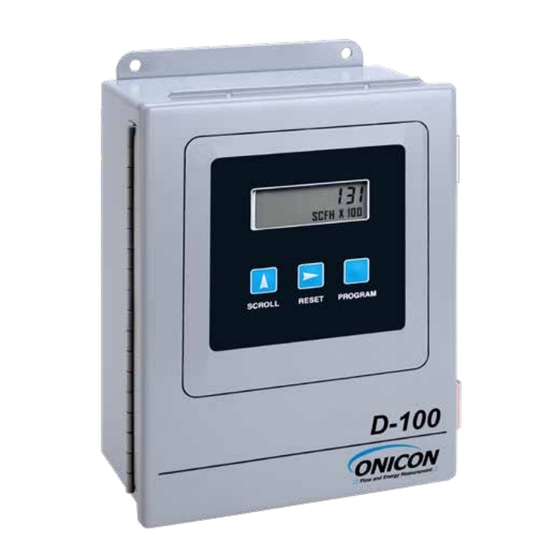

Summary of Contents for Onicon D-100

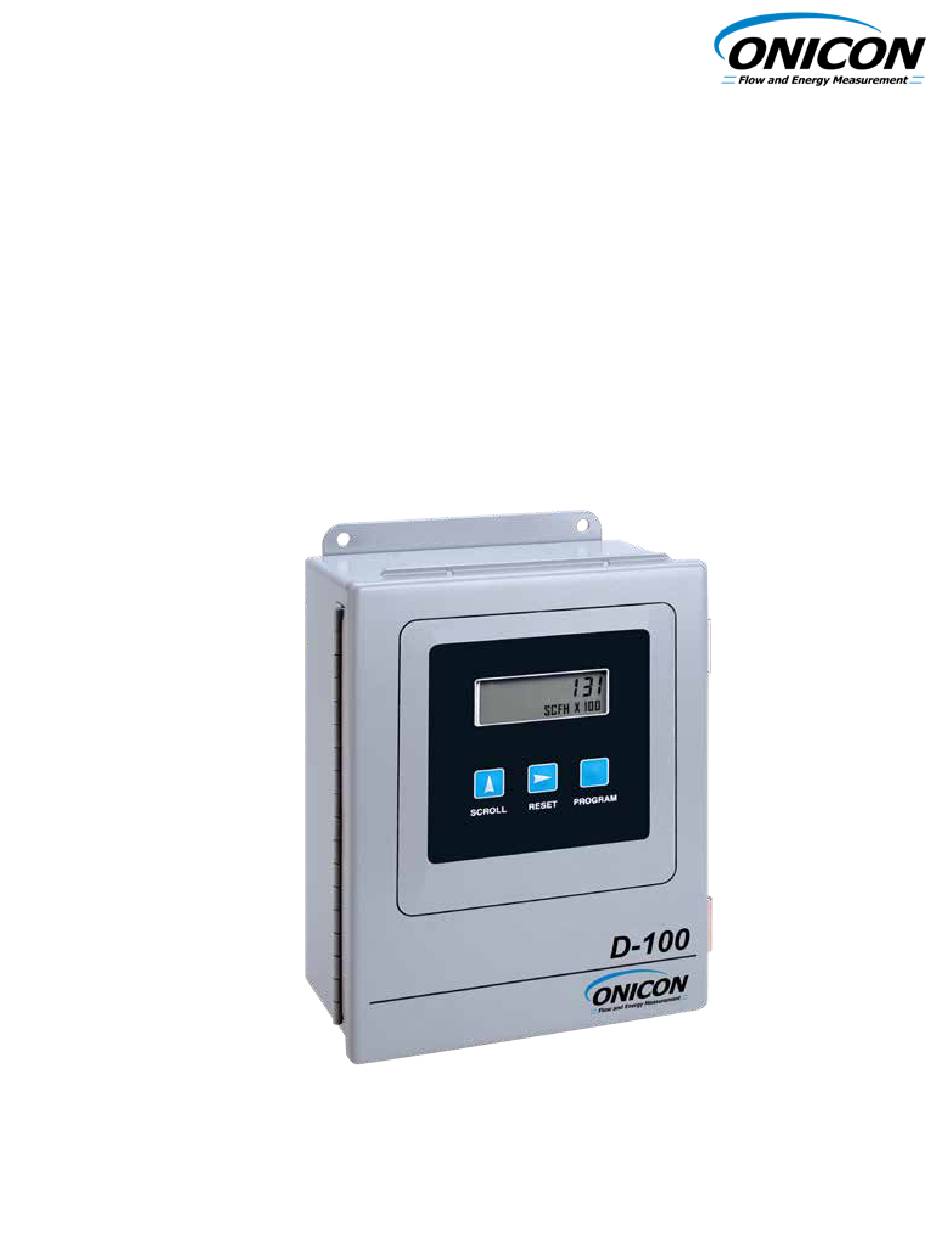

- Page 1 JCI Metasys N2 D-100 FLOW DISPLAY Johnson Controls Metasys ® Network Interface Installation and Operation Guide 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 www.onicon.com • sales@onicon.com 03-18 0659-6 / 18344...
- Page 2 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page...
-
Page 3: Table Of Contents
NETWORK TROUBLESHOOTING TIPS ............18 TROUBLESHOOTING ................18 APPENDIX D-100 PROCESSOR BOARD 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... - Page 4 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page...
-
Page 5: Introduction
Device address range: 1 – 255 (Default: 017) Baud rate: 9600 Termination: none Biasing: none 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... -
Page 6: Network Signal Connections
Incoming and outgoing RS485 cable shield wires should be connected together, but must not be connected to the D-100. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344... -
Page 7: Optional Network Interface With Isolated Digital Pulse Input
Fig. 1 AUX PULSE INPUT (Di3) CONNECTOR (T2) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... - Page 8 BTU Meter Di3 In (+) Di3 In (-) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page...
- Page 9 BTU Meter Di3 In (+) Di3 In (-) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page...
-
Page 10: Rs485 Biasing And Termination
0-9. button. panel. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... - Page 11 (See appendix page.) network. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page...
-
Page 12: Point File (.Ddl)
Reset total for ADF5 OVERRIDE Binary Output, Object 5-ON 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... -
Page 13: Volume Or Mass Rate (Ai2)
1,000 KCFS 10,000 10KCFS 100,000 100KCS 1,000,000 MEGCFS 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... -
Page 14: Volume Or Mass Total (Adf2 & Adf4)
10,000 10KLTR LITER 100,000 100KLR LITER 1,000,000 MEGKLTR 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... -
Page 15: Generic Analog Input(S) (Ai3 & Ai4)
DEG C DEGC Instantaneous Relative Humidity % RH 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... -
Page 16: Auxiliary Pulse Input (Adfs)
BOTITLE “Binary Outputs” * ANALOG INPUTS COS AVAILABLE CSAI “AI2”,N,N,”VOLUMERT”,”GPM” 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page... - Page 17 *Reset Volume Totals with the command Override BO ON. CSBO “BO2”,Y,N,”RST_VOL”,”n/a”,”reset” ***************** End Bidirectional Mode **************************** 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page...
-
Page 18: Network Troubleshooting Tips
Shield wires must not be connected to the RS485 connector on the D-100. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344... - Page 19 Prog Mode Enable Device Address Program Enable Serial Comm 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100-N2 Network Interface Installation Guide 03/18 - 0659-6 / 18344 Page...
