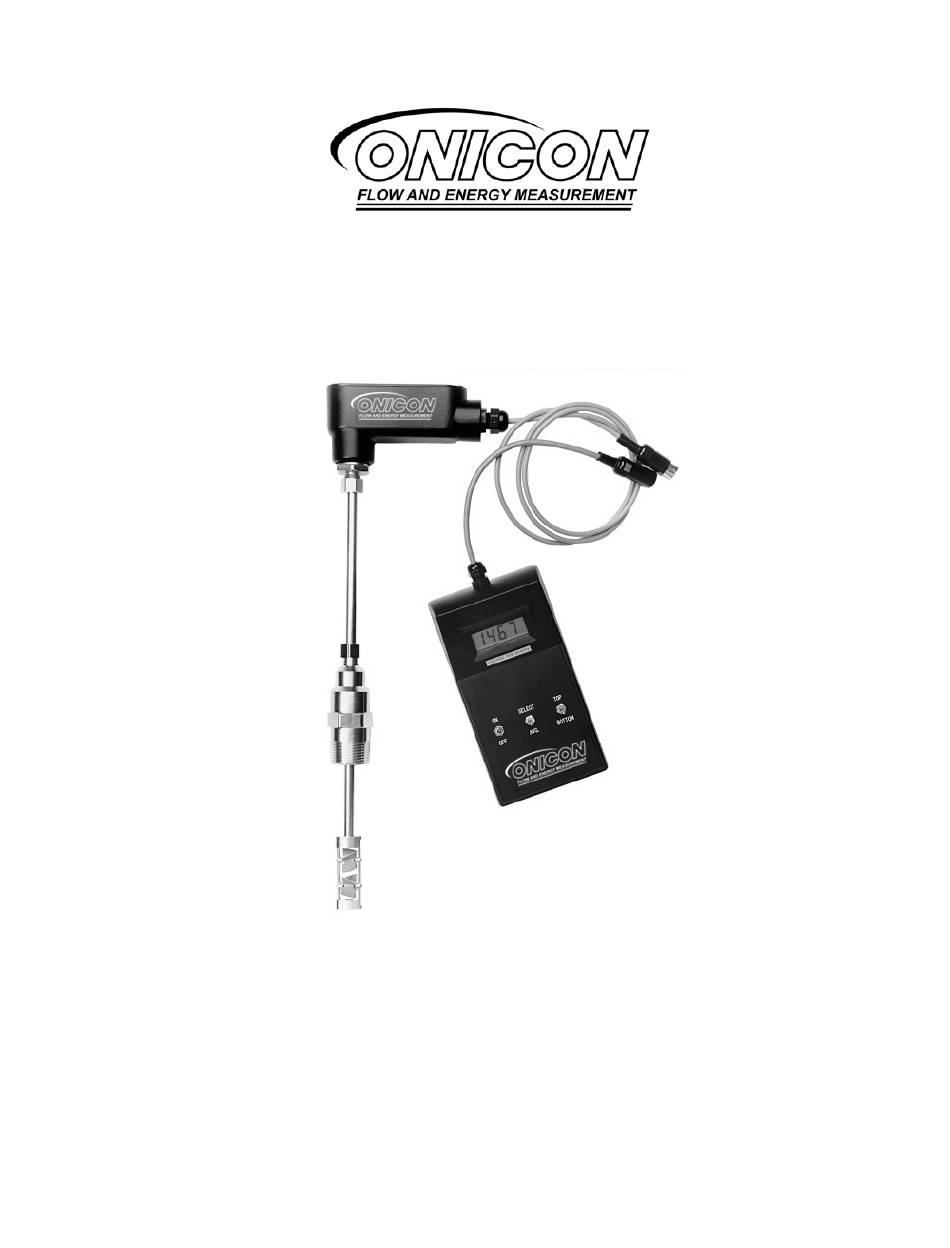

- Page 1 M odel D-1401 & D-1402 Portable M etering System I nstallation and Operation Guide 11451 Belcher Road South, Largo, FL 33773 Tel +1 (727) 447-6140 Fax +1 (727) 442-5699 www.onicon.com E-mail: sales@onicon.com 03-17...
- Page 2 Service requirements This product contains a limited number of user serviceable parts. Only qualified personnel should install or service this product. Please do not hesitate to contact ONICON for assistance in the unlikely event that this product requires service. D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17...
-
Page 3: Table Of Contents
3.0 INSTALLATION, REMOVAL AND ADJUSTMENT ............... 10 3.1 Site Selection ...........................10 3.2 Mechanical Installation ......................11 3.3 Insertion of the Meter ......................13 3.4 Removal of the Meter .......................14 CONDITIONS OF SALE ..........................16 D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... -
Page 4: Introduction

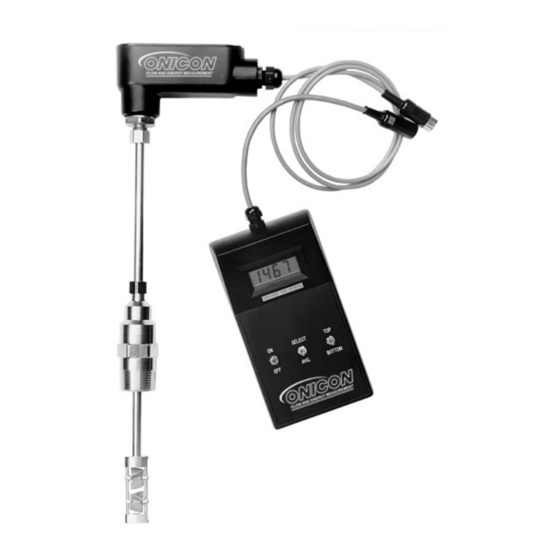

System. SYSTEM DESCRI PTI ON The D-1401 and D-1402 Portable Metering Systems are designed to measure the flow rate of conductive liquids in multiple pipe sizes. They can also be used to perform flow profiling for analysis of flow measurement problems. -
Page 5: System Components
• Model D-1402 battery powered hand-held display • Carrying case • Owner’ s manual • Laminated conversion chart. (* Serialized for the specific F-1200 flow meter * ) D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... -
Page 6: System Operation And Set-Up
SECTI ON 2.0 SYSTEM OPERATI ON AND SET-UP SYSTEM OPERATI ON The D-1401 and D-1402 Display Module LCD display shows the flow rate as a number representing the frequency output signal, in Hertz, from the flow meter. The D-1401 Display Module shows the frequency output signal of the single turbine from the F-1100. -
Page 7: Basic Flow Measurement
D-1402 systems, the top turbine output can be observed to see when it clears the pipe wall and begins to spin.) Beginning at that point, start making measurements at the desired incremental insertion depths. D-1402 System Only: D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... -
Page 8: System Storage And Maintenance Recommendations
70 percent tap water solution. An old toothbrush can be used to lightly brush around the bearings. Rinse with clean water and blow off excess water before storing. FLOW M ETER I NFORM ATI ON D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... -
Page 9: Flow Meter Information
Circuitry within the flow meter electronics enclosure then converts the rotational rate to a frequency output. D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... -
Page 10: Installation, Removal And Adjustment
The environment should be free of corrosive liquids/fumes, temperature extremes and heavy vibration. The following diagrams should be used as a guide to the proper location for installing the meter. D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... -
Page 11: Mechanical Installation
M ECHANI CAL I NSTALLATI ON To take advantage of the ONICON Flow Meter’ s built-in Hot Tap feature, it must be installed through an isolation valve. The location must allow sufficient overhead clearance for meter removal. IMPORTANT! A full 1” opening is required to clear the turbine assembly. Make sure that your valves and fittings are full port and at least 1”... - Page 12 Then, a hot tap drilling apparatus can be used to drill a 1” diameter hole through the valve, without shutting down or draining the pipe. (See Appendix A for List of Available Onicon Installation Hardware Kits for other types of pipe materials and applications.) After fitting the necessary plumbing hardware, flush the entire system so that it is free of flux, solder and slag.
-
Page 13: Insertion Of The Meter
This will require less torque than you might think, so be careful not to overtighten it and risk damaging the adapter, nut or stem. D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... -
Page 14: Removal Of The Meter
Partially unscrew the adapter and allow pressure to vent from the hot tap adapter. There will be very little water in the hot tap adapter; however, a small bucket or pan should be held under the valve to catch any spilled water. D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17... - Page 15 CAUTI ON I n hot water systems, even a small amount of water can cause serious personal injury. Use extra caution when working with hot water meters. D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17...
-
Page 16: Conditions Of Sale
2. DELI VERY AND TI TLE: All product shipments are F.O.B. shipping point and title passes to the Buyer at the time ONICON delivers the merchandise to the carrier. Risk of loss or damage to the product passes to the Buyer at the time ONICON delivers the product to the carrier. The Buyer immediately upon receipt should inspect all shipments, and should there be any evidence of damage or loss in transit, Buyer must file claims or tracers upon carrier.
