Onicon D-100 Installation Manual

Flow display
Hide thumbs Also See for D-100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual, Installation Manual
Siemens P1-FLN

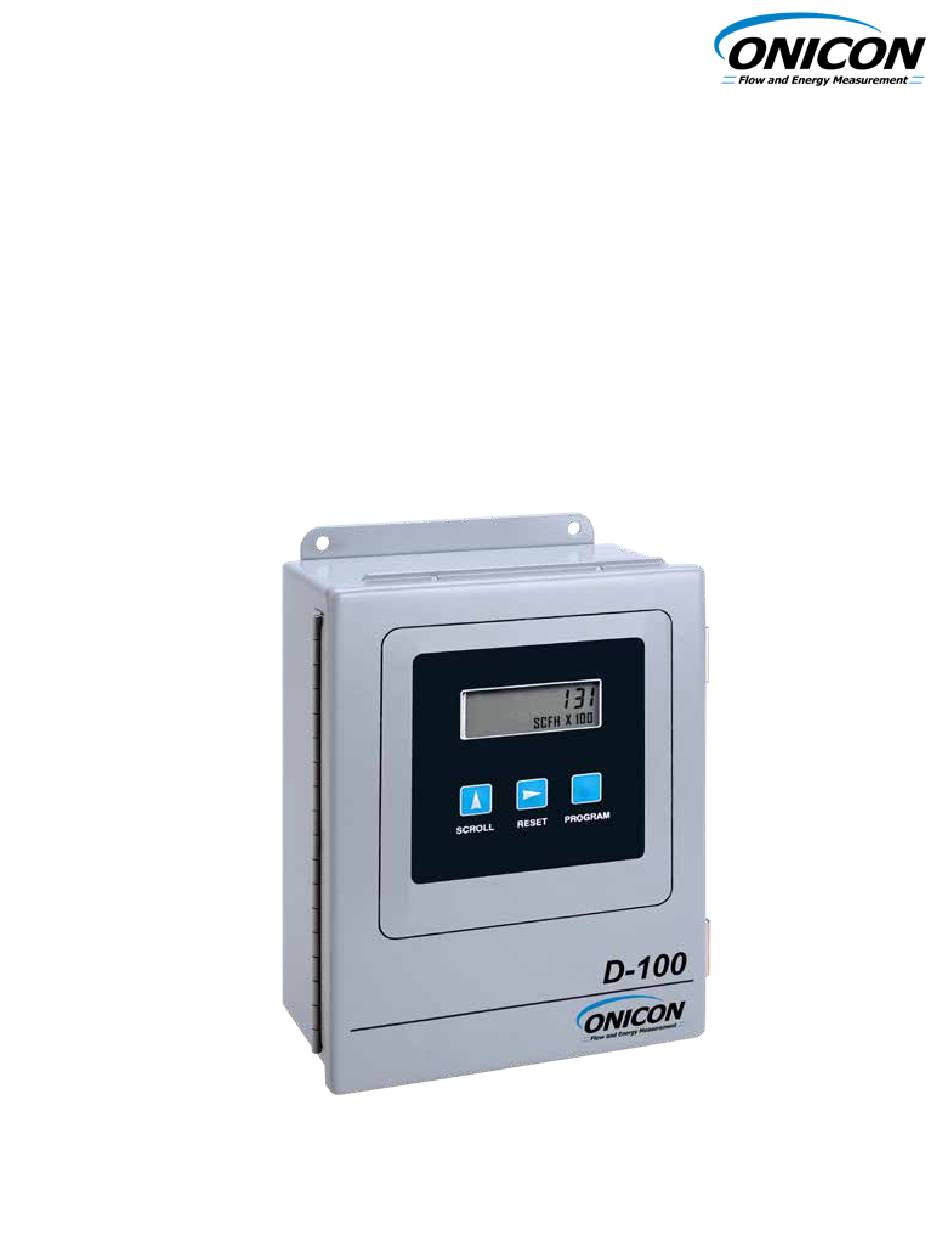

D-100 FLOW DISPLAY
Siemens P1-FLN Network Interface Installation Guide
11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699
www.onicon.com • sales@onicon.com
0660-5 / 18343
03-18
