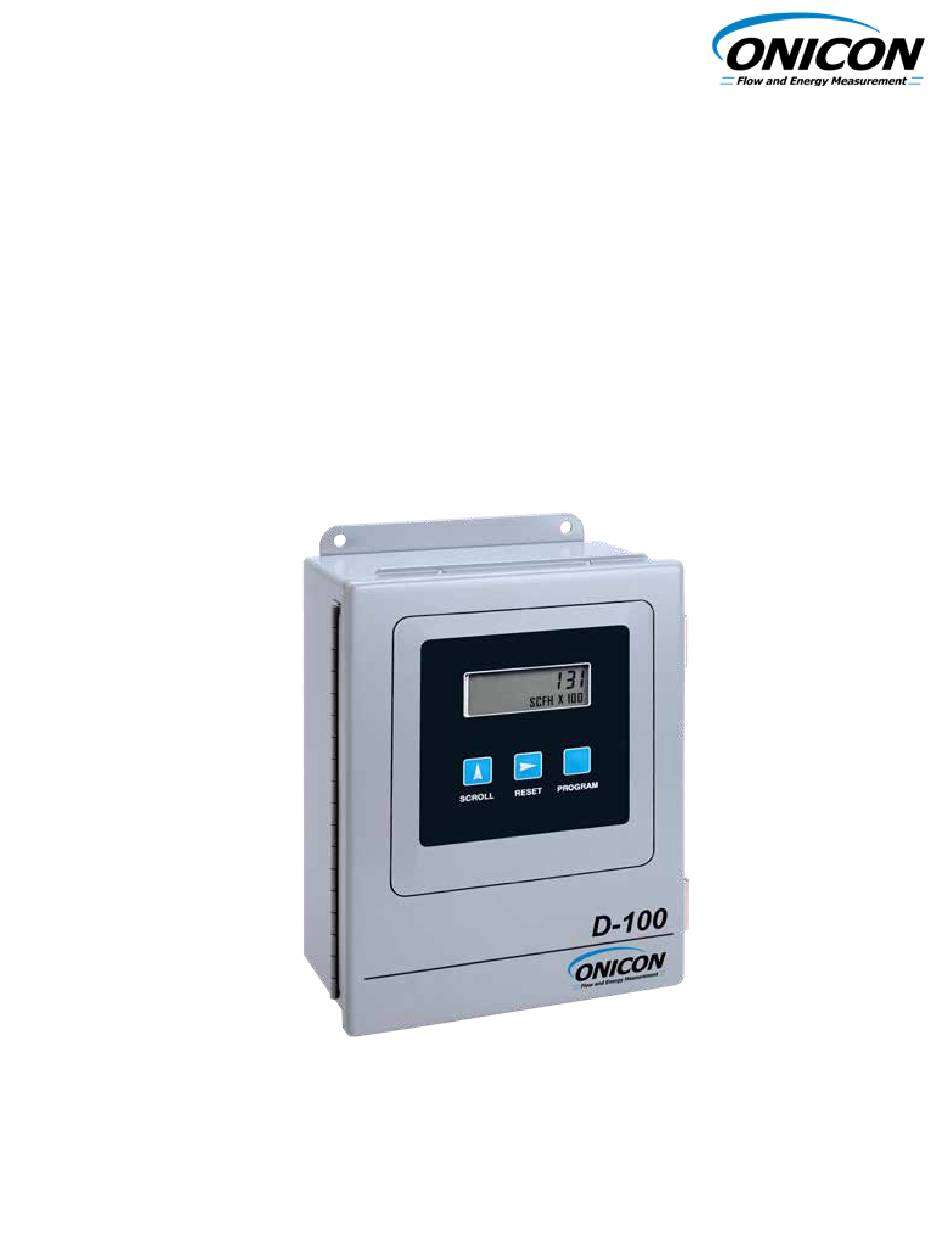

D-100 FLOW DISPLAY with NETWORK INTERFACE
Installation and Operation Guide
11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699
www.onicon.com • sales@onicon.com
0634-20 / 18340
03-18

Advertisement

Table of Contents
loading

Related Manuals for Onicon D-100

Summary of Contents for Onicon D-100

  • Page 1 D-100 FLOW DISPLAY with NETWORK INTERFACE Installation and Operation Guide 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 www.onicon.com • sales@onicon.com 0634-20 / 18340 03-18...
  • Page 2 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...

  • Page 3: Table Of Contents

    5.1.3 Ai3 & Ai4 Test Signals ..............28 Troubleshooting ..................29 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...
  • Page 4 D-100 ANALOG OUTPUT BOARD D-100 ANALOG OUTPUT BOARD With 4 Analog Outputs 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 5: Introduction

    Contact closure output to provide an indication of flow direction 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...
  • Page 6 Total will rollover to zero when maximum count is exceeded. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 7: Additional Hardware Required

    Doing so will result in significant errors in the flow reading. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 8: Installation

    11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 9: Mechanical Installation

    Do not drill additional holes in this enclosure. Doing so may damage the electronic circuitry contained within and will void all warranties. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 10: Electrical Installation

    6 and 7. Do not exceed 4.5 in-lb (0.5 Nm) of torque when tightening. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 11: Onicon Turbine Flow Meters

    D-100 at the terminals provided. The shield connection at the flow meter should be left unterminated. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 12: Onicon F-3500 Flow Meters

    See FB-3500 installation and operation guide for additional information on properly grounding the meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 13: Onicon F-3100 And F-3200 Flow Meters

    D-100 shield terminals and left unterminated at the flow meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 14: Onicon F-2500 Flow Meters

    D-100 shield terminals and left unterminated at the flow meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 15: Onicon F-2600 & 2700 Series Flow Meters

    D-100 shield terminals and left unterminated at the flow meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 16: Onicon F-4200 Series Flow Meters

    D-100 shield terminals and left unterminated at the flow meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 17: Onicon F-4400 Series Flow Meters

    (E) Scaled + (Orange) (E) Scaled - (White) 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...

  • Page 18: Onicon F-5500 Series Flow Meters

    D-100 shield terminals and left unterminated at the flow meter. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 19: Onicon F-5400 Series Flow Meters

    D-100 at the terminals provided. The shield connection at the flow meter should be left unterminated. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 20: Frequency Pulse Flow Input (Di2)

    Di3 on the total page. Contact ONICON for more information. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 21: Totalizer Outputs And Mode Status

    Do not exceed 4.5 in-lb (0.5 Nm) of torque, when tightening the terminals. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 22: Input Power

    LED1 Not Used 20075-50 REV. A Input Power Connection 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...
  • Page 23 LED1 Not Used 20075-50 REV. A Input Power Connection 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...

  • Page 24: D-100 Start-Up And Commissioning

    PULSE COUNT ONLY (Engineering units entered as text) Alarm Status None Serial Number None 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...

  • Page 25: Units And Multipliers

    The new setting is saved and the display reverts to the run mode. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 26: Commissioning

    Shane Hamilton ONICON Incorporated certifies that the flow and temperature sensors provided with this Btu meter have been individually calibrated based on the application specific data provided above; using standards directly traceable to the U.S. National Institute of Standards and Technology (N.I.S.T.).
  • Page 27 Record displayed values D-100: D-100: D-100: System: System: System: 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...

  • Page 28: Diagnostics

    D-100 processor board input circuitry for Ai3 and Ai4. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...

  • Page 29: Troubleshooting

    For technical assistance, contact ONICON Incorporated at (727) 447-6140. 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...
  • Page 30 D-100 ANALOG OUTPUT BOARD D-100 ANALOG OUTPUT BOARD With 4 Analog Outputs 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340...
  • Page 31 Optional: 120 or 230 VAC 2. ANALOG OUTPUT BOARD 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...
  • Page 32 Prog Mode Enable Device Address Program Enable Serial Comm 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...
  • Page 33 250 VOLT 250 VOLT 250 VOLT SLO-BLO SLO-BLO SLO-BLO 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...
  • Page 34 FLOW DELTA T BTU RATE LO TEMP HI TEMP 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...
  • Page 35 D-100 ANALOG OUTPUT BOARD with 4 analog outputs 11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699 • sales@onicon.com D-100 Flow Display Manual 03/18 - 0634-20 / 18340 Page...
