ONICON
Flow Display with Network Interface
Flow Display with Network Interface
Installation and Operation Guide
Installation and Operation Guide
D-100
D-100
DOC-0003871 Rev.B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onicon D-100

Summary of Contents for Onicon D-100

  • Page 1 D-100 D-100 Flow Display with Network Interface Flow Display with Network Interface Installation and Operation Guide Installation and Operation Guide ONICON DOC-0003871 Rev.B...
  • Page 2 D - 100 NETWORK DISPLAY SAFETY INFORMATION The D-100 Flow Display was calibrated at the factory before shipment. To ensure correct use of the system, please read this manual thoroughly. Regarding this manual: • This manual should be passed on to the end user.

  • Page 3: Table Of Contents

    3.3.1 Input Signal Connections from Flow Meter ..........10 3.3.1.1 ONICON F-1000 Series Flow Meters ..........10 3.3.1.2 ONICON F-2000 Series Flow Meters (Loop Powered) ... 12 3.3.1.3 ONICON FT-3100/3200 Series Flow Meters ......13 3.3.1.4 ONICON FT-3400 Series Flow Meters .......... 14 3.3.1.5 ONICON FSM-3 Series Flow Meters ..........
  • Page 4 D - 100 NETWORK DISPLAY APPENDIX D-100 DISPLAY MOTHER BOARD D-100 PROCESSOR BOARD D-100 POWER SUPPLY BOARD D-100 ANALOG OUTPUT BOARD D-100 ANALOG OUTPUT BOARD With 4 Analog Outputs ONICON Incorporated 727.447.6140 Page 4 onicon.com...

  • Page 5: Introduction

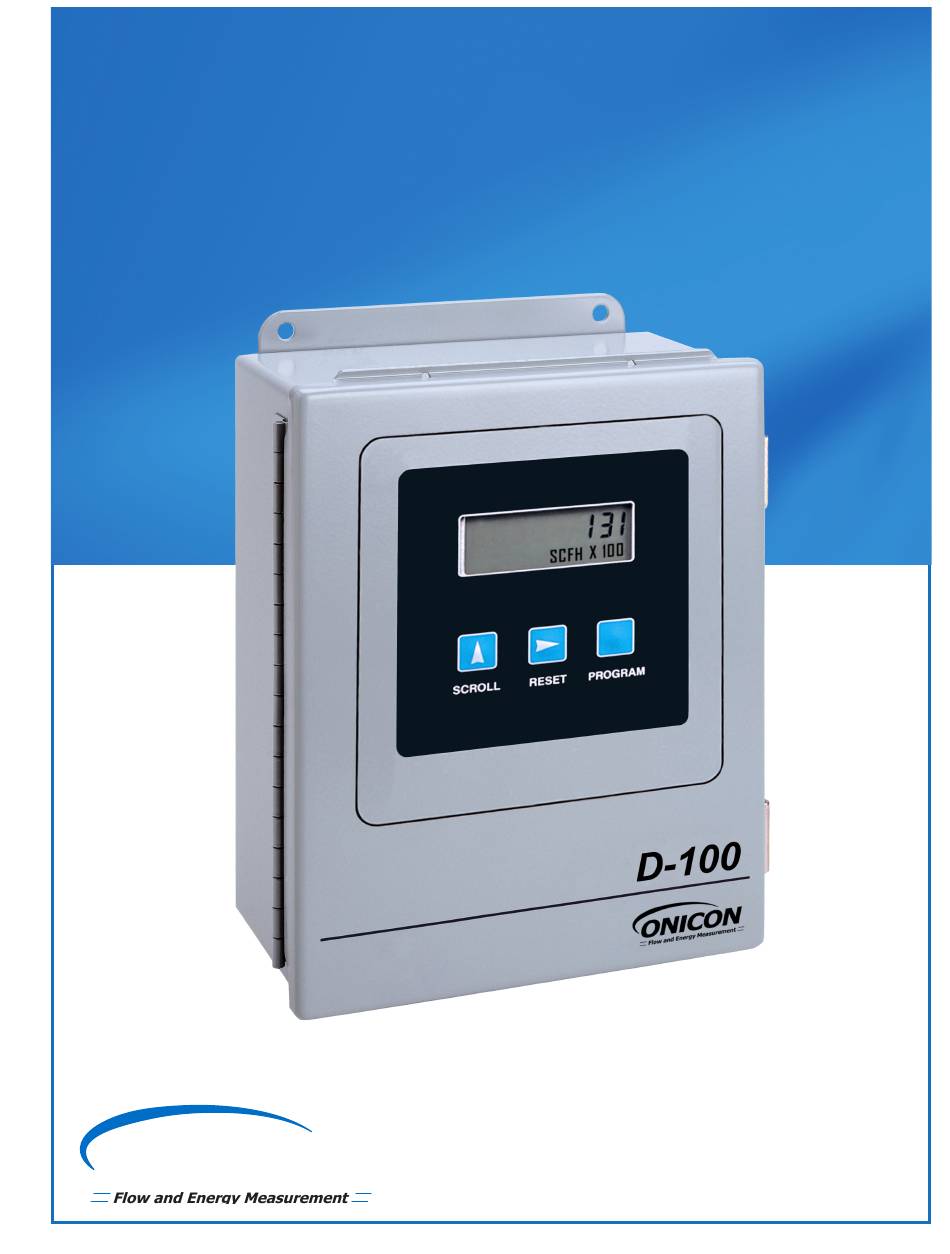

    1.2 TYPICAL D-100 NETWORK INTERFACE MODULE The D-100 is a totalizing display module that provides a local indication of liquid, gas or steam flow rate and total data. It can also be configured with an optional network interface to communicate data to the building control network.
  • Page 6 Analog Inputs: 0.1% of full scale MAINTENANCE Analog Outputs: 0.1% of full scale ONICON recommends periodic inspection and recalibration for sensors connected to the D-100. PROGRAMMING No other periodic maintenance is required for the Factory programmed for specific application. main unit.

  • Page 7: Additional Hardware Required

    The ONICON D-100 is delivered fully programmed and ready to use with a specific flow meter. The serial number of the flow meter and any other sensor used with this D-100 will be found on a label located inside the enclosure. Do not attempt to use the D-100 with any other flow meter or sensor. Doing so will result in significant errors in the flow reading.

  • Page 8: Installation

    Find an easily accessible location where wire connections can be made and meter readings can be taken from floor level. Mount the D-100 on a vibration free surface. Avoid locations such as the plenum of a fan coil, heat exchanger or any housing that may contain electric motors or other strong sources of electrical interference.

  • Page 9: Mechanical Installation

    3.2 MECHANICAL INSTALLATION IMPORTANT NOTE The ONICON D-100 Display is a custom calibrated system. Unless specifically noted in writing by ONICON, ALL COMPONENTS (Display and flow meter) share the same serial number and must be installed together as a system. Mixing components from different systems will result in significant errors in calibration.

  • Page 10: Electrical Installation

    The drawing below shows where signal, power and earth connections are made on the mother board located inside the D-100 enclosure. Network and digital pulse input connections are made on the network interface board (not shown). Refer to section 3.3.1 for detailed information on connecting flow meters, sensors, output signal and power connections.
  • Page 11 Connections shown with (B) are used with F-1XXX-10 models. Connections shown with (C) are used with F-1XXX-11 models. Factory wire colors are shown from flow meter cable or additional cable provided by ONICON, field wire colors may change from junction box.

  • Page 12: Onicon F-2000 Series Flow Meters (Loop Powered)

    D - 100 NETWORK DISPLAY 3.3.1.2 Input Signal Connections - F-2000 Series Flow Meters (Loop Powered Versions) FLOW METER INPUTS CONNECTIONS D-100 D-100 INTERNAL CIRCUIT BOARD (+) DC IN ANALOG INPUTS OUTPUTS SIGNAL TOTALIZER OUTPUT (-) DC IN REFERENCE SHIELD...

  • Page 13: Onicon Ft-3100/3200 Series Flow Meters

    D - 100 NETWORK DISPLAY 3.3.1.3 Input Signal Connections - FT-3100/3200 Series Flow Meters FLOW METER INPUTS CONNECTIONS D-100 FT-3100/3200 INTERNAL CIRCUIT BOARD FT-3100/3200 SIGNAL CONNECTIONS D-100 INTERNAL CIRCUIT BOARD DIGITAL OUTPUT 1 & 2 ANALOG INPUTS OUTPUTS SIGNAL SHIELD TOTALIZER OUTPUT...

  • Page 14: Onicon Ft-3400 Series Flow Meters

    240 VAC: 207-253 VAC, 50/60 Hz, 15 VA (220 VAC minimum for versions with IP COMMS + 4 Channel Analog Card) 2. The D-100 does not provide power to the FT-3400 Flow Meters. Input power for the flow meters must be provided separately. Refer to FT-3400 IOM for additional wiring information.

  • Page 15: Onicon Fsm-3 Series Flow Meters

    • 240 VAC: 207-253 VAC, 50/60 Hz, 15 VA 2. The D-100 does not provide power to the FSM-3 Series flow meters. Input power for the flow meters must be provided separately. Refer to FSM-3 Series IOM for additional wiring information.

  • Page 16: Onicon F-4300 Series Flow Meters

    • 120 VAC: 108-132 VAC, 50/60 Hz, 15 VA • 240 VAC: 207-253 VAC, 50/60 Hz, 15 VA 2. The D-100 does not provide power to the F-4300 flow meters. Input power for the flow meters must be provided separately. Refer to F-4300 IOM for additional wiring information.

  • Page 17: Onicon Ft-4600 Series Flow Meters

    D - 100 NETWORK DISPLAY 3.3.1.7 Input Signal Connections - FT-4600 Series Flow Meters D-100 INTERNAL CIRCUIT BOARD FLOW METER INPUTS CONNECTIONS ANALOG INPUTS OUTPUTS SIGNAL TOTALIZER OUTPUT REFERENCE (+) MODE 1 D-100 SIGNAL TOTALIZER OUTPUT REFERENCE (-) MODE 2...

  • Page 18: Onicon F-5400 Series Flow Meters

    Shield connections are required for proper operation. Failure to use shielded cable or to properly terminate shield connections may result in erratic operation. Shields should be terminated in the D-100 at the terminals provided. The shield connection at the flow meter should be left unterminated.

  • Page 19: Onicon F-5500 Series Flow Meters

    Shield and earth connections are required for proper operation. Failure to use shielded cable or to connect earth to both the flow meter and D-100 may result in erratic operation. Shields should be terminated at the D-100 shield terminals and left unterminated at the flow meter.

  • Page 20: Frequency Pulse Flow Input (Di2)

    4.5 in-lb (0.5 Nm) of torque, when tightening the terminals. 3.3.6 Digital Pulse Input (Di3) The D-100 can be provided with an optional digital pulse input. This option is only available on displays provided with serial communications. It allows the D-100 to receive a pulse input from an external device such as a power meter or gas meter.

  • Page 21: Totalizer Outputs And Mode Status

    The output signal type can be 4-20 mA, 0-10 VDC or 0-5 VDC and is field configurable. Contact ONICON for assistance in reconfiguring or reprogramming the analog inputs. See the configuration data sheet provided or the label located inside the D-100 for output specific configuration information.

  • Page 22: Input Power

    WARNING Conduit openings in the D-100 enclosure must be closed with UL listed fittings applicable to NEMA 13 en- closures, and mains voltage connections must be made through the pre-drilled conduit/strain relief open- ing located at the bottom of the enclosure. Failure to do so will result in an increased risk of injury.
  • Page 23 D - 100 NETWORK DISPLAY Operating from 24 VAC power The D-100 can be factory configured to operate from 24 ±4 V 50/60 Hz power. Be sure to connect a separate protective earth wire to the protective earth lug provided and shown below.

  • Page 24: D-100 Start-Up And Commissioning

    D - 100 NETWORK DISPLAY SECTION 4.0: D-100 START-UP AND COMMISSIONING 4.1 DISPLAY AND KEYPAD The display contains two lines of alphanumeric characters. The first line displays the numerical value of the quantity described by the second line of the display. The second line contains the engineering units and a multiplier, which can range from 1 to 1,000,000.

  • Page 25: Units And Multipliers

    If any unit or multiplier values are changed at the D-100, the analog output value(s) will also be changed. If you are unsure of the ramifications of any changes you are contemplating, please contact ONICON for assistance.

  • Page 26: Commissioning

    09/01/2004 Shane Hamilton ONICON Incorporated certifies that the flow and temperature sensors provided with this Btu meter have been individually calibrated based on the page. application specific data provided above; using standards directly traceable to the U.S. National Institute of Standards and Technology (N.I.S.T.).
  • Page 27 Compare and record the displayed values Scroll through the D-100 menu pages and confirm that the rate and total with those shown on the building control current values and engineering units shown agree with the information shown system.

  • Page 28: Diagnostics

    The ONICON D-100 display is programmable. Factory programmed settings provide rate and total values in accordance with the customer’s application data. Refer to the D-100 calibration sheet for a complete listing of factory settings. These settings may be reviewed and changed with assistance from ONICON factory service personnel.

  • Page 29: Troubleshooting

    Displayed flow rate is too high or too low. • Verify that the serial number of the flow meter matches the serial number shown on the label inside the D-100 front cover. • Verify that the correct supply voltage is present at the flow meter power input.
  • Page 30 D - 100 NETWORK DISPLAY APPENDIX D-100 DISPLAY MOTHER BOARD D-100 PROCESSOR BOARD D-100 POWER SUPPLY BOARD D-100 ANALOG OUTPUT BOARD D-100 ANALOG OUTPUT BOARD With 4 Analog Outputs ONICON Incorporated 727.447.6140 Page 30 onicon.com...
  • Page 31 APPENDIX D-100 DISPLAY MOTHER BOARD Pulse and analog output connections Ai3 & Ai4 analog ANALOG INPUTS input connections OUTPUTS SIGNAL TOTALIZER OUTPUT REFERENCE (+) MODE 1 SIGNAL TOTALIZER OUTPUT REFERENCE (-) MODE 2 SHIELDS MODE STATUS FLOW METER INPUTS 24 VDC SUPPLY +...
  • Page 32 APPENDIX D-100 FLOW DISPLAY PROCESSOR BOARD Reset Temp Test Prog Mode Enable Device Address Program Enable Serial Comm ONICON Incorporated 727.447.6140 A - 2 onicon.com...
  • Page 33 APPENDIX D-100 POWER SUPPLY BOARD J2-12 J2-1 VAR1 Fuse Holder C6 D6 D5 C5 1/4 AMP LED1 Not Used 20075-50 REV. A VAC CONNECTION FUSES 24 VAC 120 VAC 230 VAC 1 AMP 1/4 AMP 1/8 AMP 250 VOLT 250 VOLT...
  • Page 34 APPENDIX D-100 ANALOG OUTPUT BOARD FLOW DELTA T BTU RATE LO TEMP HI TEMP ONICON Incorporated 727.447.6140 A - 4 onicon.com...
  • Page 35 APPENDIX D-100 ANALOG OUTPUT BOARD with 4 analog outputs ONICON Incorporated 727.447.6140 A - 5 onicon.com...
