Onicon D-100 Installation Manual

Flow display, dual network interface, bacnet & modbus
Hide thumbs Also See for D-100:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual

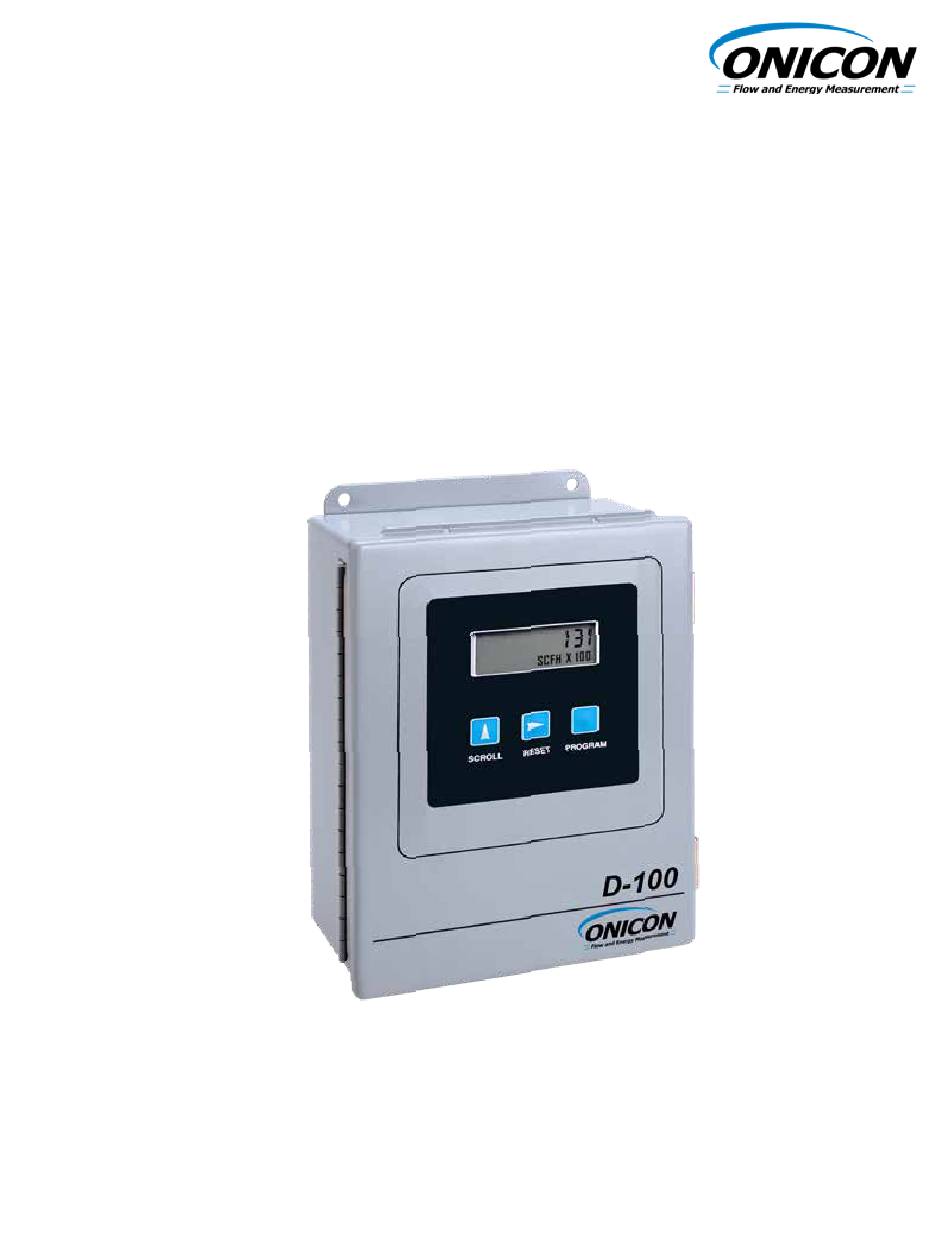

D-100 Flow Display
Dual Network Interface Installation Guide
(BACnet & MODBUS)
11451 Belcher Road South, Largo, FL 33773 • USA • Tel +1 (727) 447-6140 • Fax +1 (727) 442-5699
www.onicon.com • sales@onicon.com
1015-2 / 35094
03-18
