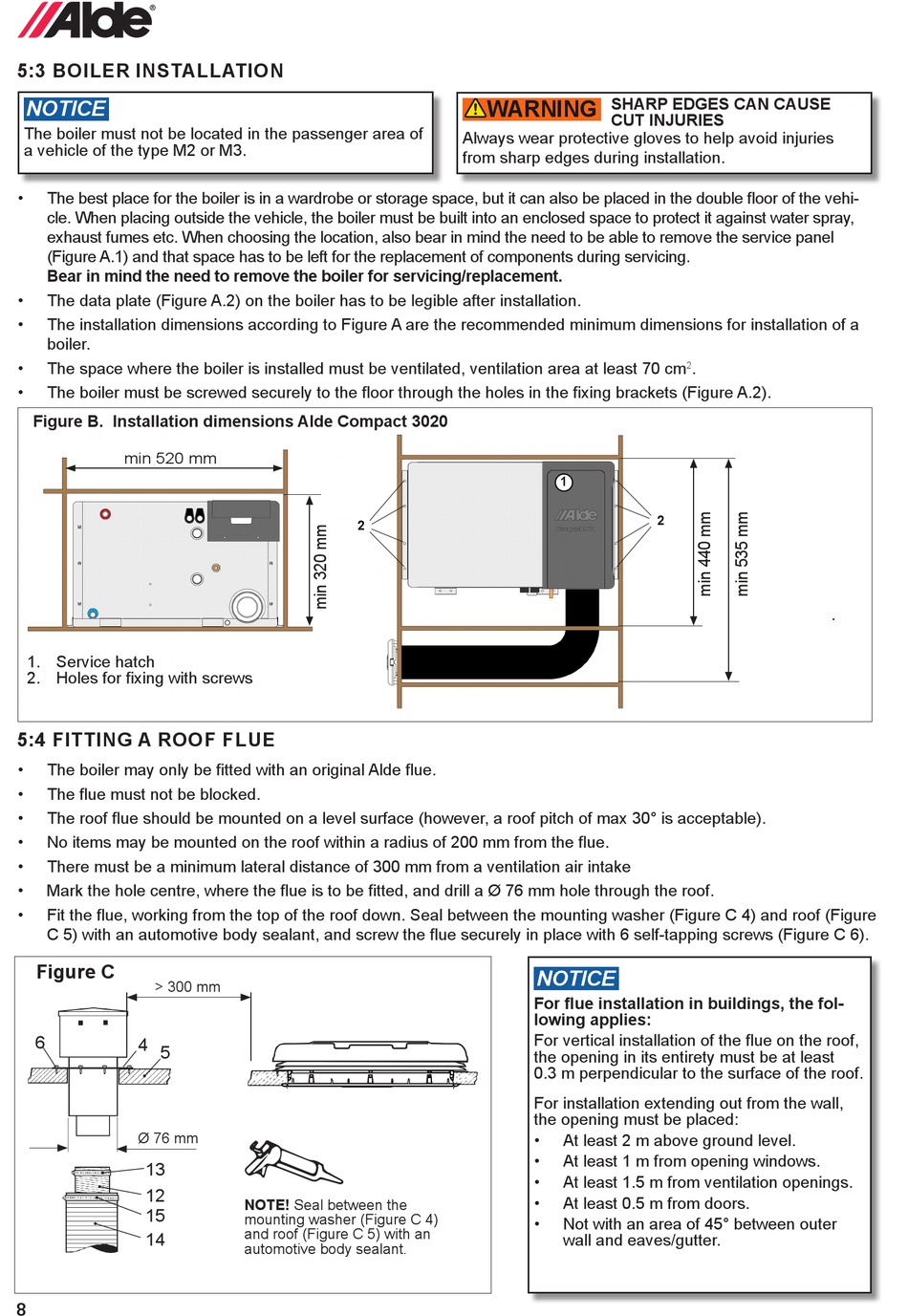

5:3 BOILER INSTALLATION

NOTICE
The boiler must not be located in the passenger area of
a vehicle of the type M2 or M3.
• The best place for the boiler is in a wardrobe or storage space, but it can also be placed in the double floor of the vehi-
cle. When placing outside the vehicle, the boiler must be built into an enclosed space to protect it against water spray,
exhaust fumes etc. When choosing the location, also bear in mind the need to be able to remove the service panel
(Figure A.1) and that space has to be left for the replacement of components during servicing.
Bear in mind the need to remove the boiler for servicing/replacement.
• The data plate (Figure A.2) on the boiler has to be legible after installation.
• The installation dimensions according to Figure A are the recommended minimum dimensions for installation of a
boiler.
• The space where the boiler is installed must be ventilated, ventilation area at least 70 cm
• The boiler must be screwed securely to the floor through the holes in the fixing brackets (Figure A.2).
Figure B. Installation dimensions Alde Compact 3020
min 520 mm
1. Service hatch
2. Holes for fixing with screws

5:4 FITTING A ROOF FLUE

• The boiler may only be fitted with an original Alde flue.
• The flue must not be blocked.
• The roof flue should be mounted on a level surface (however, a roof pitch of max 30° is acceptable).
• No items may be mounted on the roof within a radius of 200 mm from the flue.
• There must be a minimum lateral distance of 300 mm from a ventilation air intake
• Mark the hole centre, where the flue is to be fitted, and drill a Ø 76 mm hole through the roof.
• Fit the flue, working from the top of the roof down. Seal between the mounting washer (Figure C 4) and roof (Figure
C 5) with an automotive body sealant, and screw the flue securely in place with 6 self-tapping screws (Figure C 6).
Figure C
> 300 mm
6
4 5
Ø 76 mm
13
12
15
14
8
2
NOTE! Seal between the
mounting washer (Figure C 4)
and roof (Figure C 5) with an
automotive body sealant.
WARNING SHARP EDGES CAN CAUSE
CUT INJURIES
VARNING
Always wear protective gloves to help avoid injuries
from sharp edges during installation.
AVERTISSEMENT
WARNUNG
ADVARSEL
VAROITUS
ADVERTENCIA
AVVERTENZA
WAARSCHUWING
1
NOTICE
For flue installation in buildings, the fol-
lowing applies:
For vertical installation of the flue on the roof,
the opening in its entirety must be at least
0.3 m perpendicular to the surface of the roof.
For installation extending out from the wall,
the opening must be placed:
• At least 2 m above ground level.
• At least 1 m from opening windows.
• At least 1.5 m from ventilation openings.
• At least 0.5 m from doors.
• Not with an area of 45° between outer
wall and eaves/gutter.
.
2
