4. TECHNICAL DATA TECHNICAL DATA
• MEASUREMENTS / WEIGHT
Boiler height:
Boiler depth:
Boiler width:
Weight:
Gas:
Output 1:
- Consumption:
Output 2:
- Consumption:
Pressure:
• VOLUME/PRESSURE/TEMP
Volume of liquid, radiator water:
Volume of liquid, domestic hot water:
Max pressure radiator water:
Max pressure domestic hot water:
System temperature (max):
230–240 V ~
Output element:
(2 or 3 kW)
12 V DC
Current consumption:
Fuse:
CAUTION
When this heating system is in operation;
OBSERVERA
Always be aware of hot surfaces highlighted in
ATTENTION
orange coloure, see Figure A.
VOORZICHTIG

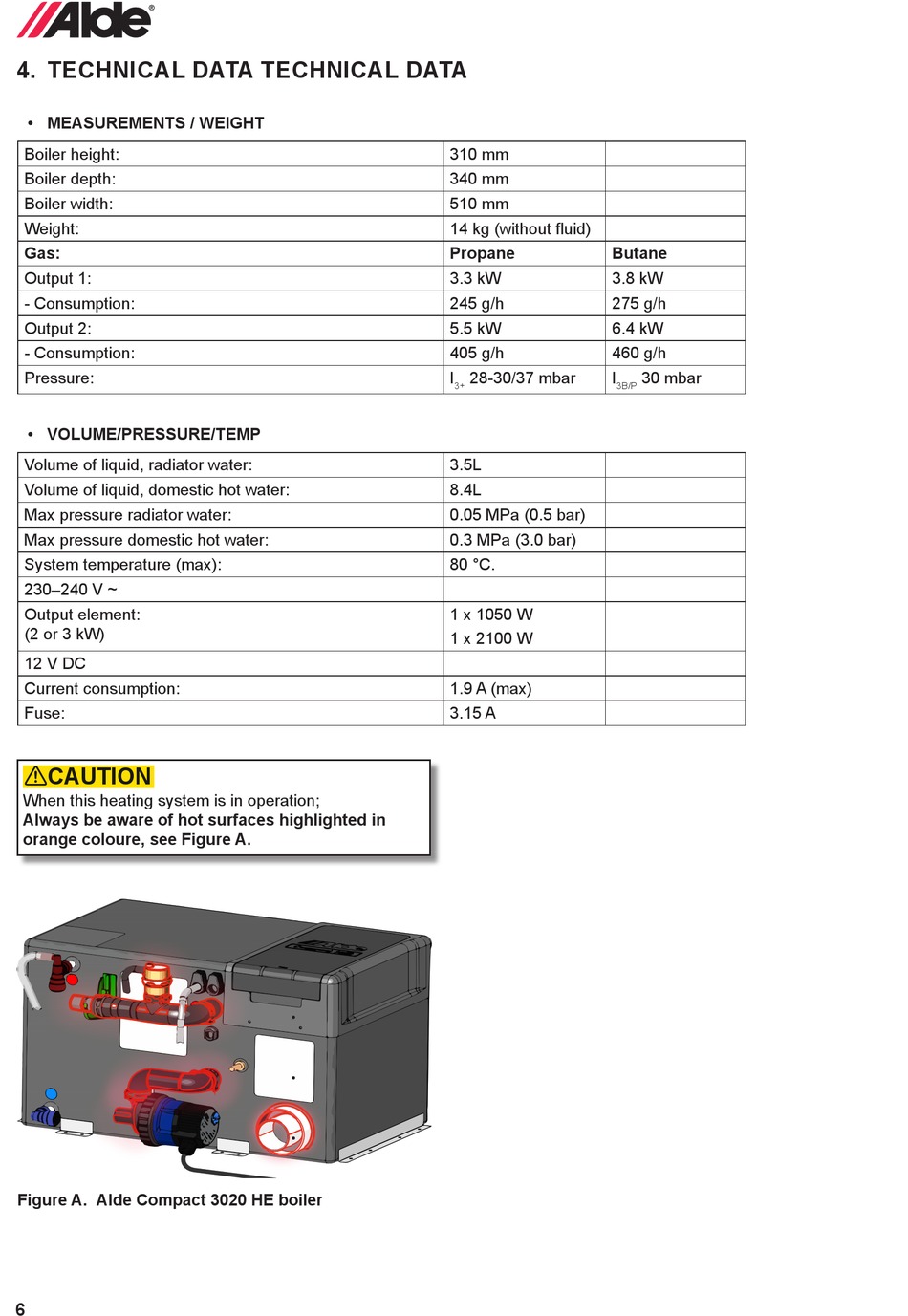

Figure A. Alde Compact 3020 HE boiler
6
310 mm
340 mm
510 mm
14 kg (without fluid)
Propane Butane
3.3 kW 3.8 kW
245 g/h 275 g/h
5.5 kW 6.4 kW
405 g/h 460 g/h
I 28-30/37 mbar I
3+ 3B/P
3.5L
8.4L
0.05 MPa (0.5 bar)
0.3 MPa (3.0 bar)
80 °C.
1 x 1050 W
1 x 2100 W
1.9 A (max)
3.15 A
30 mbar
