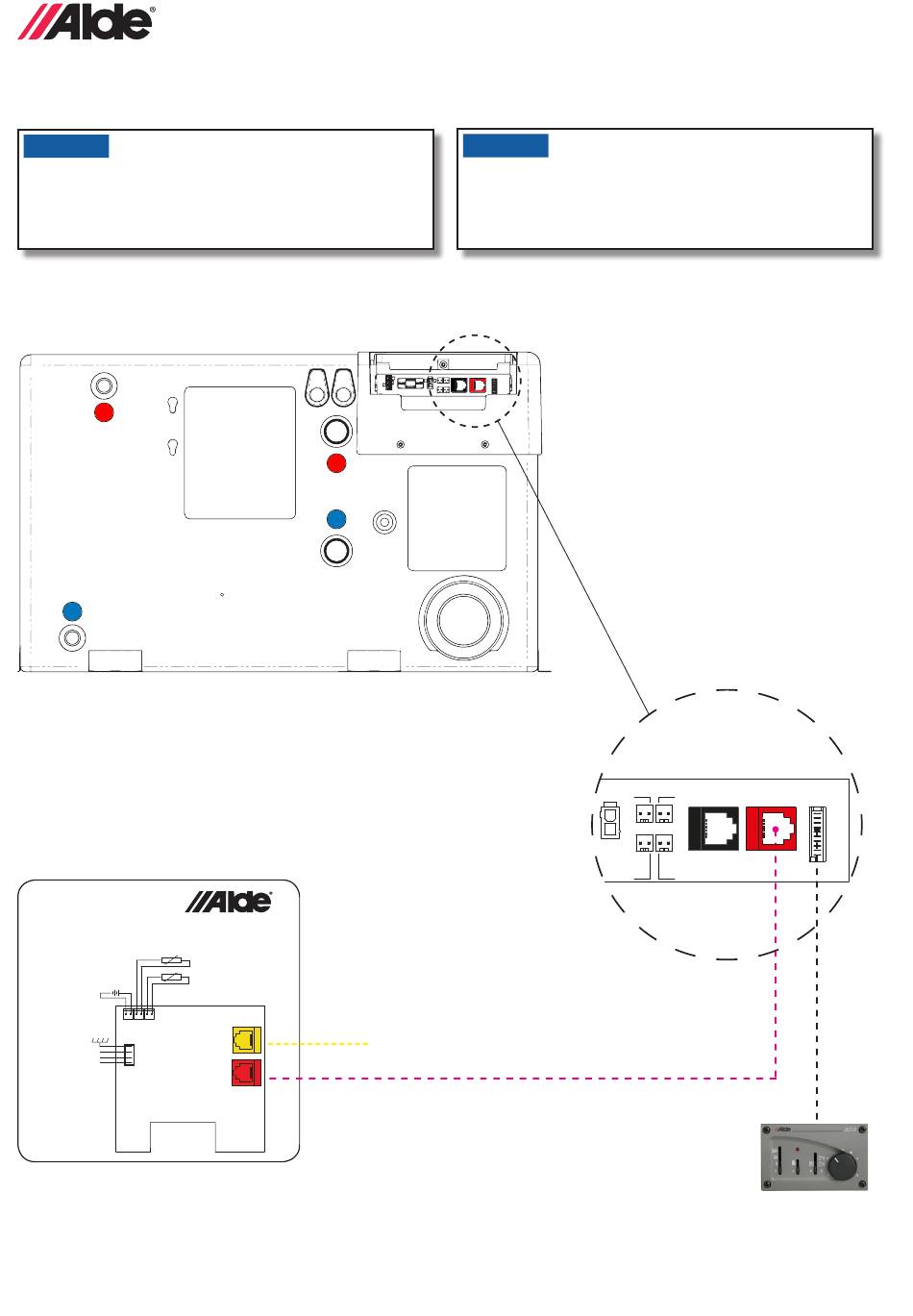

8:1 CABLE CONNECTION COMPACT 3020 HE AND CONTROL PANEL
•
Connect the boiler and control panel as shown in the diagram below.
NOTICE
Do not clamp or bind 12V cables or sensor cables
together with 230V cables. The cables should prefer-
ably not be placed close to each other. If the cables are
bundled, the risk of malfunction increases.
Control panel rear
Remote Sensor 2
Remote Sensor 1
+
Battery Back-up (3V DC)
External panel
18
3020
Bed
Sofa
CI Bus
Heater
NOTICE
To protect against malfunction only use original Alde
cables
shielded cable for EMC.
,
Fuse 3,15 A
12 V DC
CI Bus connection
Circuit board on
Compact 3020 HE boiler
Load
Outdoor
monitor
sensor
Tin bus
Control panel
E
F
D
I
12 V
pump
External
Window
start
sensor
Mechanical panel 3010 214
Option board/
Mechanical panel
