Promeba PB-420 Series User Manual

Stretcher support
Hide thumbs Also See for PB-420 Series:

Advertisement

Quick Links

Download this manual
USER GUIDE
STRETCHER SUPPORT // PB-420 SERIES
Review 01/15

Advertisement

loading

Related Manuals for Promeba PB-420 Series

Summary of Contents for Promeba PB-420 Series

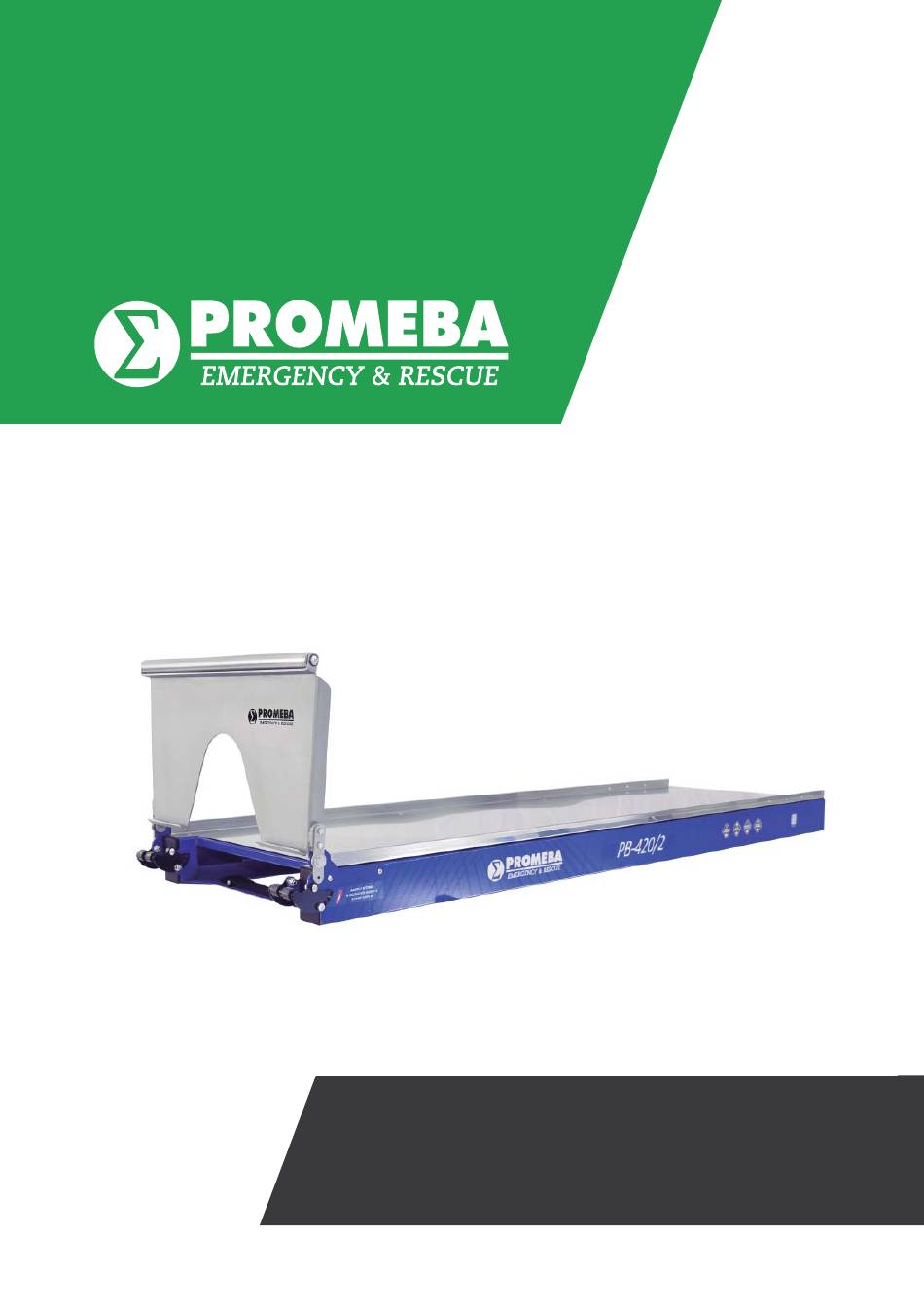

  • Page 1 USER GUIDE STRETCHER SUPPORT // PB-420 SERIES Review 01/15...
  • Page 3 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INDICE INTRODUCTION 01.1 Using this manual 01.2 Technical data sheet INSTALLATION 02.1 Transport and unpacking 02.2 Anchorage points OPERATION 03.1 Commands 03.2 Elements of the manual system 03.3 Loading and unloading operation 03.4...

  • Page 5: Using This Manual

    USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fi xing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse.
  • Page 6 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PB-420 LENGHT 2090 mm SIDE MOVEMENT 300 mm WIDTH 600 mm MAX. LOAD 220 Kg HEIGHT 170 mm WEIGHT 45 Kg 2090...
  • Page 7 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INTRODUCTION MEASURES AND FEATURES // PB-420/1 LENGHT 2010 mm SIDE MOVEMENT 300 mm WIDTH 600 mm MAX. LOAD 220 Kg HEIGHT 70 mm WEIGHT 40 Kg 2010...
  • Page 8 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INTRODUCTION MEASURES AND FEATURES // PB-420/2 LENGHT 2025 mm WEIGHT 42 Kg WIDTH 600 mm MAX. LOAD 280 Kg HEIGHT 100 mm 2025...
  • Page 9 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INTRODUCTION MEASURES AND FEATURES // PB-420/3 LENGHT 2010 mm WEIGHT 35 Kg WIDTH 600 mm MAX. LOAD 280 Kg HEIGHT 55 mm 2010...
  • Page 10 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INTRODUCTION MEASURES AND FEATURES // PB-420/4 LENGHT 2020 mm WEIGHT 45 Kg WIDTH 600 mm MAX. LOAD 220 Kg HEIGHT 200 mm 2020...

  • Page 11: Installation

    USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INSTALLATION 02.1 Transport and unpacking First carefully remove the packaging to prevent the da- mage of the outside of the stretcher support. 1. Transport with a crane (high load) · Thread tapes through the upper platform for its trans- port (as shown in graphs) ·...
  • Page 12 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INSTALLATION 02.2 Anchore points Before putting the bench into operation, ensure that each and every anchorage points are placed and clasped. ANCHORAGE FOR STRETCHER SUPPORT PB420 (8 anchorage points) 12,5 1274...
  • Page 13 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 INSTALLATION ANCHORAGE FOR STRETCHER SUPPORT PB420/2 (10 anchorage points) ANCHORAGE FOR STRETCHER SUPPORT PB420/3 (10 anchorage points) ANCHORAGE FOR STRETCHER SUPPORT PB420/4 (10 anchorage points)

  • Page 15: Operation

    USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.1 Commands PB-420 Stainless steel ramp Lodging for scoop stretcher Ramp gradient regulator Lateral shift base Lateral shift operation lever...
  • Page 16 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.1 Commands PB-420/1 Stainless steel ramp Lateral shift base Lateral shift operation lever...
  • Page 17 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.1 Commands PB-420/2 Stainless steel ramp Lodging for scoop stretcher Ramp gradient regulator...
  • Page 18 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.1 Commands PB-420/3 Stainless steel ramp...
  • Page 19 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.1 Commands PB-420/4 Stainless steel ramp Lodging for scoop stretcher Lodging for spine board Ramp gradient regulator...
  • Page 21 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.2 Manual system elements LATERAL SHIFT Operate the lever located on the rail right rear side, exerting a little eff ort on it with the foot accompanying this move- ment with its slide with the hands.
  • Page 23 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.3 Loading and unloading LOADING · Rail position in active service inside the ambulance (A) · Open the loading ramp (B) · Load the stretcher being specially cautious not to hit with the sides of the ramp.
  • Page 24 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.4 Scoop stretcher fastening • • FOR MODELS PB-420 PB-420/2 PB-420/4 FIXING To place PC 335 and PC 337 scoop stretchers, slide the scoop stretcher face down, between the stretcher anchor sheet and the tray until it butts with clamp grippers.
  • Page 25 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 OPERATION 03.6 Tensors • FOR MODELS PB-420 PB-420/1 To adjust the drive cables tension, the rail has two sets of tensors for its regulation (depending on model): 1. LATERAL SHIFT LEVER Double set of tensors located on each of the attachment plates on the fl oor.
  • Page 27 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.1 Main exploded views PB420 SERIES PB-420 GENERAL ASSEMBLY SEE DETAILS ON PAGE 28 PB-420/1 GENERAL ASSEMBLY SEE DETAILS ON PAGE 30 · PB-455 PB-420/2 CONJUNTO GENERAL SEE DETAILS ON PAGE 32...
  • Page 28 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.2 PB-420 Main exploded view 1.30 1.06 1.11 1.04 1.29 1.01 1.10 1.34 1.31 1.07 1.09 1.19 1.13 1.08 1.15 1.26 1.33 1.23 1.24 1.17 1.25 1.14 1.20 1.03...
  • Page 29 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.3 Bill of materials: GENERAL ASSEMBLY PB-420 ELEMENT CODE - DESCRIPTION UNITS 1.01 PB4200-02012 - SUBCONJUNTO SUPLEMENTO 1.02 PB4200-01012 - SUBCONJUNTO PLATAFORMA 1.03 PB4200-03230 - CASQUILLO GIRO RAMPA 1.04...
  • Page 30 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.4 PB-420/1 Main exploded view 2.03 2.08 2.23 2.21 2.20 2.22 2.24 2.16 2.13 2.14 2.15 2.10 2.01 2.07 2.17 2.18 2.05 2.12 2.11 2.09 2.06 2.19 2.04...
  • Page 31 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.5 Bill of materials: GENERAL ASSEMBLY PB-420/1 ELEMENT CODE - DESCRIPTION UNITS 2.01 PB4200-01012 - SUBCONJUNTO PLATAFORMA 2.02 PB4200-03072 - SUBCONJUNTO RAMPA LARGA 2.03 PB4200-03010 - SAFATA INOXIDABLE RAIL 2.04...
  • Page 32 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.6 PB-420/2 Main exploded view 3.17 3.05 3.08 3.03 3.16 3.01 3.07 3.15 3.10 3.06 3.19 3.13 3.11 3.02 3.09 3.12 3.04 3.14 3.18...
  • Page 33 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.7 Bill of materials: GENERAL ASSEMBLY PB-420/2 ELEMENT CODE - DESCRIPTION UNITS 3.01 PB4200-02012 - SUBCONJUNTO SUPLEMENTO 3.02 PB4200-03230 - CASQUILLO GIRO RAMPA 3.03 PB4200-03010 - SAFATA INOXIDABLE RAIL 3.04...
  • Page 34 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.8 PB-420/3 Main exploded view 4.08 4.03 4.10 4.07 4.01 4.05 4.09 4.06 4.11 4.04 4.02...
  • Page 35 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.9 Bill of materials: GENERAL ASSEMBLY PB-420/3 ELEMENT CODE - DESCRIPTION UNITS 4.01 PB4200-04012 - SUBCONJUNTO PLATAFORMA BASICA 4.02 PB4200-03072 - SUBCONJUNTO RAMPA LARGA 4.03 PB4200-03010 - SAFATA INOXIDABLE RAIL 4.04...
  • Page 36 USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.10 PB-420/4 Main exploded view 5.17 5.05 5.08 5.03 5.16 5.01 5.07 5.17 5.15 5.10 5.06 5.19 5.13 5.16 5.11 5.02 5.09 5.07 5.12 5.04 5.06 5.14 5.18 5.01...

  • Page 37: Bill Of Materials

    USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 MOUNTING AND COMPONENTS 04.11 Bill of materials: GENERAL ASSEMBLY PB-420/4 ELEMENT CODE - DESCRIPTION UNITS 5.01 PB4200-02012 - SUBCONJUNTO SUPLEMENTO 5.02 PB4200-03230 - CASQUILLO GIRO RAMPA 5.03 PB4200-03010 - SAFATA INOXIDABLE RAIL 5.04...

  • Page 38: General Maintenance

    USER GUIDE // STRETCHER SUPPORT PB-420 SERIES Review 01/15 GENERAL MAINTENANCE CLEANING WEAR AREAS It is essential to keep the equipment clean to ensure a Inspecting regularly on the system compo-nents for proper use and durability of the set. A thorough clean...

  • Page 39: Legal Notices

    Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make, if considered appropiate, any modifi cation or improvement to the products described in this publication.

  • Page 40: Product Warranty

    Promeba, S.L. is not liable for loss or damages to pro- C. Damages or defects resulting from the use, operation ducts, this warranty or others, including economic loss or improper treatment of the product and not caused by or not assessable damage;...
  • Page 42 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN ER-0687/1998 T.
