USER GUIDE

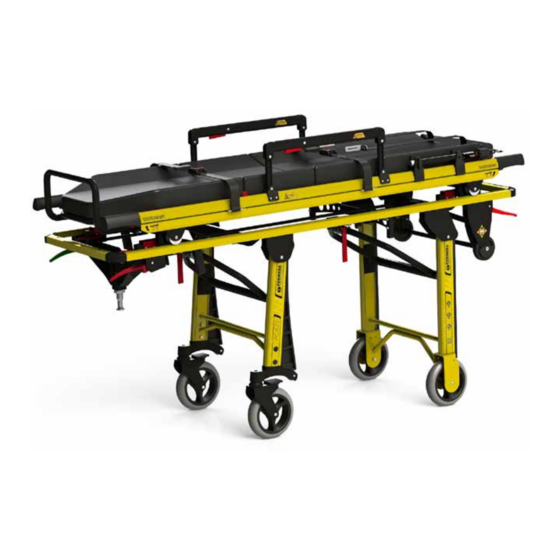

STRETCHER // PC-675
Review 11/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the PC-675 and is the answer not in the manual?

Questions and answers

Summary of Contents for Promeba PC-675

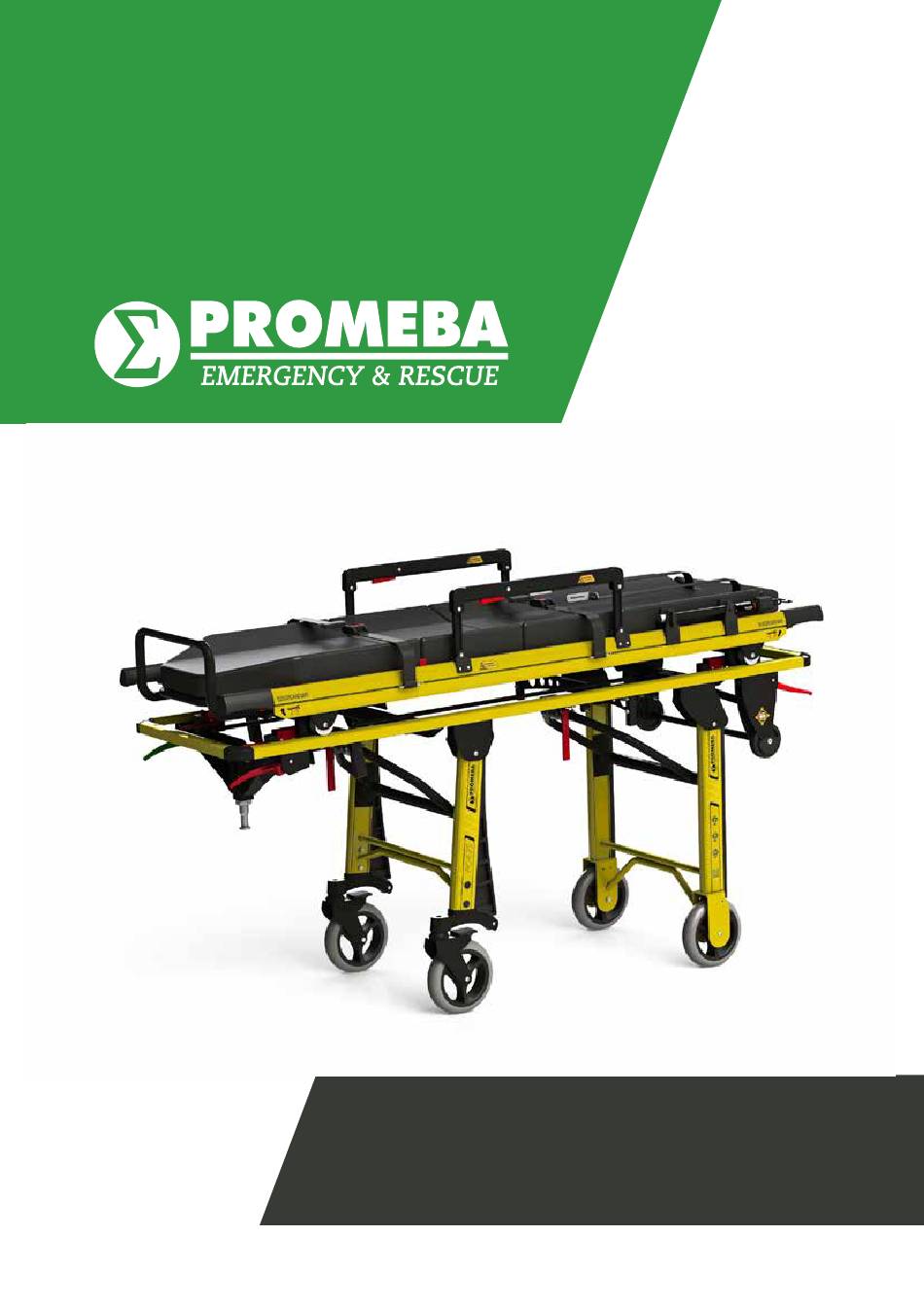

  • Page 1 USER GUIDE STRETCHER // PC-675 Review 11/18...
  • Page 3 Backrest set PC-675 04.4 Telescopic hand grips PC-675 04.5 Folding handrails set PC-675 04.6 Folding pole set PC-675 04.7 Inverted rotating leg set PC-675 04.8 Fixed leg set PC-675 04.9 Equipment table set GENERAL MAINTENANCE LEGAL NOTICES PRODUCT WARRANTY MODEL PC-675...
  • Page 5 USER MANUAL // STRETCHER PC-675 Review 11/18 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse.
  • Page 7 USER MANUAL // STRETCHER PC-675 Review 11/18 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PC-678 LENGHT 1920 mm STRETCHER WEIGHT 25 Kg WIDTH 580 mm MAX. LOAD 250 Kg HEIGHT 450/985 mm STRUCTURE WEIGHT 42 Kg 1920...
  • Page 9 USER MANUAL // STRETCHER PC-675 Review 11/18 INSTALATION 02.1 Transporting and unpacking First remove the packaging carefully to prevent dama- ge to the exterior of the stretcher. 1. Transporting · Always fix the load, if piling up is necessary always follow the scheme shown.
  • Page 11 USER MANUAL // STRETCHER PC-675 Review 11/18 OPERATING 03.1 Elements PC-675 Folding handrails Belts with front push-button Grip rings to lift the legs in trendelemburg position Rear leg operating lever Third anchor point Front leg operating lever Rear rotating leg brake...
  • Page 12 USER MANUAL // STRETCHER PC-675 Review 11/18 OPERATING 03.1 Elements PC-675...
  • Page 13 USER MANUAL // STRETCHER PC-675 Review 11/18 OPERATING 03.2 Comands PC-675 01. REAR LEGS UNLOCKING LEVER Green, located on the stretcher’s left side. The legs of the rear side will unlock by operating the lever in order to place the stretcher in loading and unloading position.
  • Page 14 USER MANUAL // STRETCHER PC-675 Review 11/18 OPERATING 03.3 Loading and unloading operation LOADING · Open the loading ramp of the bench/rail (A) · Place the stretcher head-on in relation to the loading axle of the bench (A) · Approach the stretcher until the front wheels have contact with the loading ramp (B) ·...
  • Page 15 USER MANUAL // STRETCHER PC-675 Review 11/18 OPERATING 03.4 Fixation of the stretcher To separate the trolley from the car, press the trigger located on the left side of the car and pull the stretcher. Once released from its hooks, it can be separated from the car.
  • Page 17 USER MANUAL // STRETCHER PC-675 Review 11/18 OPERATING 03.5 Tensors To adjust the tension of the drive cables, the stretcher has three sets of tensioners for adjunstment: 1. HANDLE UNLOCKING BACK LEGS 2. HANDLE UNLOCKING FRONT LEGS 3. INTERMEDIATE STOP SHAFT...
  • Page 19 Folding pole set PC-675 Pág. 32 Folding handrails set PC-675 Pág. 30 Set structure PC-675 Telescopic hand grips PC-675 Pág. 20 Pág. 28 Fixed leg set PC-675 Pág. 36 Inverted rotating leg set PC-675 Pág. 34 Equipment table set Pág. 38...
  • Page 20 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.2 Set structure PC-675...
  • Page 21 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.2 Bill of materials SET STRUCTURE PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 1.01 PC6700-02022 - PERFIL CARRO ESQUERRA 1.02 PC6172-01000 - COnjUnt POtA gIRAtORIA EStAndAR 1.03 PC6500-03812 - tOPE POtA POStERIOR 1.04...
  • Page 22 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.2 Bill of materials SET STRUCTURE PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 1.37 PC6500-03060 - COIxInEt gIR PAtI 1.38 PC6500-03050 - bRIdA PAtí 1.39 Pb4010-00060 - tERmInAL FUndA CAbLES t01-05 1.40...
  • Page 23 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.2 Bill of materials SET STRUCTURE PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 1.72 31201052 ARAndELA d-125 m5 nYLOn 1.73 31305051 tUERCA d-985 m-5 CInC 1.74 314030412 REmACHE InOx Ø4x12...
  • Page 24 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.3 Backrest set PC-675...
  • Page 25 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.3 Bill of materials BACKREST SET PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 2.01 PC6500-03182 - PERFIL SUPERIOR 2.02 PC6500-06000 - COnjUnt LLItERA PC-650 2.03 PC6750-01112 - SUbCOnjUnt tRAvESSER RESPAtLLER PC675 2.04...
  • Page 27 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.3 Bill of materials BACKREST SET PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 2.35 3111306401 - tORnILLO ISO7380 m6x40 CInC 2.36 31305061 - tUERCA d-985 m-6 CInC 2.37 3111306351 - tORnILLO ISO7380 m6x35 CInC 2.38...
  • Page 28 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.4 Telescopic hand grips PC-675...
  • Page 29 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.4 Bill of materials TELESCOPIC HAND GRIPS PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 3.01 PC6500-03310 - PERFIL mAnEtES ExtEnSIbLES 3.02 PC6500-03320 - mAnEtA 3.03 PC6500-03340 - PALAnCA bLOQUEjAdORA 3.04 PC6500-03470 - CASQUELL mAnEtES ExtEnSIbLES 3.05...
  • Page 30 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.5 Folding handrails set PC-675...
  • Page 31 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.5 Bill of materials FOLDING HANDRAILS SET PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 4.01 PC6501-04040 - SUPORt ACCIOnAmEnt 4.02 CASQUELL SEPARAdOR L30 4.03 PC6501-04060 - SUPORt bARAnA 4.04 PC6501-04112 - tUb OvAL bARAnEtA 4.05...
  • Page 32 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.6 Folding pole set PC-675...
  • Page 33 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.6 Bill of materials FOLDING POLE SET PC-675 NUM. ELEMENT CODE - DESCRIPTION UNITS 5.01 PC6170-03480 - PORtASUERO UnIvERSAL POLE Iv S03 5.02 PC6170-03500 - SUPORt bARAnA PORtASUEROS UnIvERSAL 5.03 PC6170-03490 - CASQUELL gIRO PORtASUEROS 5.04...
  • Page 34 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.7 Inverted rotating leg set PC-675...
  • Page 35 6.14 PC6501-01080 - PAtI ROdA dAvAntER ALt 6.15 3110212501 - tORnILLO d-912 m-12x50 CInCAdO 6.16 PS2500-07000 - COnjUnt ROdA PROmEbA PERFORmAnCE 200x45mm 6.17 tAP-PLAStØ22 - tAPOn PLAStICO FInAL Ø22 - mOd. 17-22 6.18 3069 - RUEdA Ø50mm REF. ARSA - 3069 6.19...
  • Page 36 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.8 Fixed leg set PC-675 PC6500-01400...
  • Page 37 PC6170-02110 - bURLEtE ALt 7.08 31305081 - tUERCA d-985 m-8 CInC 7.09 PC6170-02152 - mOLLA FRE PER ROdA dE 45mm 7.10 3110905301 - tORnILLO d-7981 4.8x30 CInCAdO 7.11 PS2500-07000 - COnjUnt ROdA PROmEbA PERFORmAnCE 200x45mm 7.12 PC6500-03060 - COIxInEt gIR PAtI...
  • Page 38 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.9 Equipment table set...
  • Page 39 USER MANUAL // STRETCHER PC-675 Review 11/18 MOUNTING AND COMPONENTS 04.9 Bill of materials EqUIPMENT TABLE SET NUM. ELEMENT CODE - DESCRIPTION 8.01 PC6100-01020 - ROdA Ø200*50 8.02 PC2100-02062 - SOPORt gIRAtORI 8.03 PC6501-01012 - SOPORt ROdA gIRAtORIA 8.04 PC6500-01041 - POtA gIRAtORIA ESQUERRA 8.05...
  • Page 40 USER MANUAL // STRETCHER PC-675 Review 11/18 GENERAL MAINTENANCE CLEANING WEAR AREAS It is essential to keep the equipment clean to ensure a Inspecting regularly on the system compo-nents for proper use and durability of the set. A thorough clean...
  • Page 41 Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make, if considered appropiate, any modification or improvement to the products described in this publication.
  • Page 42 Promeba, S.L. is not liable for loss or damages to pro- C. Damages or defects resulting from the use, operation ducts, this warranty or others, including economic loss or improper treatment of the product and not caused by or not assessable damage;...
  • Page 44 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN ER-0687/1998 T.
