Summary of Contents for Promeba PS-171
- Page 1 USER GUIDE CHAIR PS-171 Review 01/19...
- Page 3 General elements of evacuation chair PS-171 03.2 Folded the chair 03.3 Unfolded the chair MOUNTING AND COMPONENTS 04.1 General view CHAIR PS-171 04.2 Bill of materials of gerenal view PS-171 GENERAL MAINTENANCE LEGAL NOTICES PRODUCT WARRANTY MODEL PS-171 EVACUATION CHAIR...
-
Page 5: Using This Manual
USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse. - Page 6 USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // FOLDED MEASURES AND FEATURES // UNFOLDED LENGHT 600 mm LENGHT 890 mm WIDTH 500 mm WIDTH 500 mm HEIGHT 910 mm HEIGHT 280 mm...
-
Page 7: Transport And Unpacking

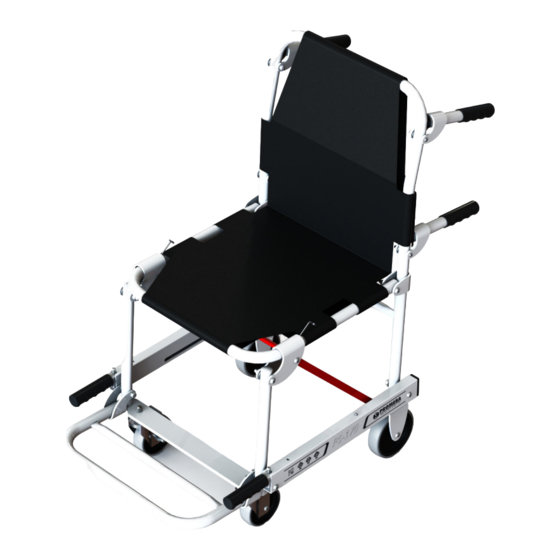

USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 INSTALATION 02.1 Transport and unpacking First remove the packaging carefully so as not to dama- ge the outside of the stretcher. 1. Transport · Always fix the load, if it is necessary stack. you should follow the diagram shown. - Page 8 USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 OPERATING 03.1 General elements of CHAIR PS-171 Backrest Transport handles Footrest Belts...
- Page 9 USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 OPERATING 03.2 Folding of the chair 03.3 Unfolding the chair Fold the rear levers Pull the backrest upwards with one hand and separate it from the seat frame Slide the red link along the seams...
- Page 10 USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 MOUNTING AND COMPONENTS 04.1 General view PS-171...
- Page 11 USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 MOUNTING AND COMPONENTS 04.2 Bill of materials GENERAL VIEW PS-171 NUM. ELEMENT CODE - DESCRIPTION UNITS 1.01 PS1700-01002 - CONJUNT RESPATLLER 1.02 PS1700-02002 - CONJUNT BASE 1.03 PS1700-03002 - CONJUNT POTES DAVANTERES 1.04...
-
Page 13: General Maintenance
USER MANUAL // EVACUATION CHAIR PS-171 Review 01/19 GENERAL MAINTENANCE CLEANING WEARING AREAS Keeping the equipment clean is essential to ensure Inspecting regularly to see if there is wear on the sys- good use and durability of the assembly. It is necessary... -
Page 14: Legal Notices
Periodic changes are made to the information contai- ned herein; These changes will be incorporated in new editions of the publication. Promeba, S.L. Reserves the right to make any changes or improvements to the products described in this pu- blication, if deemed appropriate. -
Page 15: Product Warranty
The only obligation on the part of Promeba, S.L. in b) Periodic maintenance and repair or replacement of connection with this warranty is to repair or replace... - Page 16 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN T.
