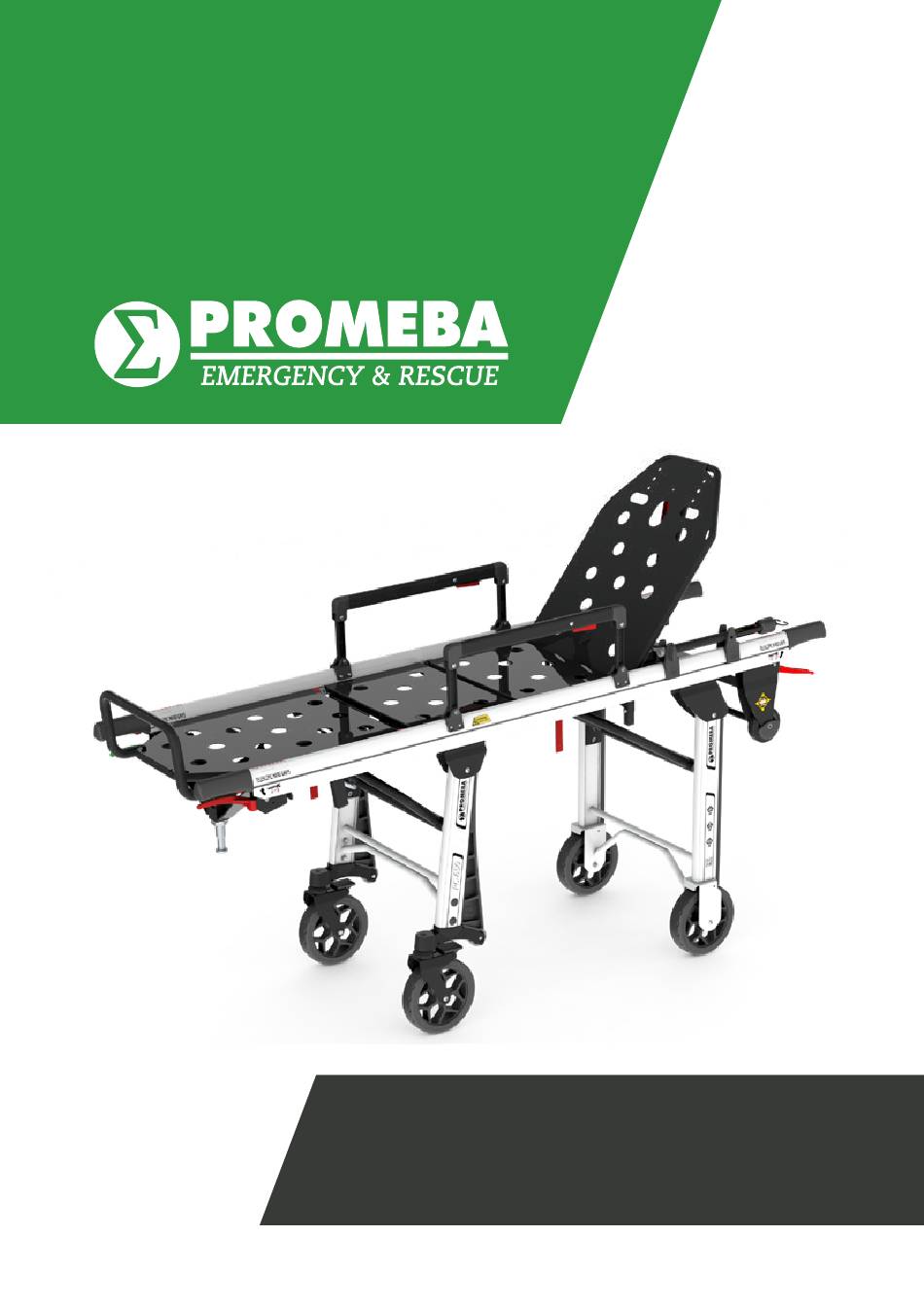

USER GUIDE

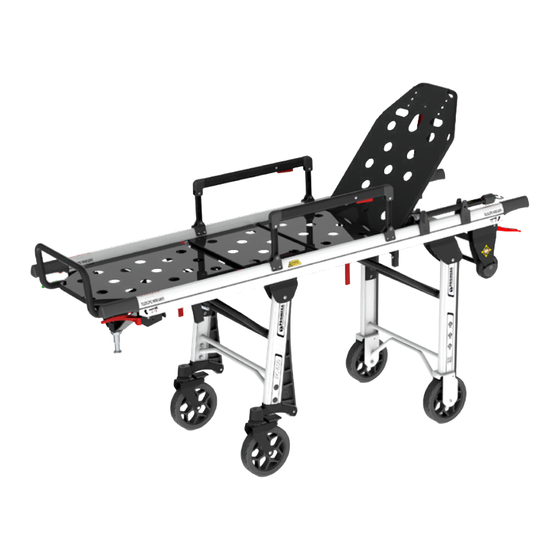

STRETCHER // PC-650
Revisión 02/20

Advertisement

loading
Need help?

Need help?

Do you have a question about the STRETCHER and is the answer not in the manual?

Questions and answers

Related Manuals for Promeba STRETCHER

Summary of Contents for Promeba STRETCHER

  • Page 1 USER GUIDE STRETCHER // PC-650 Revisión 02/20...
  • Page 3 03.1 Elements 03.2 Commands 03.3 Loading and unloading operation 03.4 Tensors MOUNTING AND COMPONENTS 04.1 General view STRETCHER PC-650 04.2 Set strucure PC-650 04.3 Telescopic Hand Grips PC-650 04.4 Backrest regulator set PC-650 04.5 Backrest set PC-650 04.6 Lateral shift handrail set PC-650 04.7...
  • Page 5 USER GUIDE // STRETCHER PC-650 Revisión 02/20 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse.
  • Page 6 USER GUIDE // STRETCHER PC-650 Revisión 02/20 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PC-650 - STANDARD LENGTH 1920 mm INTERMEDIATE STOP 680-740 mm WIDTH 580 mm FOLDED HEIGHT 330-300 mm HEIGHT 800-880 mm MAX. LOAD 250Kg WEIGHT...
  • Page 7 USER GUIDE // STRETCHER PC-650 Revisión 02/20 INTRODUCTION MEASURES AND FEATURES // PC-650 - INVERTED LENGTH 1920 mm INTERMEDIATE STOP 680-740 mm WIDTH 580 mm FOLDED HEIGHT 330-300 mm HEIGHT 800-880 mm MAX. LOAD 250 Kg WEIGHT 50 Kg 1920...
  • Page 9 · Place the box on a fl at, stable surface and open the seal being careful not to damage the inside. · Remove the stretcher from the inside of the load as UNPACKING UNIT RESPECT THE TRANSPORTING POSITION OF THE PACKAGE shown in the scheme below.
  • Page 10 Front leg operating lever Third anchor point Rear wheels brake Front revolving legs Skate for a smoother load. Stretcher’s guide protective disks Front leg holding position operating lever Telescopic hand grips Universal pole IV Backrest with adjustable inclination in 6 positions.
  • Page 11 USER GUIDE // STRETCHER PC-650 Revisión 02/20 OPERATING 03.1 Elements PC-650...
  • Page 12 USER GUIDE // STRETCHER PC-650 Revisión 02/20 OPERATING 03.1 Elements PC-650...

  • Page 13: Operation

    03. HOLDING POSITION LEVER Red, located on the front side of the stretcher. It allows a se- cond position which facilities the loading of the patient.
  • Page 14 LOADING · Open the loading ramp of the bench/rail (A) · Place the stretcher head-on in relation to the loading axle of the bench (A) · Approach the stretcher until the front wheels have contact with the loading ramp (B) ·...
  • Page 15 STRETCHER PC-650 Revisión 02/20 OPERATION 03.4 Tensors To adjust the tension in the drive cables, the stretcher has three sets of tensors for its regulation: 1. REAR UNLOCKING LEVER 2. FRONT LEGS UNLOCKING LEVER 3. HOLDING POSITION LEVER To regulate the tensioners, you have a clamping flange where you can replace the tensioning cable (if it breaks) or regulate its tension.
  • Page 17 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.1 General view STRETCHER PC-650 LATERAL SHIFT HANDRAIL SET PAGE 28 BUNK BED SET PC-650 PAGE 26 UNIVERSAL POLE IV PAGE 30 BACKREST REGULATION SET PAGE 24 TELESCOPIC HAND GRIPS...
  • Page 18 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.1 Bill of materials: GENERAL VIEW PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS PC6500-03182 - perfil superior PC6500-06000 - CONJUNT LLITERA PC-650 PC6170-03092 - Subconjunt travesser davanter PC6500-03010 - Conjunt guia PC650...
  • Page 19 CD-RUEDA-100 - roda 100x24 1.42 PC6500-06220 - biela regulació reposapeus 1.43 PC6500-03931 - Molla maneta 1.44 COMP00867 - Casquell rodes 12x30 1.78 PA6320-00000 - Conjunt matalas termosoldat Promeba 1.79 PC6500-04090 - Conjunt cinturons 10G Arnes superior 1.80 PC6500-04110 - Conjunt cinturons 10G Peus...
  • Page 20 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.2 Guide set PC-650...
  • Page 21 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.2 Bill of materials: GUIDE SET PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS PC6500-03011 - Subconjunt guia PC650 PC6500-03031 - eix guia PC6170-03291 - Brida subjecció balda PB4010-00040 - TENSOR UNIVERSAL...
  • Page 22 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.3 Telescopic Hand Grips PC-650...
  • Page 23 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.3 Bill of materials: TELESCOPIC HAND GRIPS PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS 3.01 PC6500-03310 - PERFIL MANETES EXTENSIBLES 3.02 PC6500-03320 - MANETA 3.03 PC6500-03340 - PALANCA BLOQUEJADORA 3.06...
  • Page 24 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.4 Backrest regulator set PC-650...
  • Page 25 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.4 Bill of materials: PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS 4.01 PC6500-06122 - GATELL RESPATLLER 4.02 PC6500-06112 - SUBCONJUNT TUB SOPORT GATELL RESPATLLER 4.08 PC6500-06101 - TUB REGULACIO RESPATLLER...
  • Page 26 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.5 Bunk bed set PC-650...
  • Page 27 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.5 Bill of materials: BUNK BED SET PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS PC6500-06082 - SUBCONJUNT TUB RESPATLLER PC6500-06062 - SUBCONJUNT TUB PEUS CURT PC6500-06322 - SUBCONJUNT XAPA MOVIL LLITERA...
  • Page 28 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.6 Lateral shift handrail set PC-650...
  • Page 29 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.6 Bill of materials: LATERAL SHIFT HANDRAIL SET PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS 6.01 PC6501-04040 - SUPORT ACCIONAMENT 6.03 PC6501-04060 - SUPORT BARANA 6.04 PC6501-04112 - TUB OVAL BARANETA 6.05...
  • Page 30 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.7 Universal pole IV PC-650...
  • Page 31 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.7 Bill of materials: UNIVERSAL POLE IV PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS 7.01 PC6170-03480 - PORTASUERO UNIVERSAL POLE IV S03 7.02 PC6170-03500 - SUPORT BARANA PORTASUEROS UNIVERSAL 7.04 472104301 - PALOMILLA ZN CON CASQUILLO ROSCADO M8 7.06...
  • Page 32 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.8 Standard fixed leg set PC-650...
  • Page 33 STANDARD FIXED LEG SET PC-650 ELEMENT NUM CODE - DESCRIPTION UNITS 8.01 PC6177-02012 - SUBCONJUNT POTA FIXE 8.02 PS2500-07000 - CONJUNT RODA PROMEBA PERFORMANCE 200x45mm 8.10 PC6170-02110 - PERFIL BURLETE 8.11 PC6177-02052 - TAPA EXTERIOR POTA DAVANTERA 8.13 PC6170-01062 - SUBCONJUNT TIRANT POTES EXTRA-LLARG 8.15...
  • Page 34 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.9 Standard revolving leg set PC-650...
  • Page 35 UNITS 9.01 PC6177-01012 - SUBCONJUNT ESTRUCTURA POTES GIRATÒRIES 9.02 PC6177-01052 - TAPA EXTERIOR POTA POSTERIOR 9.03 PS2500-07000 - CONJUNT RODA PROMEBA PERFORMANCE 200x45mm 9.04 PC6500-01012 - SOPORT RODA POSTERIOR 9.07 PC6500-01220B - PATI RODA POSTERIOR ALT 9.09 3069 - RUEDA DIAM.50mm REF. ARSA - 3069 9.24...
  • Page 36 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.10 Inverted fixed leg set PC-650...
  • Page 37 CODE - DESCRIPTION UNITS 10.02 PC6177-02012 - SUBCONJUNT POTA FIXE 10.04 PC6177-02052 - TAPA EXTERIOR POTA DAVANTERA 10.09 PS2500-07000 - CONJUNT RODA PROMEBA PERFORMANCE 200x45mm 10.13 PC6500-01302 - SUBCONJUNT TIRANT CURT 10.15 PC6500-01082 - SOPORT TIRANT 10.17 PC6500-01090 - TRAVESSER INCLINAT (SENSE TRACTAMENT) 10.18...
  • Page 38 USER GUIDE // STRETCHER PC-650 Revisión 02/20 MOUNTING AND COMPONENTS 04.11 Inverted revolving standard leg set PC-650...
  • Page 39 GIRATÒRIES 11.02 PC2100-02062 - SOPORTE GIRATORIO RUEDA CD-210-DP PINTADO 11.03 PC6501-01012 - SOPORT RODA GIRATORIA 11.04 PS2500-07000 - CONJUNT RODA PROMEBA PERFORMANCE 200x45mm 11.05 PC6500-01052 - TAPA EXTERIOR POTA POSTERIOR 11.09 PC6501-01080A - PATI RODA DAVANTER ALT 11.10 3069 - RUEDA DIAM.50mm REF. ARSA - 3069 11.24...

  • Page 40: General Maintenance

    USER GUIDE // STRETCHER PC-650 Revisión 02/20 GENERAL MAINTENANCE CLEANING WEAR AREAS It is essential to keep the equipment clean to ensure a Inspecting regularly on the system compo-nents for proper use and durability of the set. A thorough clean...

  • Page 41: Legal Notices

    Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make, if considered appropiate, any modification or improvement to the products described in this publication.

  • Page 42: Product Warranty

    Promeba, S.L. is not liable for loss or damages to pro- C. Damages or defects resulting from the use, operation ducts, this warranty or others, including economic loss or improper treatment of the product and not caused by or not assessable damage;...

  • Page 44: Registro De Formación

    USER GUIDE // STRETCHER PC-650 Revisión 02/20 REGISTRO DE FORMACIÓN LUGAR Y NOMBRE DEL OPERADOR NOMBRE DEL FORMADOR TIPO DE FORMACIÓN FECHA...

  • Page 45: Registro De Mantenimiento

    USER GUIDE // STRETCHER PC-650 Revisión 02/20 REGISTRO DE MANTENIMIENTO TIPO DE SERVICIO OPERACIONES DE PERSONA ENCARGADA FECHA (Mantenimiento / verificación MANTENIMIENTO DEL SERVICIO / extensión de la vida útil) REALIZADAS (Operador / Centro Autorizado / Fabricante)
  • Page 46 Todos los derechos reservados. Reservado el derecho ha modificaciones sin previo aviso. Promeba, S.L. no se considera responsabe de los daños causados por la falta o la inexactitud de la información aquí mencionada. All rights reserved. Variations can be done whitout notice.

This manual is also suitable for:

Pc-650
