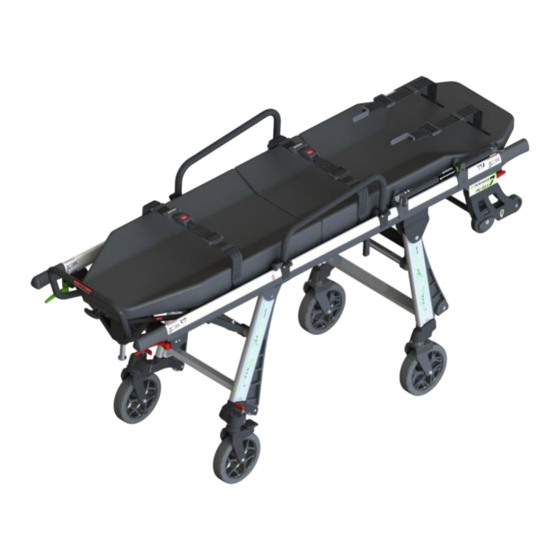

- Page 1 USER GUIDE STRETCHER SERIE PC-900/7 REV. 2025/01...
-
Page 2: Table Of Contents
USER GUIDE STRETCHER SERIE PC-900/7 00 TABLE OF CONTENTS REV. 2025/01 MODELS……………………….……………..……………... 01.1 Products………………….…………………………………... 01.2 Accessories…………...……………………………………... INTRODUCTIOÓN……..…………………………………... 02.1 Using this guide……………………………………………... 02.2 Legend of symbols……………..…………………………... 02.3 Service request……………………………………………... 02.4 Life span……………………………………………………... 02.5 Demolition………………….………………………………... 02.6 Reference standards………...……………………………... 02.7 Labelling……………………………………………………... INTENDED USE…………………..………………………… 03.1 Intended use…………………….……………………………... -
Page 3: Models
AMBULANCE STRETCHER PC-952 FOWLER 01.2. Accessories REFERENCE UDI CODE TRADE NAME 8437001519941 PA5351-00000 LOCKING SET 3 POINTS PA-5351 8437001519958 PA5352-00000 LOCKING SET 3 POINTS PA-5352 8437001519965 PA5500-00000 UNIVERSAL LOCKING SET PA-550 8437021314694 PA-750 FRAMEPROOF SEALED MATRESS PA-750 8437021314700 PA-632 SEALED PROMEBA MATRESS PA-632... - Page 4 USER GUIDE STRETCHER SERIE PC-900/7 01 MODELS REV. 2025/01 8437021314960 PC6100-05000B FOLDING INSTRUMENT TABLE 8437021314977 PA5250-00000 OXYGEN BOTTLE HOLDER 8436601870773 PA7600-00000A BARIATRIC KIT FOR SERIE PC-900 8436601870285 PA-235 TRANSFER TABLE - FOLDABLE...
-
Page 5: Introductioón
DEL BAGÉS S.L., Ctra. C-16 Km 59.5, 08650 Sallent (Barcelona)). Indicates the manufacturer’s reference number to identify the medical device. PROMEBA, S.L. uses this symbol to set each internal reference for each configuration and business variant Indicates the manufacturer’s serial number to identify a specific medical device. -
Page 6: Service Request
For information of the correct interpretation of the instruction manual, the use, maintenance, installation and restoration of the product, please contact Promeba customer service: T. 93 837 12 00, email: promeba@promeba.com or write to PROMEBA, S.L. - Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN. -
Page 7: Labelling
02 INTRODUCTION REV. 2025/01 As a distributor or end user of the products manufactured and/or distributed by Promeba, S.L., you are strictly obliged to know the legal provisions in force in the country of destination of the goods, applicable to the devices to be supplied (including the regulations relating to technical specifications and/or safety requirements) and, therefore, understand the necessary requirements to ensure compliance of the products themselves with all the legal requirements of the territory. -
Page 8: Intended Use
STRETCHER SERIE PC-900/7 family of products. 03.3. Physical requirements of the operators The Promeba manual stretchers serie PC-900/7 are intended exclusively for professional use. Each operator must be trained to transport patients safely and efficiently. Do not allow untrained persons to assist during use of the product, as they may cause injury to others, to patients or themselves. -
Page 9: Warnings
This register, which will certify the eligibility of the operators to use the Promeba, S.L. device, has to be kept for a period of 10 years after the disposal of the device itself. This register will be made available to the competent authorities and/or manufacturer if requested. - Page 10 22. As a distributor or end users of products manufactured and/or marketed by Promeba, S.L., you are strictly required to have a basic knowledge of any legal requirements existing in the goods final destination country applying to the devices...
-
Page 11: Specific Warnings
04.2. Specific warnings 1. Use only accessories/spare parts that are original or approved by Promeba, S.L. when performing any operation so as not to cause any alteration or modification to the device, otherwise we do not assume any responsibility for the correct operation or resulting damage of the device to the operator and the guarantee will be considered void. -
Page 12: Residual Risk
USER GUIDE STRETCHER SERIE PC-900/7 04 WARNINGS REV. 2025/01 16. Always use both hands to transport the stretcher to avoid the risk of tipping over. 17. Pay full attention to the team and the patients during the performance of the service. -
Page 13: Description Of The Product
USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 05.1. Main components PC9017-00000 AMBULANCE STRETCHER PC-901/7 PC9027-00000 AMBULANCE STRETCHER PC-902/7 PC9217-00000 AMBULANCE STRETCHER PC-921/7 PC9227-00000 AMBULANCE STRETCHER PC-922/7 Nº Nº DESCRIPTION OF THE COMPONENTS DESCRIPTION OF THE COMPONENTS Matress Red folding handle for front legs Belts... - Page 14 USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 PC9117-00000 AMBULANCE STRETCHER PC-911/7 PERFORMANCE PC9127-00000 AMBULANCE STRETCHER PC-912/7 PC9130-00000 AMBULANCE STRETCHER PC-913 Nº Nº DESCRIPTION OF THE COMPONENTS DESCRIPTION OF THE COMPONENTS Matress Red folding handle for front legs Belts Green folding handle for rear legs Front legs...
- Page 15 USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 PC9510-00000 AMBULANCE STRETCHER PC-951 FOWLER PC9520-00000 AMBULANCE STRETCHER PC-952 FOWLER Nº Nº DESCRIPTION OF THE COMPONENTS DESCRIPTION OF THE COMPONENTS Matress Red folding handle for front legs Belts Green folding handle for rear legs Front legs Telescopic handles...
-
Page 16: Technical Data Sheet
USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 05.2. Technical specifications / data sheet Models Length [mm] 1940 1940 1940 1940 1940 1940 1940 1940 1940 Width [mm] Height [mm] 1040 1080 1040 1040 1040 Weight [kg] 42,5 43,5 43,5... -
Page 17: Description Of The Components
USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 05.3. Main parts (accessories) PA5351-00000 LOCKING SET 3 POINTS PA-5351 Nº DESCRIPTION OF THE COMPONENTS Ergonomic handle to unlock the stretcher Non-slip textured adhesive Tube structure. Universal locking system... - Page 18 USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 PA5352-00000 LOCKING SET 3 POINTS PA-5352 Nº DESCRIPTION OF THE COMPONENTS Ergonomic handle to unlock the stretcher Non-slip textured adhesive Locking hooks...
- Page 19 USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 PA5500-00000 UNIVERSAL LOCKING SET PA-550 Nº DESCRIPTION OF THE COMPONENTS Tubular structure with handle and hooks Non-slip textured adhesive...
-
Page 20: Technical Data Sheet (Accessories)
USER GUIDE STRETCHER SERIE PC-900/7 05 DESCRIPTION OF THE PRODUCT REV. 2025/01 05.1. Technical specifications / data sheet (accessories) Models Length 245/455mm 250/115mm 1700mm Width 455mm 220/475mm 220/460mm Height 100mm 95mm 85mm Weight 12kg 10kg Max. Load 250kg 250kg 250kg PC-900 Suitable for Universal... -
Page 21: Operation
USER GUIDE STRETCHER SERIE PC-900/7 06 OPERATION REV. 2025/01 06.1. Transport and storage Before transporting the appliance, make sure that it is correctly packaged. During transport always fix the load. If piling up is necessary, always follow the scheme shown on figure 1. Transport the load levelled and following all precepts and rules for the load transportation, ensuring also that there are no risks of shocks,... - Page 22 REQUISITOS DEL VEHÍCULO The Promeba stretcher has been designed to enter and exit the patient to the compartment of the ambulance. The vehicle must have a levelled loading platform, wide and long enough for the Promeba stretcher and without obstacles.
-
Page 23: Functioning
In the event of any failure to conform to the above mentioned requirements you will be deemed fully responsible for all damages that might occur. In such cases, Promeba, S.L. will deny all responsibility for any malfunctions or injuries caused by the appliance itself;... -
Page 24: Lifting The Stretcher
USER GUIDE STRETCHER SERIE PC-900/7 06 OPERATION REV. 2025/01 1. Grab telescopic handles of the stretcher at the rear end (feet). 2. Lift the rear part (feet) of the stretcher, until the loading wheels touch the ground. (see photo aside) 3. -
Page 25: Intermediate Positions
INTERMEDIATE POSITIONS Promeba stretcher has been designed to be able to adopt different heights, making easy the transfer of the body and optimizing the loading procedures. The stretcher is capable of adopting 4 intermediate positions, in addition to the maximum height (completely open) and the minimum height (completely closed). - Page 26 USER GUIDE STRETCHER SERIE PC-900/7 06 OPERATION REV. 2025/01 1. Bring the stretcher to the place of operations and make sure the ground is stable and safe. 2. Two operators must be positioned to each edge of the stretcher 3. The operator positioned on the rear edge (feet) of the stretcher will lift it slightly and push the green handle (2) unlocking the rear legs.
- Page 27 USER GUIDE STRETCHER SERIE PC-900/7 06 OPERATION REV. 2025/01 Trendelemburg position (For all the models) The Trendelenburg movement allows the lifting of the board in order to higher the legs of the patient (see Figure 4). To put the board in Trendelenburg position: 1.
- Page 28 USER GUIDE STRETCHER SERIE PC-900/7 06 OPERATION REV. 2025/01 HANDRAILS In order to avoid accidental functioning, the handrails are designed to be opened with two hands. 1. Use one hand to unlock the positioner (see figure 6). 2. With the other hand pull the handrail down until it rotates up to 180º.
-
Page 29: Troubleshooting
USER GUIDE STRETCHER SERIE PC-900/7 06 OPERATION REV. 2025/01 QUICK LOCK SYSTEM (models PC-911/7, PC912/7, PC-913/7, PC-951 Y PC-952) El Sistema Quick Lock system permite bloquear y desbloquear las ruedas delanteras de la camilla desde la posición de mando, es decir, desde detrás. Cuando la maneta que se encuentra en la parte de detrás de la camilla, justo debajo de la litera está... -
Page 30: General Maintenance
USER GUIDE STRETCHER SERIE PC-900/7 07 GENERAL MAINTENANCE REV. 2025/01 07.1. Cleaning It is essential to keep the equipment clean to ensure proper use and durability of the set. Thorough cleaning should be carried out periodically, especially in areas exposed to dirt that can accumulate dirt such as corners or holes. -
Page 31: Maintenance Program
The repair or replacement of product components must necessarily be carried out by qualified personnel, that is, who have received training from the Manufacturer, Promeba S.L. and original spare parts should always be used. -
Page 32: Spare Parts
USER GUIDE STRETCHER SERIE PC-900/7 08 SPARE PARTS REV. 2025/01 To request a spare part, indicate: - Number and description of the set in which the necessary part is found (see table) - Point out the piece in the drawing, or the area where it is located. Following these instructions, our sales department will provide you with a detailed drawing of the assembly so that you can specify the reference of the required spare part. - Page 33 USER GUIDE STRETCHER SERIE PC-900/7 08 SPARE PARTS REV. 2025/01...
-
Page 34: Training Register
USER GUIDE STRETCHER SERIE PC-900/7 TRAINING REGISTER REV. 2025/01 The product must be used only by trained personnel, who have attended specific training for this device and not for similar products. Keep this document for at least 10 years after the end of the device's useful life. NAME OF THE NAME OF THE PLACE AND DATE... -
Page 35: Maintenance Register
USER GUIDE STRETCHER SERIE PC-900/7 MAINTENANCE REGISTER REV. 2025/01 Perform required maintenance as indicated by the manufacturer in this user manual. Keep this document for at least 10 years after the end of the device's useful life. SERVICE TYPE PERSON IN CHARGE OF (Maintenance / Check OPERATIONS CARRIED OUT THE SERVICE (Operator /... -
Page 36: Legal Notices
Changes are periodically added to the information herein; these changes will be incorporated in new editions of the publication. Promeba, S.L. reserves the right to make any modification or improvement in the products described in this publication if it is appropriate. ... -
Page 37: Product Warranty
Promeba, S.L. reserves the right not to offer previously tested. the free warranty service if the indicated iii. States or defects of the system in documents are not presented or if the... - Page 38 This clause refers to whether the loss or damage deterioration inoperability of the associated product due to defects or unavailability of Promeba, S.L., which has caused downtime, loss of user time or business interruption. In cases where the law prohibits or limits these liability exclusions, Promeba, S.L.
