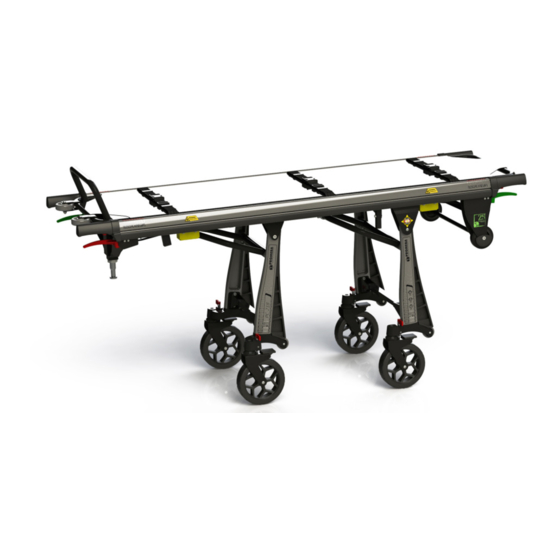

Promeba PC-218 User Manual

Stretcher
Hide thumbs

Advertisement

Quick Links

Download this manual

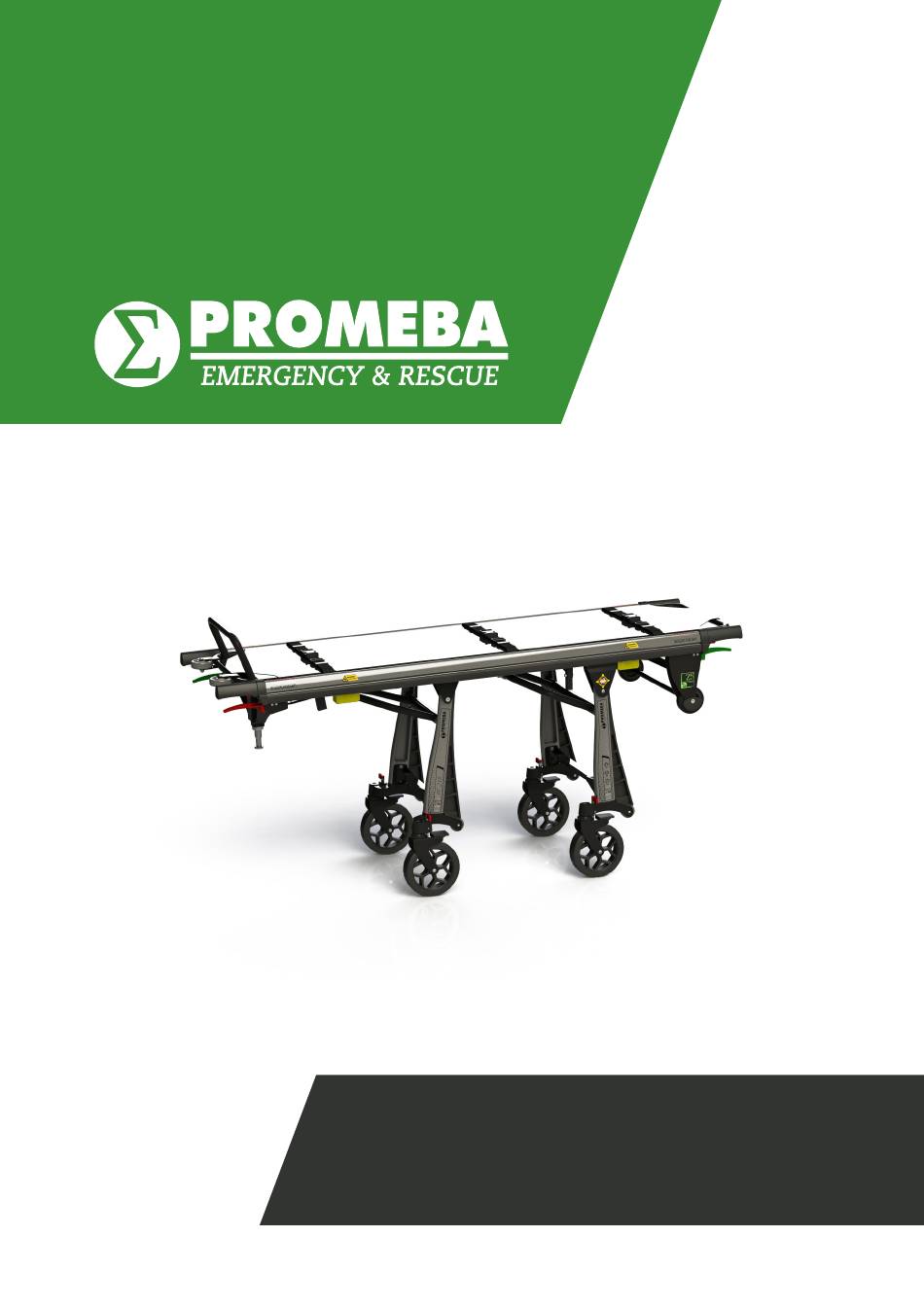

USER GUIDE
STRETCHER // PC-218
Review 12/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the PC-218 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promeba PC-218

Summary of Contents for Promeba PC-218

  • Page 1 USER GUIDE STRETCHER // PC-218 Review 12/18...
  • Page 3 04.3 Bunk set PC-218 04.4 Set guide rods PC-218 04.5 Telescopic hand grips PC-218 04.6 Standard rotating leg set with brake PC-218 04.7 Inverted rotating leg set with brake PC-218 GENERAL MAINTENANCE LEGAL NOTICES PRODUCT WARRANTY MODEL PC-218 STANDARD CONFIGURATION...
  • Page 5 USER MANUAL // STRETCHER PC-218 Review 12/18 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse.
  • Page 7 USER MANUAL // STRETCHER PC-218 Review 12/18 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PC-218 LENGHT 1920 mm INTERMEDIATE STOP 500-580 mm WIDTH 580 mm FOLDED HEIGHT 300-330 mm HEIGHT 800-880 mm MAX. LOAD 250 Kg WEIGHT 40 Kg...
  • Page 9 USER MANUAL // STRETCHER PC-218 Review 12/18 02 INSTALATION 02.1 Transporting and unpacking First remove the packaging carefully to prevent dama- ge to the exterior of the stretcher. 1. Transporting · Always fix the load, if piling up is necessary always follow the scheme shown.
  • Page 10 USER MANUAL // STRETCHER PC-218 Review 12/18 OPERATING 03.1 Elements PC-218 Wheels for vertical movement Rear leg operating lever Front leg operating lever Third anchor point Front rotating leg brake Rear rotating leg brake Front leg holding position operating lever...
  • Page 11 USER MANUAL // STRETCHER PC-218 Review 12/18 OPERATING 03.1 Elements PC-218...
  • Page 12 USER MANUAL // STRETCHER PC-218 Review 12/18 OPERATING 03.2 Commands PC-218 01. REAR LEGS UNLOCKING LEVER Green, located on the stretcher’s left side. The legs of the rear side will unlock by operating the lever in order to place the stretcher in loading and unloading position.
  • Page 13 USER MANUAL // STRETCHER PC-218 Review 12/18 OPERATING 03.3 Loading and unloading operation LOADING · Open the loading ramp of the bench/rail (A) · Place the stretcher head-on in relation to the loading axle of the bench (A) · Approach the stretcher until the front wheels have contact with the loading ramp (B) ·...
  • Page 15 USER MANUAL // STRETCHER PC-218 Review 12/18 OPERATING 03.4 Pushrod PC-218 To adjust the tension of the drive cables, the stretcher has three pushrod systems for its regulation: 1. HANDLE UNLOCKING BACK LEGS 2. HANDLE UNLOCKING FRONT LEGS 3. INTERMEDIATE STOP SHAFT...
  • Page 17 Bunk set PC-218 Pág. 20 Set stretcher PC-218 Pág. 18 Telescopic hand grips PC-218 Pág. 24 Set guide rods PC-218 Pág. 22 Inverted rotating leg set with brake PC-218 Pág. 28 Standard rotating leg set with brake PC-218 Pág. 26...
  • Page 18 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.2 Set stretcher PC-218...
  • Page 19 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.2 Bill of materials SET STRETCHER PC-218 NUM. ELEMENT CODE - DESCRIPTION UNITS 1.01 PC2180-00012 - PERFIL SUPERIOR CAMILLA FUNERAL 1.02 PC6500-03460 - SUBCONJUNT MANETES EXTENSIBLES 1.03 PC6170-03092 - SUBCONJUNT TRAVESSER DAVANTER 1.04...
  • Page 21 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.2 Bill of materials CONJUNTO CAMILLA PC-218 NUM. ELEMENT CODE - DESCRIPTION UNITS 1.33 PC2182-04000 - CONJUNT POTA GIRATORIA BLOQUEJABLE AMB FRE FUNERAL 1.34 TAP-PLASTØ20 - TAPON PLASTICO FINAL Ø20 - Mod. 17-20 1.35...
  • Page 22 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.3 Bunk set PC-218...
  • Page 23 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.3 Bill of materials BUNK SET PC-218 NUM. ELEMENT CODE - DESCRIPTION UNITS 2.01 PC2180-02002 - SUBCONJUNT LLITERA CAMILLA FUNERAL 2.02 40011 - RUEDA CON EJE DE BOLAS Ø75x24MM 2.03 TAP-PLASTØ25 - TAPON PLASTICO FINAL Ø25 - Mod.
  • Page 24 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.4 Set guide rods PC-218...
  • Page 25 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.4 Bill of materials SET GUIDE RODS PC-218 NUM. ELEMENT CODE - DESCRIPTION UNITS 3.01 PC6180-01012 - SUBCONJUNT GUIA VARILLES CAMILLA 3.02 PC6500-03040 - PATI GUIA 3.03 PC6500-03031 - EIX GUIA 3.04...
  • Page 26 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.5 Telescopic hand grips PC-218...
  • Page 27 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.5 Bill of materials TELESCOPIC HAND GRIPS PC-218 NUM. ELEMENT CODE - DESCRIPTION UNITS 4.01 PC6500-03310 - PERFIL MANETES EXTENSIBLES 4.02 PC6500-03320 - MANETA 4.03 PC6500-03340 - PALANCA BLOQUEJADORA 4.04 PC6500-03470 - CASQUELL MANETES EXTENSIBLES 4.05...
  • Page 28 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.6 Standard rotating leg set with brake PC-218...
  • Page 29 PC2180-03012 - POTA UNIBODY GIRATORIA CAMILLA DRETA FUNERAL 5.02 PC2180-03022 - POTA UNIBODY GIRATORIA CAMILLA ESQUERRA FUNERAL 5.03 PS2500-07000 - Conjunt roda PROMEBA PERFORMANCE 200x45mm 5.04 PC6500-01311 - CASQUELL BLOQUEIG RODA POSTERIOR 5.05 PC6500-01321 - BALDA BLOQUEIG RODA POSTERIOR 5.06 PC6500-01340 - MOLLA BLOQUEJADOR POTA 5.07...
  • Page 30 USER MANUAL // STRETCHER PC-218 Review 12/18 MOUNTING AND COMPONENTS 04.7 Inverted rotating leg set with brake PC-218...
  • Page 31 UNITS 6.01 PC2180-03012 - POTA UNIBODY GIRATORIA CAMILLA DRETA FUNERAL 6.02 PC6501-01080 - PATI RODA DAVANTER ALT 6.03 PS2500-07000 - CONJUNT RODA PROMEBA PERFORMANCE 200x45mm 6.04 PC6275-01022 - SUPORT RODA DAVANTERA AMB BLOQUEIG 6.05 PC6500-01311 - CASQUELL BLOQUEIG RODA POSTERIOR 6.06...

  • Page 32: General Maintenance

    USER MANUAL // STRETCHER PC-218 Review 12/18 GENERAL MAINTENANCE CLEANING WEAR AREAS It is essential to keep the equipment clean to ensure a Inspecting regularly on the system compo-nents for proper use and durability of the set. A thorough clean...

  • Page 33: Legal Notices

    Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make, if considered appropiate, any modification or improvement to the products described in this publication.

  • Page 34: Product Warranty

    Promeba, S.L. is not liable for loss or damages to pro- C. Damages or defects resulting from the use, operation ducts, this warranty or others, including economic loss or improper treatment of the product and not caused by or not assessable damage;...
  • Page 36 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN ER-0687/1998 T.
