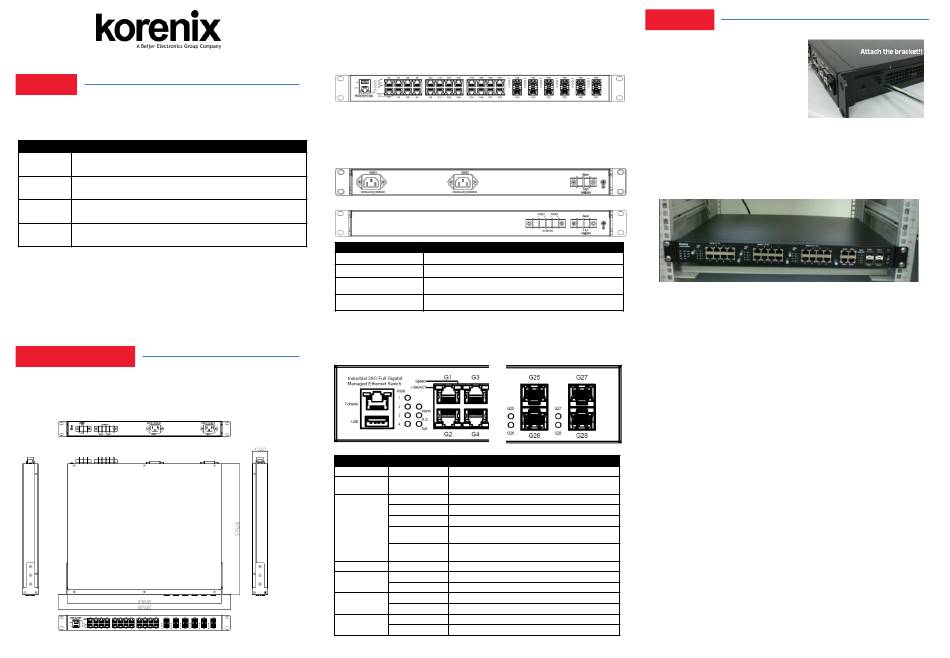

Korenix JetNet 6528Gf-AC Quick Installation Manual

JetNet 6528Gf Series Industrial 28G Full Gigabit Managed Ethernet Switch
Quick Installation Guide V1.0

Overview

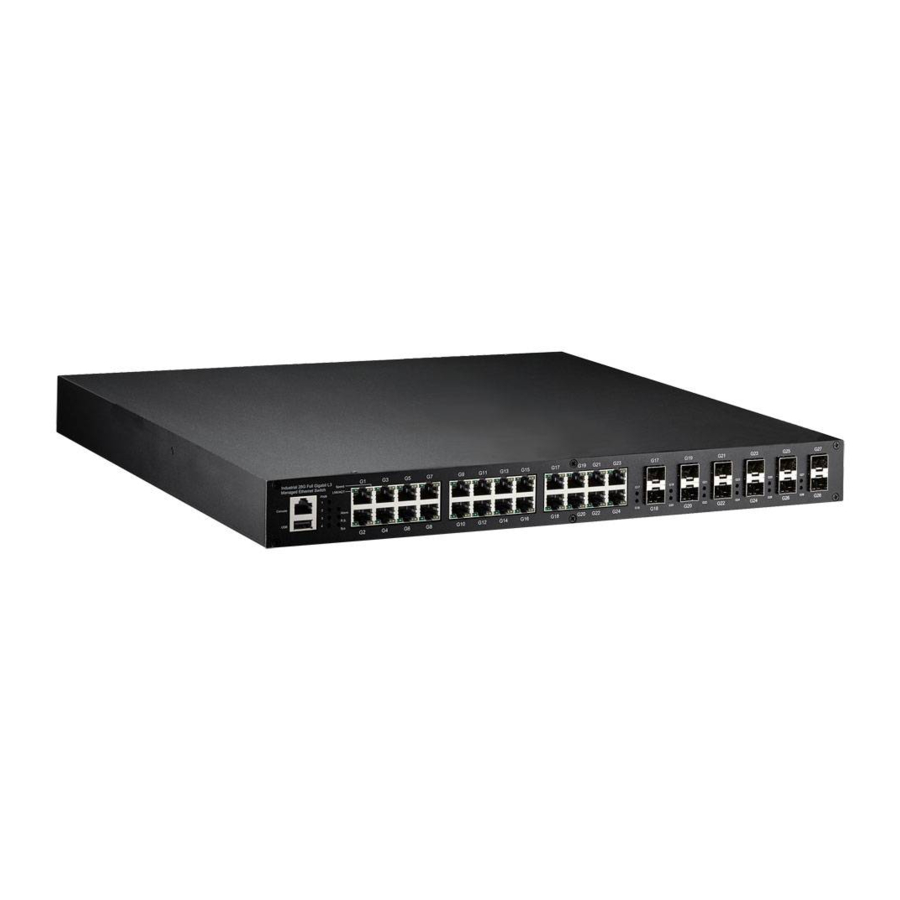

The JetNet 6528Gf Series is a 19-inch Industrial 28G Full Gigabit Managed
Ethernet Switch equipped with 24 100/1000TX, 8 100/1000 RJ-45/SFP
combo ports, 4 GbE SFP ports.
Model Name Description
JetNet 6528Gf- 24 100/1000TX, 8 100/1000 RJ-45/SFP combo ports, 4 GbE SFP ports,
AC Ind. full Gigabit Managed Ethernet Switch, -40~75°C, AC power
JetNet 6528Gf- 24 100/1000TX, 8 100/1000 RJ-45/SFP combo ports, 4 GbE SFP ports,
2AC Ind. full Gigabit Managed Ethernet Switch, -40~75°C, dual AC power
JetNet 6528Gf- 24 100/1000TX, 8 100/1000 RJ-45/SFP combo ports, 4 GbE SFP ports,
AC-DC24 Ind. full Gigabit Managed Ethernet Switch, -40~75°C, AC and DC power
JetNet 6528Gf- 24 100/1000TX, 8 100/1000 RJ-45/SFP combo ports, 4 GbE SFP ports,
2DC24 Ind. full Gigabit Managed Ethernet Switch, -40~75°C, dual DC power

Package Check List


The Rack Mount Managed Ethernet Switch

Console cable

Rack Mount kit

Power Cord (Depend on Country, JetNet 6528Gf-2DC24 no Power Cord)

QIG
Interface Introduction
Dimension
JetNet 6528Gf Industrial 28G Full Gigabit Managed Ethernet Switch
dimension (W x H x D) is 44mm(H) x 438mm (W) x 375mm (D). ble.

Front-Panel Components

The front panel includes RJ-45 based RS-232 Console Port, USB port, System
& Port LEDs, Gigabit Ethernet Port Interfaces and Gigabit Combo Port
Interfaces.

Back-Panel Components

The back panel of the JetNet 6528Gf Industrial 28G Full Gigabit Managed
Ethernet Switch consists of AC power input, DC power Input and Relay
Output depend on different Model.
JetNet 6528Gf-2AC:
JetNet 6528Gf-2DC24:
Model Name Back-Panel Components
JetNet 6528Gf-AC 1 AC power Inputs and 1 Relay Output.
JetNet 6528Gf-2AC 2 AC power Inputs and 1 Relay Output.
JetNet 6528Gf-AC-DC24 1 AC power inputs, 1 DC power Inputs and 1 Relay Output.
JetNet 6528Gf-2DC24 2 DC power inputs and 1 Relay Output.

LED Indicators

LED Color
Green Power (AC1, AC2, DC1, DC2) on
PWR
Power failure, port failure, ping failure, login
Red
Alarm
failure, RSR topology change
Lit Green MSR in Normal State
Lit Yellow MSR in Abnormal State
Not Lit MSR function not active
R.S.
Incorrect configuration of MSR, ex. ring not
Flashes Green
connected to ring port
Flashes The break has been detected to be local to one
Yellow of the ports
Green System on
Sys
Lit Green 10/100/1000 RJ-45 Link
G1-G24 Copper
LNK/ACT 10/100/1000 RJ-45 Activity
Flashes Green
Yellow on 1000Mbps
G1-G24 Copper
Speed 10/100Mbps
Yellow off
Lit Green Link
G17-G28 SFP
LNK/ACT
Flashes Green Activity

Installation

Mount the Switch to 19'' rack
1. Attach the brackets to the device by using
the screws provided in the Rack Mount kit.
2. Mount the device in the 19' rack by using
four rack-mounting screws provided by the
rack manufacturer.
3. When installing multiple switches, mount
them in the rack one below the other.
Note: Check if the rack environment temperature conforms to the specified
operating temperature range. Do not place any equipment on top of the switch
and please properly grounded

Power the unit and connect to network Cable

AC Power Input : connect the attached power cord to the AC power input
connector, the available AC power input is range from 90-264VAC.
DC Power Input: the suggested power input is 24VDC, the available range is
from 18-36VDC.
Follow below steps to wire JetNet 6528Gf redundant DC power inputs.
1. Insert positive and negative wires into V+ and V- contacts respectively of
the terminal block connector.
2. Tighten the wire-clamp screws to prevent DC wires from being loosened.
Function
3. DC1 and DC2 support polarity reverse protection functions.

Wiring Digital Output

JetNet 6528Gf series provides 1 digital output, also known as Relay Output.
The relay contacts are energized (open) for normal operation and will close for
fault conditions. The fault conditions include power failure, Ethernet port link
break or other pre-defined events which can be configured in JetNet 6528Gf
UI.

Wiring Earth Ground

To ensure the system will not be damaged by noise or any electrical shock, we
suggest you to make exact connection with JetNet 6528Gf with Earth Ground.
For AC input, the 3 pin include V+, V- and GND. The GND pin must be
connected to the earth ground.
For DC input, loosen the earth ground screw by screw drive; then tighten the
screw after earth ground wire is connected.
