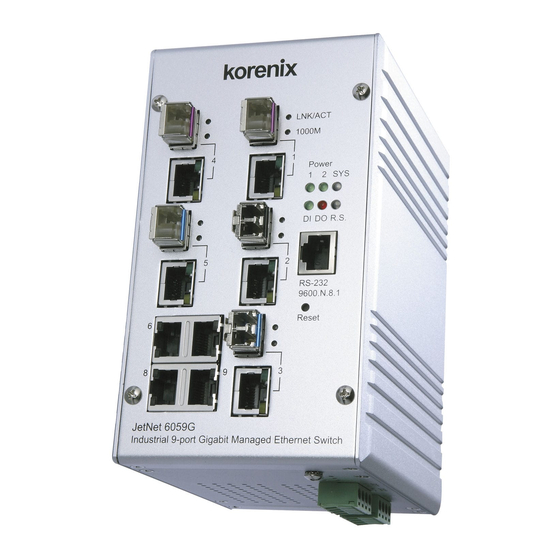

Introduction JetNet 6059G series is an Industrial Gigabit Managed Ethernet Switch with 9 full gigabit ports and 32G switching backplane to ensure high quality data transmission in industrial applications requiring high-bandwidth connectivity. In addition to 4 Giga RJ-45 ports, the switch is equipped with 5 Giga RJ-45/SFP combo ports to deliver maximum throughput and flexibility for high-density connection while providing Giga uplink or Giga Ring connection.
Grounding JetNet 6059G There is one grounding screw on the bottom side of JetNet 6059G. Connect the frame grounding of JetNet 6059G to the grounding surface to ensure safety and prevent noise to interfere communication. Wiring the Power Inputs 1. Insert the positive and negative wires into the V+ and V- contact on the terminal block connector.
DI. Connecting to Network 1. Connecting the Ethernet Port: Connect the Ethernet port of JetNet 6059G with the other Ethernet device by Cat-5/Cat-6 UTP or STP cable, and then the LNK/ACT LED will turn on and start flashing to indicate the communication is occurred between 2 devices.
Choose the COM name and select the correct serial settings. The serial port settings of JetNet 6059G are as below: 9600bps, No parity check, 8 Data bits, 1 stop bit After connected, you will see the Switch login request. Type the username and password then you can login.
Page 6
For more operating instructions, please refer to the User’s manual of JetNet 6059G included in the packing or downloadable from the Korenix Website – www.korenix.com. Korenix Customer Service KoreCARE is Korenix Technology’s global service center, where our professional staffs are...
Page 12
4 Prioritäts-Warteschlangen pro Port, 256 VLANs, IGMP Snooping, DHCP, LACP, um Hochleistungs-Netzkommunikation sicherzustellen. Der JetNet 6059G ist NEMA - TS2 / Maritime, Bahnstandards konform und hat eine Dual redundante 10.5 bis 60 VDC Speisung. Er hat ausserdem einen sehr hohen Betriebstemperatur-Bereich von -40 bis 75°C und arbeitet äusserst zuverlässig in...
Page 13
DIN Schiene Befestigung DIN-Schiene Befestigung: Befestigen Sie den DIN-Schiene Clip an der Rückseite des JetNet 6059G um diesen anschließend auf der DIN-Schiene zu befestigen. Für zusätzliche Information über die DIN-Schieneninstallation, beziehen Sie sich bitte auf das Benutzerhandbuch. Erdung von JetNet 6059G Es gibt eine Erdenschraube an der unteren Seite des JetNet 6059G.
Page 14
Verdrahten Relay Output (DO) Die Relaisausgangs-Kontakte sind auf der unteren Seite wie auf Bild 3. abgebildet. Der Relaisausgang (DO), wird durch die vorbestimmten Betriebs-Einstellungen gesteuert. Um die Relaisausgangsfunktion zu aktivieren, beziehen Sie sich bitte auf das Benützerhandbuch. Anmerkung: Der Relaiskontakt ist nur für 1A Strom ausgelegt, 24 VDC.
Page 15
"managen". Hierbei können Telnet / SSH, Web / HTTPS Management auswählen. 1. Vorbereitung für Konsolenmanagement: Verbinden Sie den RS-232 DB9 Stecker am JetNet 6059G Switch mit dem COM-Port Ihres Computer. Starten Sie - > Program - > Accessories - > Communication - > Hyper Terminal. Geben Sie dem neuen Konsolenanschluss einen Namen.
Page 16
2. Vorbereitung für Netzmanagement: Bevor Sie die Embedded Web-Schnittstelle initialisieren, überprüfen Sie ob der JetNet 6059G richtig am Netz angeschlossen ist und ob jeder PC in diesem Netzwerk über den Web-Browser auf den JetNet 6059G zugreifen kann. Starten Sie den Web-Browser (Internet Explorer oder Mozilla Firefox) auf dem PC, tippen Sie http://6059G_IP_Address (Default IP Adresse ist 192.168.10.1.) und betätigen Sie die...
Page 17
KORENIX, l’utilisateur peut faire de 4 anneaux Multi Gigabits un agrégat sur un seul switch et assurer ainsi la fiabilité du réseau. De plus, le JetNet 6059G propose des caractéristiques étendues de management et de sécurité, comme LLDP et JetViewPro, 4 queues prioritaires par port, 256 VLANs, IGMP Snooping, DHCP, LACP.Le JetNet 6059G...
Page 18
Mise à la terre du JetNet 6059G Une vis de mise à la terre est présente sous le JetNet 6059G. Assurer vous de connecter proprement la terre au JetNet 6059G pour assurer la sécurité et prévenir les risqué d’interférences radioélectriques.
Page 19
Connexion au Réseau ETHERNET 1. Connecter les ports Ethernet: Connecter les ports Ethernet JetNet 6059G aux autres dispositifs Ethernet du réseau grace à des cables Cat-5/Cat-6 UTP ou STP, la LED LNK/ ACT s’allumera et commencera à clignoter pour indiquer la connexion.
Page 20
HTTPS. 1. Preparation pour management par console: Connecter le connecteur DB-9 RS-232 DB9 au port série de votre PC, et connecter le connecteur RJ-45 au port console du JetNet 6059G Sous Windows, aller dans Démarrer -> Programmes -> Accessoires -> Communication ->...
Page 21
La colonne de gauche de l’écran de l’interface Web représente les caractérisques du logiciel,, avec les possibilités de choix. Pour plus d’information sur les modes opératoires, referrer vous au manuel utilisateur inclu dans la boite, ou téléchargeable depuis le site Web Korenix :–...
LLDP y JetViewPro, 4 colas de prioridad por puerto, 256 VLANs, IGMP Snooping, DHCP, LACP, para asegurar así altas prestaciones en la comunicación en red. El JetNet 6059G cumple con la norma NEMA -TS2 /Marítima, estándares de Ferrocarril, y posee entrada de alimentación doble redundante de 10.5~60VDC y un amplio rango de temperatura de operación de -40~75...
Page 23
Conexión a Tierra del JetNet 6059G Hay un tornillo de conexión a tierra en la parte inferior del JetNet 6059G. Conecte ahí la toma de tierra para asegurar la seguridad y prevención de ruido e interferencias en la comunicación. Cableado de las Entradas de Alimentación 1.
DI. Conexión a la Red 1. Conexión de los Puertos Ethernet: Conecte cada puerto Ethernet del JetNet 6059G con el dispositivo Ethernet de campo que corresponda,kachenjunja mediante cable Cat-5/ Cat-6 UTP o STP, y el LED LNK/ACT LED se encenderá...
Page 25
1. Preparación para gestión por Consola: Enchufe el conector RS-232 DB9 al puerto COM de su PC. Conecte así mismo el extremo RJ-45 al puerto de consola del JetNet 6059G Vaya a Inicio -> Programas -> Accesorios -> Comunicaciones -> Hyper Terminal Dele un nombre a la nueva conexión de consola.
Page 26
Para instrucciones detalladas, por favor acuda al manual de Usuario del JetNet 6059G que ha de estar incluido en la caja o bien descárguelo en formato digital desde www.korenix.com.
Введение Серия коммутаторов JetNet 6059G – это промышленные гигабитные управляемые к омм утаторы с 9 гигабитными портами. Комм утатор спос обен обеспечить максимальную пропускную способность до 32G для обеспечения высококачественной передачи данных для решения задач, требующих каналов с высокой пропускной...
на DIN-рейку, используйте руководство пользователя. Заземление JetNet 6059G На нижней стороне устройства JetNet 6059G н а ход и тс я в и н т к р е п л е н и я з азе м л е н и я .
Page 29
Подключение дискретного выхода (DO) Контакты реле (дискретный выход) расположены на нижней стороне устройства, как показано на рисунке 3. Выход реле управляется с помощью конфигурируемых правил. Для включения функции дискретного выхода обратитесь к соответствующему разделу руководства пользователя. Внимание: Допустимая нагрузка реле – 1 А, 24В DC. Запрещается...
Избегайте попадания под луч лазера/ светодиода. Рисунок 5 Управление устройством Коммутатор JetNet 6059G можеть быть настроен как локально, так и удаленно. Вы можете сконфигурировать устройство локально при помощи консоли RS232 (консольный кабель поставляется вместе с устройством) или удаленно через сеть, используя Telnet/SSH и Web/HTTPS.
Page 31
2. Подготовка управления через Web: Прежде чем использовать встроенный Web- интерфейс для настройки функций коммутатора, проверьте, что коммутатор JetNet правильно подключен к сети и каждый компьютер сети имеет доступ к коммутатору через Web-браузер. Запустите Web-браузер (Internet Explorer или Mozilla Firefox) на компьютере.
Page 32
